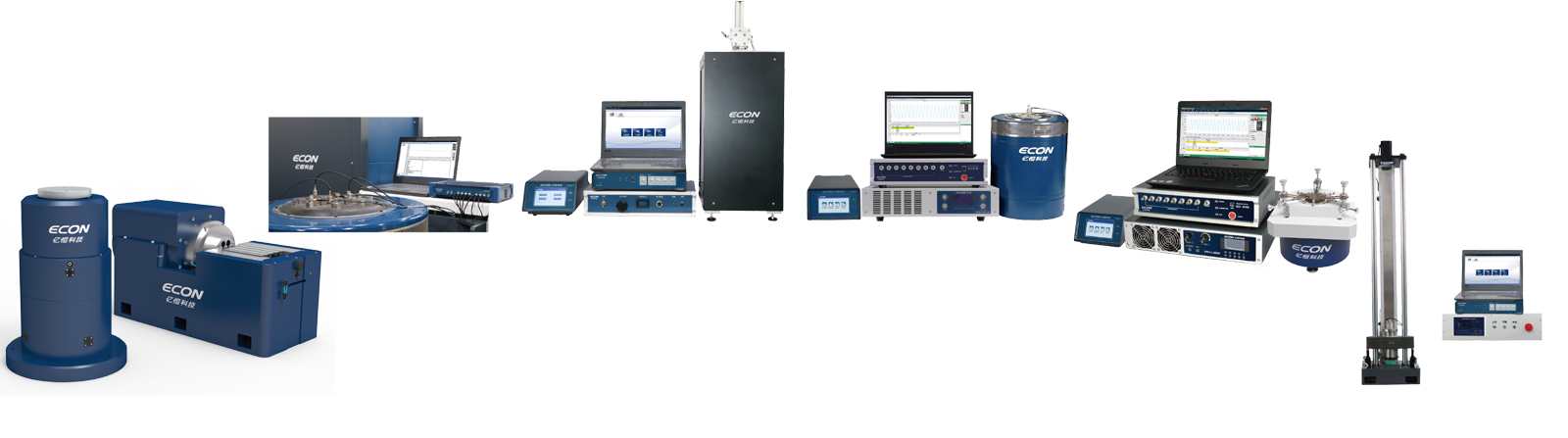

ECON Vibration Transducer Intelligent Calibration System | ECS
One-Stop • Intelligent Calibration • Total Solution
Available models include ECS-1815, ECS-1816, ECS-1812, ECS-1813.
The ECON Vibration Transducer Intelligent Calibration System is an easy-to-use and intelligent calibration system with high precision, excellent stability, and full traceability.
The system is capable of obtaining key parameters of vibration and shock transducers, such as sensitivity, amplitude linearity, and frequency response, enabling intelligent calibration of vibration and shock transducers.
1 High Precision and Traceability
- Compliant with ISO standards
- System frequency response correction calibration
- Compensation for frequency response errors of reference transducers
- Traceable to upper-level reference standards
- Reduced calibration uncertainty and high-precision calibration results
2 Compatibility
- Compatible with a wide range of vibration transducers, including:
- Charge type
- IEPE
- Piezoresistive
- Variable capacitance
- Servo type
- Voltage output type
- Electrodynamic (velocity coil) transducers
3 Intelligent and Efficient
- Automatic calibration with closed-loop control
- Intelligent parameter configuration
- Automatic calculation of calibration results
- One-click generation of calibration reports
- High-precision and efficient calibration process
4 Flexible Configuration
- Random excitation
- Sine excitation
- Swept-sine excitation
Model & Varian
| Model | Frequency Range | Maximum Payload |
|---|---|---|
| ECS-1815 | 10 Hz – 5,000 Hz | ≤ 2 kg |
| ECS-1816 | 5 Hz – 20,000 Hz | ≤ 0.5 kg |
| ECS-1812 | 0.1 Hz – 200 Hz | ≤ 10 kg |
| ECS-1813 | 0.002 Hz – 200 Hz | ≤ 10 kg |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Frequency Range | 0.002 to 20,000 Hz |
|---|---|
| Maximum Payload | 0.5 to 10 kg |
| Note | The following specifications are typical. Actual performance depends on the exciter, transducers, and system configuration used. |
| Voltage | ≤ 10 V PEAK |
| Charge | ≤ 10⁶ pC PEAK |
| Calibration frequency range | 0.1 Hz to 20 kHz |
