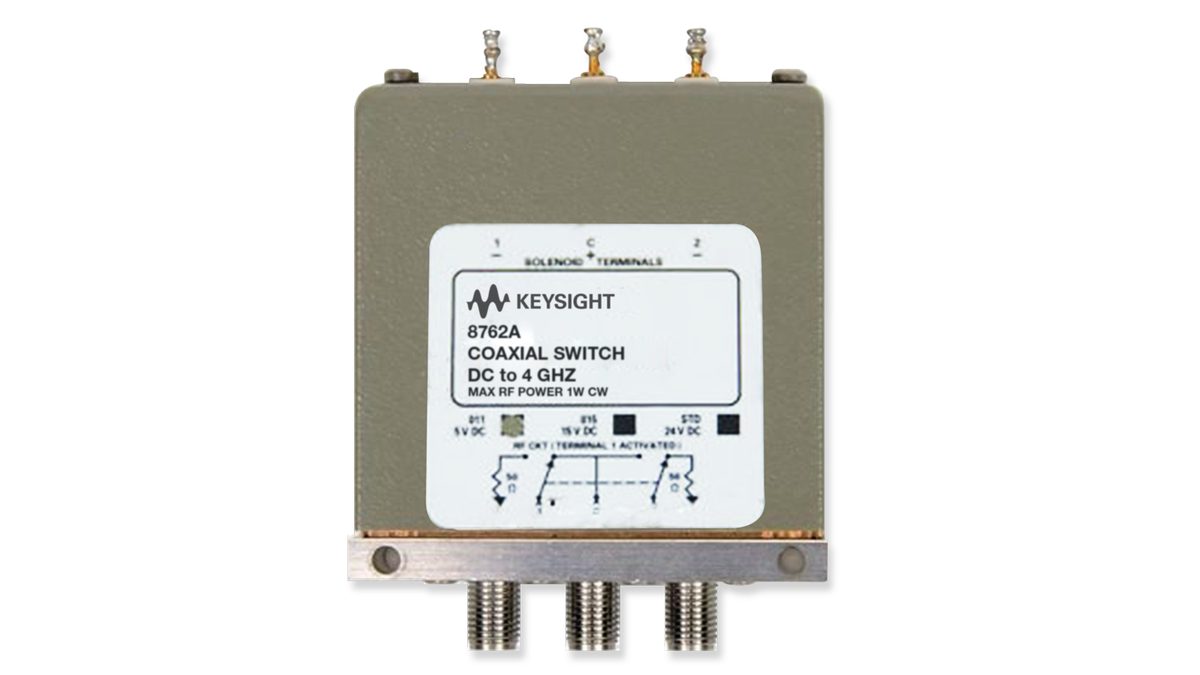

Keysight Coaxial Switch | Switch Koaksial RF
Offers excellent performance with the broadband operation, high isolation, low SWR, long life, and exceptional repeatability.
Available models include 8762A, 8763A, 8764A, 8765A.
Offers excellent performance with the broadband operation, high isolation, low SWR, long life, and exceptional repeatability.
Superior RF Performance
- Isolation: > 100 dB to 4 GHz
- Insertion loss: < 0.2 dB to 2 GHz, < 0.25 dB to 4 GHz
Features
The Keysight 8762A offers excellent electrical and mechanical performance with the broadband operation, high isolation, low SWR, long life, and exceptional repeatability.
Model & Varian
| Model | Configuration | Frequency range |
|---|---|---|
| 8762A | SPDT coaxial switch | DC to 4 GHz |
| 8763A | 4-port coaxial switch | DC to 4 GHz |
| 8764A | 5-port coaxial switch | DC to 4 GHz |
| 8765A | SPDT coaxial switch | DC to 20 GHz |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Variant count | 4 models |
|---|---|
| Isolation | > 100 dB to 4 GHz |
| Insertion loss | < 0.2 dB to 2 GHz, < 0.25 dB to 4 GHz |
