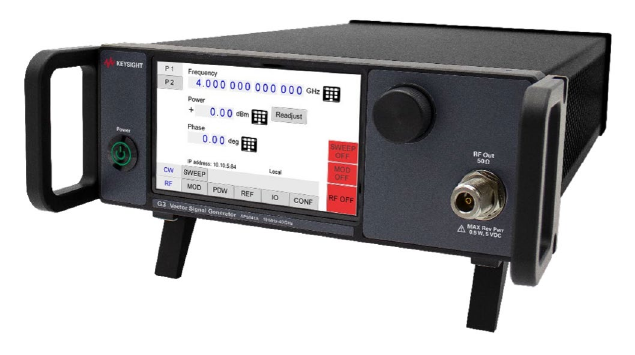

Keysight AP5041A G3 Vector Signal Generator 100 kHz–40 GHz | Generator Sinyal Vektor
G3 vector signal generator single-channel dengan internal I/Q modulator, frequency range 100 kHz sampai 40 GHz, dan RF transition time sampai 2 µs pada konfigurasi tertentu.
Available models include AP5041A, AP5042A.
Keysight AP5041A adalah G3 vector signal generator single-channel untuk pengujian RF dan microwave yang membutuhkan signal purity, fast switching, dan internal I/Q modulation. Frequency option tersedia dari 100 kHz sampai 4, 6, 12, 20, atau 40 GHz.
Instrumen ini menyediakan phase-coherent switching melalui Option PHS, internal baseband generator dengan sample rate 1 Hz sampai 500 MHz, serta arbitrary waveform memory sampai 512 MSa tanpa marker. AP5041A dapat dikendalikan melalui SCPI atau PC software untuk automated test dan karakterisasi sinyal.
Kemampuan utama:
- Single-channel vector signal generation dengan internal I/Q modulator
- Frequency range 100 kHz sampai 40 GHz, bergantung pada frequency option
- Phase-coherent switching dengan Option PHS dan 6 GHz high-performance reference melalui Option SNC
- Internal baseband generator 16-bit, sample rate 1 Hz sampai 500 MHz
- Arbitrary waveform memory sampai 512 MSa tanpa marker atau 334 MSa dengan marker aktif
- RF transition time terukur 2,0 µs pada Option 504 dan sampai 5,1 µs pada Option 540
Model & Varian
| Model | Channels | CW frequency range | I/Q sample rate | Form factor |
|---|---|---|---|---|
| AP5041A | 1 | 100 kHz to 4 / 6 / 12 / 20 / 40 GHz | 1 Hz to 500 MHz | Benchtop |
| AP5042A | 1, 2, 3, or 4 independent and phase coherent | 100 kHz to 4 / 6 / 12 / 20 / 40 GHz | 1 Hz to 500 MHz | 2U rackmount |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Channel count | 1 |
|---|---|
| CW frequency range | 100 kHz to 4 / 6 / 12 / 20 / 40 GHz (frequency option dependent) |
| Settable CW frequency range | 100 kHz to 4.15 / 6.6 / 12 / 20 / 43.5 GHz (option dependent) |
| Frequency resolution | 0.001 Hz |
| Internal I/Q sample rate | 1 Hz to 500 MHz |
| I/Q file resolution | 16 bits |
| Maximum RF (I + Q) bandwidth | 400 MHz (nominal) |
| Arbitrary waveform memory | 512 MSa without marker; 334 MSa with marker |
| Phase offset range | 0° to 360° |
| Phase offset resolution | 0.01° |
| RF transition time | 2.0 µs to 5.1 µs (configuration dependent) |
| RF output connector | Type-N, 2.92 mm, or connector option dependent |
| Dimensions | 96.8 mm H × 224 mm W × 391.3–393.4 mm L (without front handles) |
| Weight | < 6.5 kg (Option 504); < 7.5 kg (Options 506/512/520/540) |
| Opsi | |
| Option 504 | CW frequency range 100 kHz to 4 GHz |
| Option 506 | CW frequency range 100 kHz to 6 GHz |
| Option 512 | CW frequency range 100 kHz to 12 GHz |
| Option 520 | CW frequency range 100 kHz to 20 GHz |
| Option 540 | CW frequency range 100 kHz to 40 GHz |
| Option PHS | Phase-coherent switching |
| Option PCM | Phase-calibratable mode, supported to 20 GHz |
| Option SNC | 6 GHz high-performance reference input/output |
| Option FCP | Fast Control Port for I/Q data and PDW streaming |
| Option PMR | Pulse modulation |
| Option PDW | Pulse Descriptor Words |
| Option 302 | Avionics modulation, AP5041A only |
