Keysight Power Splitter | Power Splitter RF
Provides excellent output SWR at the auxiliary arm when used for source leveling or ratio measurement applications.
Available models include 11667A, 11667B, 11667C.
Provides excellent output SWR at the auxiliary arm when used for source leveling or ratio measurement applications.
Superior RF performance

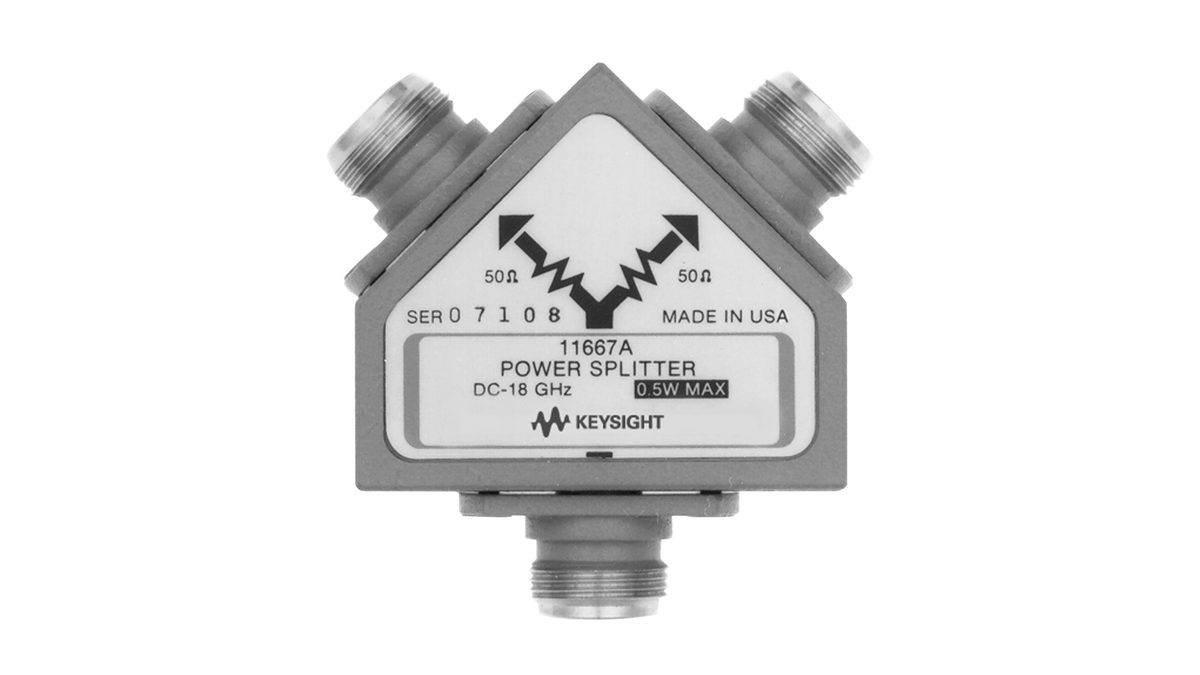

The Keysight 11667A power splitter is recommended when making wideband ratio measurements using a Keysight 8757 scalar network analyzer. This two-resistor type power splitter provides excellent output SWR at the auxiliary arm when used for source leveling or ratio measurement applications. The tracking between output arms over a frequency range from dc to 18 GHz allows wideband measurements to be made with a minimum of uncertainty.
- Equivalent output SWR: 1.33
- Maximum input power: 0.5 W
- Insertion loss: 7 dB
- Tracking between any two ports: 0.20 dB to 8 GHz
Model & Varian
| Model | Type | Frequency range |
|---|---|---|
| 11667A | Power splitter | DC to 18 GHz |
| 11667B | Power splitter | DC to 26.5 GHz |
| 11667C | Power splitter | DC to 50 GHz |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Variant count | 3 models |
|---|---|
| Equivalent output SWR | 1.33 |
| Maximum input power | 0.5 W |
| Insertion loss | 7 dB |
| Tracking between any two ports | 0.20 dB to 8 GHz |
