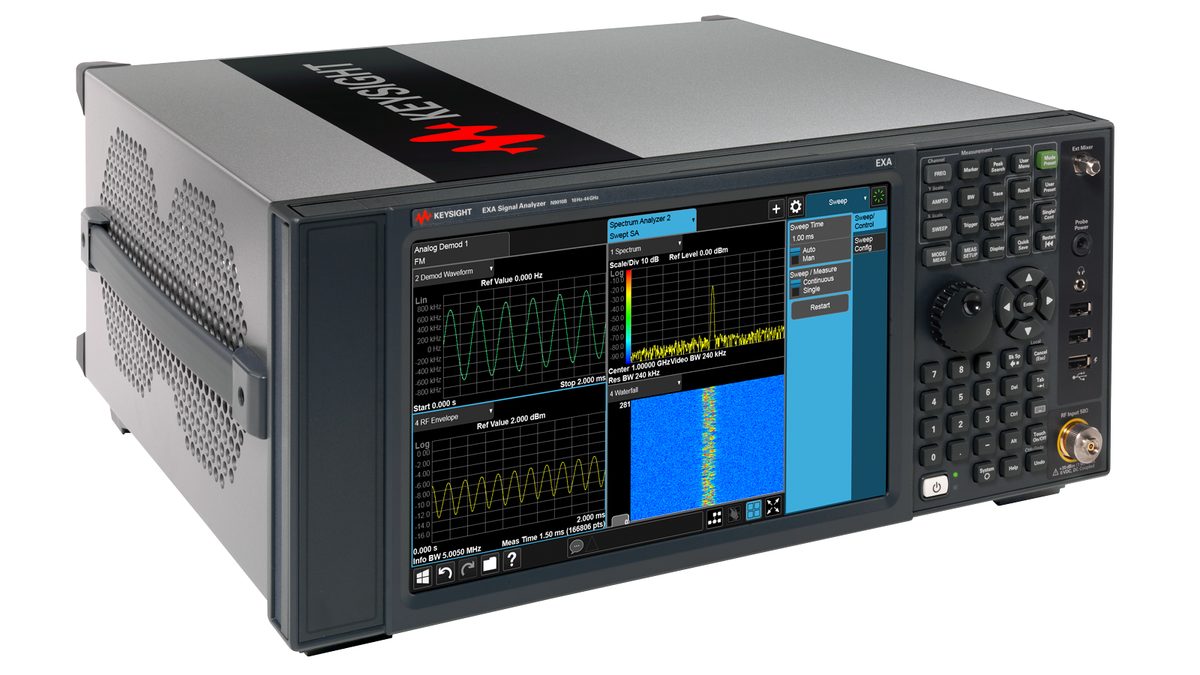

Keysight N9010B EXA Signal Analyzer, 10 Hz–44 GHz | Analyzer Sinyal RF
The N9010B EXA signal analyzer provides cost-effective signal analysis for mmWave testing and design with a wide bandwidth range up to 40 MHz frequency.
The N9010B EXA signal analyzer provides cost-effective signal analysis for mmWave testing and design with a wide bandwidth range up to 40 MHz frequency.
Fast, Flexible General-Purpose Signal Analysis up to 44 GHz Frequency
When enhancing a product and improving test throughput, your general-purpose signal analyzer should be ready for a wide bandwidth range of challenging requirements. The fast, flexible N9010B EXA Signal Analyzer addresses diverse needs with a solid mix of speed and performance and the versatility of PathWave X-Series measurement applications.
- See more with a wide bandwidth range of 10 Hz to 44 GHz with up to 40 MHz frequency
- Save test time in your spurious response measurements with the fast sweep capability
- Get the most cost-effective signal analysis for mmWave testing
- Measure small signals in the presence of large ones with level accuracy, displayed average noise level (DANL), and third order intermodulation (TOI) distortion
- Perform power measurements quickly at discrete frequency points with list-sweep mode
- Simplify testing with PathWave X-Series measurement applications
Spesifikasi
| Model | N9010B |
|---|---|
| Product Type | Essential Signal Analyzer |
| Maximum frequency | 44 GHz |
| Maximum analysis bandwidth | 40 MHz |
| DANL @1 GHz | -165 dBm |
| Phase noise @1 GHz (10 kHz offset) | -109 dBc/Hz |
| Real Time Spectrum Analysis | No |
Unduhan & Sumber
Butuh konsultasi teknis?
Kirim kebutuhan pengujian Anda — tim Terastek membantu menentukan konfigurasi yang sesuai.
