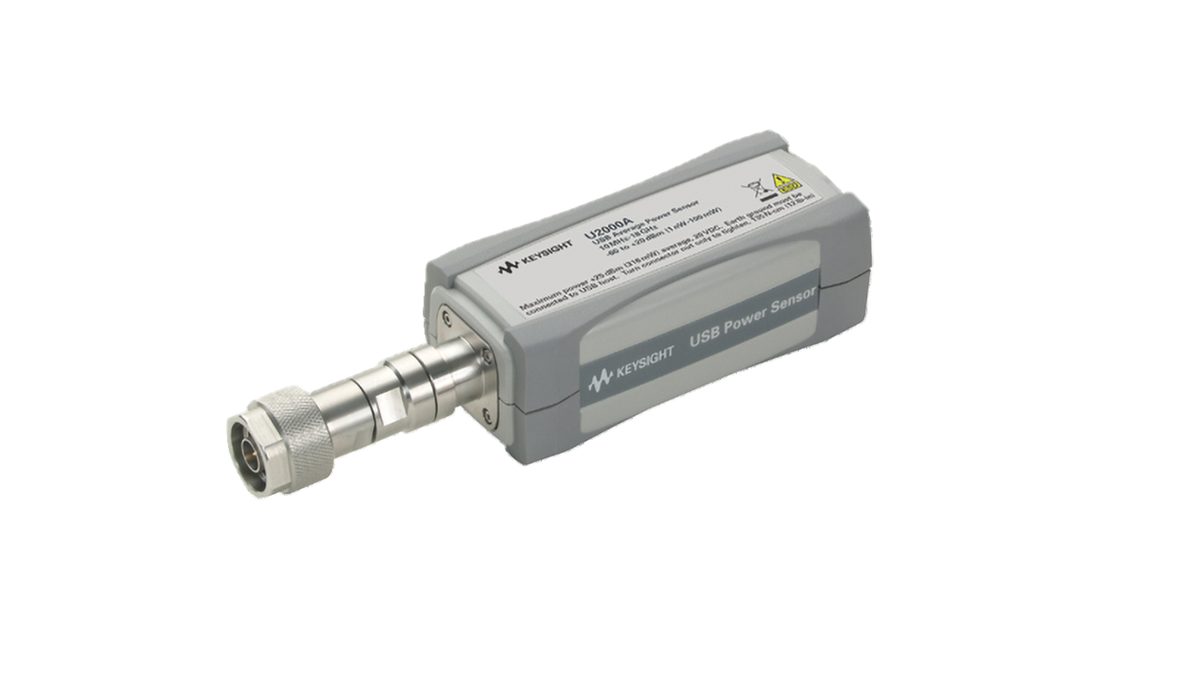

Keysight U2000A USB/LAN Power Sensors | Sensor Daya USB/LAN
U2000-series USB Average Power Sensor enable fast, simple setup by providing plug-and-play USB connectivity and by eliminating the need for a separate power meter.
Available models include U2000A, U2001A, U2002A, U2004A.
U2000-series USB Average Power Sensor enable fast, simple setup by providing plug-and-play USB connectivity and by eliminating the need for a separate power meter.
Highlights
Internal Triggering and Trace Display Capability Internal triggering allows triggering based on the burst signal envelope, eliminating the need for an external signal. The trace display provides a graphical view of the signal envelope to assist with gate placement and trigger level setup. All U2000 power sensors, except for the U2004A, feature these capabilities.
- Frequency range of 10 MHz to 18 GHz
- Wide dynamic range of -60 to +20 dBm
- Internal zeroing capability to eliminate external calibration
- High measurement speed of up to 250 readings/second
- Support internal/external trigger measurements, internal triggering, and trace display
- Compatible with other Keysight instruments
- Your instrument can be controlled at no additional cost using the BenchVue Basic Power Meter/Sensor Control and Analysis App (BV0007B). This app simplifies instrument connection and control. Download the BenchVue Basic Power Meter/Sensor App (BV0007B). Note that the basic version does not include KeysightCare support and is one revision behind the licensed version. For access to the latest features and support, the licensed (paid) version of the BenchVue Power Meter/Sensor Control and Analysis App is available.
Model & Varian
| Model | Connector type | Frequency range | Power range | Connectivity |
|---|---|---|---|---|
| U2000A | Type-N | 10 MHz to 18 GHz | -60 to +20 dBm | USB |
| U2001A | Type-N | 10 MHz to 6 GHz | -60 to +20 dBm | USB |
| U2002A | 3.5 mm (m) | 50 MHz to 24 GHz | -60 to +20 dBm | USB |
| U2004A | Type-N | 9 kHz to 6 GHz | -60 to +20 dBm | USB |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Variant count | 4 models |
|---|---|
| Power range | -60 to +20 dBm |
| Connectivity | USB |
| Connector type | U2000A: Type-N; U2001A: Type-N; U2002A: 3.5 mm (m); U2004A: Type-N |
| Frequency range | U2000A: 10 MHz to 18 GHz; U2001A: 10 MHz to 6 GHz; U2002A: 50 MHz to 24 GHz; U2004A: 9 kHz to 6 GHz |
