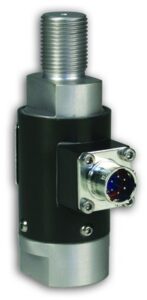

PCB 1380 Series Rod End Load Cell, 500Lb, 3/4-16, 6-Pin
Rod End Load Cell, 500 lbf (2.2 kN) rated capacity, 50% static overload protection, 3/4-16 male & female thread, aluminum construction
Available models include 1380-01A, 1380-02A, 1380-03A.
Rod End Load Cell, 500 lbf (2.2 kN) rated capacity, 50% static overload protection, 3/4-16 male & female thread, aluminum construction
This series includes the official PCB Piezotronics models listed below.
Key Features
Rod End Load Cell, 500 lbf (2.2 kN) rated capacity, 50% static overload protection, 3/4-16 male & female thread, aluminum construction
- Measurement Range: 500 lbf (2224 N)
- Size - Diameter: 1.50 in (38.1 mm)
- Size - Height: 4.25 in (107.9 mm)
- Electrical Connector: PT02E-10-6P
- * *
Model & Varian
| Model | Measurement Range | Sensitivity (±10 %) | Non-Linearity | Hysteresis | Non-Repeatability | Resonant Frequency | Overload Limit | Load Limit (Side Force, F X or F Y) |
|---|---|---|---|---|---|---|---|---|
| 1380-01A | 500 lbf / 2224 N / [1] | 2 mV/V / [2] | ≤0.25 % FS | ≤0.15 % FS | ≤0.05 %RO | 9 kHz | 750 lbf / 3336 N | 250 lbf / 1112 N / [3] |
| 1380-02A | 1000 lbf / 4448 N / [1] | 2 mV/V / [2] | ≤0.25 % FS | ≤0.15 % FS | ≤0.05 %RO | 10 kHz | 1500 lbf / 6672 N | 250 lbf / 1112 N / [3] |
| 1380-03A | 2000 lbf / 8896 N / [1] | 2 mV/V / [2] | ≤0.25 % FS | ≤0.15 % FS | ≤0.05 %RO | 9 kHz | 3000 lbf / 13 kN | 800 lbf / 3559 N / [3] |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Measurement Range | 500 lbf / 2224 N / [1] |
|---|---|
| Sensitivity (±10 %) | 2 mV/V / [2] |
| Non-Linearity | ≤0.25 % FS |
| Hysteresis | ≤0.15 % FS |
| Non-Repeatability | ≤0.05 %RO |
| Resonant Frequency | 9 kHz |
| Overload Limit | 750 lbf / 3336 N |
| Load Limit (Side Force, F X or F Y) | 250 lbf / 1112 N / [3] |
| Load Limit (Bending Moment, M X or M Y) | 750 inf-lb / 85 Nm / [3] |
| Load Limit (Axial Torque, M Z) | 500 inf-lb / 56 Nm / [3] |
| Temperature Range (Operating) | -20 to +200 °F / -28 to +93 °C |
| Temperature Range (Compensated) | +70 to +170 °F / +21 to +77 °C |
| Temperature Effect on Output (Maximum) | ±0.01 %Reading/°F / ±0.018 %Reading/°C / [4] |
| Temperature Effect on Zero Balance (Maximum) | ±0.005 %FS/°F / ±0.009 %FS/°C / [4] |
| Bridge Resistance | 350 Ohm / [5] |
| Excitation Voltage (Recommended) | 10 VDC / [6] |
