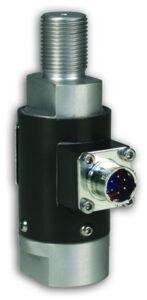

PCB Piezotronics 1381 Series Rod End Load Cell, 5K Lb, 1-14
Rod End Load Cell, 5k lbf (22.2 kN) rated capacity, 50% static overload protection, 1-14 male & female thread, steel construction
Available models include 1381-01A, 1381-02A, 1381-04A.
Rod End Load Cell, 5k lbf (22.2 kN) rated capacity, 50% static overload protection, 1-14 male & female thread, steel construction
This series includes the official PCB Piezotronics models listed below.
Key Features
Rod End Load Cell, 5k lbf (22.2 kN) rated capacity, 50% static overload protection, 1-14 male & female thread, steel construction
- Measurement Range: 5000 lbf (22 kN)
- Size - Diameter: 1.50 in (38.1 mm)
- Size - Height: 4.50 in (114.3 mm)
- Electrical Connector: PT02E-10-6P
- * *
Model & Varian
| Model | Measurement Range | Sensitivity (±10 %) | Non-Linearity | Hysteresis | Non-Repeatability | Resonant Frequency | Overload Limit | Temperature Range (Operating) |
|---|---|---|---|---|---|---|---|---|
| 1381-01A | 5000 lbf / 22 kN / [1] | 2 mV/V / [2] | ≤0.25 % FS | ≤0.15 % FS | ≤0.05 %RO | 10 kHz | 7500 lbf / 33 kN | -20 to +200 °F / -28 to +93 °C |
| 1381-02A | 10 klbf / 44 kN / [1] | 2 mV/V / [2] | ≤0.25 % FS | ≤0.15 % FS | ≤0.05 %RO | 9 kHz | 15 klbf / 67 kN | -20 to +200 °F / -28 to +93 °C |
| 1381-04A | 20 klbf / 89 kN / [1] | 2 mV/V / [2] | ≤0.25 % FS | ≤0.15 % FS | ≤0.05 %RO | 15 kHz | 30 klbf / 133 kN | -20 to +200 °F / -28 to +93 °C |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Measurement Range | 5000 lbf / 22 kN / [1] |
|---|---|
| Sensitivity (±10 %) | 2 mV/V / [2] |
| Non-Linearity | ≤0.25 % FS |
| Hysteresis | ≤0.15 % FS |
| Non-Repeatability | ≤0.05 %RO |
| Resonant Frequency | 10 kHz |
| Overload Limit | 7500 lbf / 33 kN |
| Load Limit (Side Force, F X or F Y) | 800 lbf / 3559 N / [3] |
| Load Limit (Bending Moment, M X or M Y) | 2500 inf-lb / 282 Nm / [3] |
| Load Limit (Axial Torque, M Z) | 1900 inf-lb / 214 Nm / [3] |
| Temperature Range (Operating) | -20 to +200 °F / -28 to +93 °C |
| Temperature Range (Compensated) | +70 to +170 °F / +21 to +77 °C |
| Temperature Effect on Output (Maximum) | ±0.01 %Reading/°F / ±0.018 %Reading/°C / [4] |
| Temperature Effect on Zero Balance (Maximum) | ±0.005 %FS/°F / ±0.009 %FS/°C / [4] |
| Bridge Resistance | 350 Ohm / [5] |
| Excitation Voltage (Recommended) | 10 VDC / [6] |
