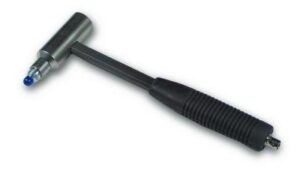

Model TLD086C04:Modally Tuned® Impulse Hammer w/force sensor and tips, 0 to 1000 lbf, 5 mV/lbf (1.1 mV/N), TEDS 1.0
Key Features
Model TLD086C04:Modally Tuned® Impulse Hammer w/force sensor and tips, 0 to 1000 lbf, 5 mV/lbf (1.1 mV/N), TEDS 1.0
- Sensitivity: (±15%)5 mV/lbf (1.1 mV/N)
- Measurement Range: ±1000 lbf pk (±4448 N pk)
- Hammer Mass: 0.34 lb (0.16 kg)
Spesifikasi
| Sensitivity (±15 %) | 5 mV/lbf / 1.1 mV/N |
|---|---|
| Measurement Range | ±1000 lbf pk / ±4448 N pk |
| Resonant Frequency | ≥22 kHz |
| Non-Linearity | ≤1 % |
| Excitation Voltage | 20 to 30 VDC |
| Constant Current Excitation | 2 to 20 mA |
| Output Bias Voltage | 8 to 14 VDC |
| Discharge Time Constant | ≥2000 sec / [1] |
| Sensing Element | Quartz |
| Sealing | Epoxy |
| Hammer Mass | 0.34 lb / 0.16 kg |
| Head Diameter | 0.62 in / 1.57 cm |
| Tip Diameter | 0.25 in / 0.63 cm |
| Hammer Length | 8.5 in / 21.6 cm |
| Electrical Connection Position | Bottom of Handle |
