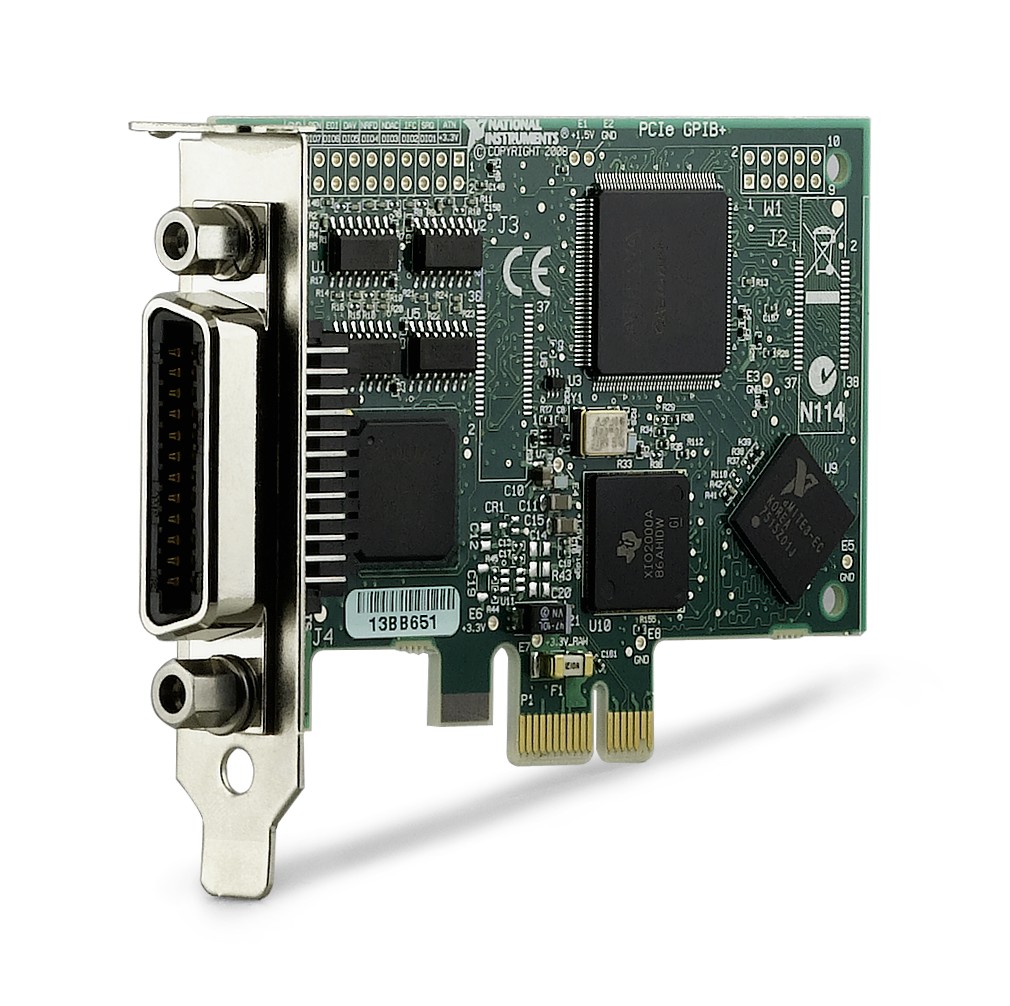

NI PCIe-GPIB+, Low-Profile, with NI-488.2
PCI Express, Analyzer Software Included, IEEE 488 GPIB Instrument Control Device
The PCIe-GPIB+ combines an IEEE 488 controller and an analyzer on one device for computers with PCIe slots. You can use this device to integrate an instrument into your system using GPIB as well as to troubleshoot and solve GPIB hardware and software problems.
The PCIe-GPIB+ achieves maximum IEEE 488.2 transfer rates. With an onboard bus master DMA controller, there is no microprocessor interruption in data transfers. The device includes a license for the NI-488.2 driver software, providing maximum reliability for connecting to third-party instruments with GPIB.
Model & Varian
| Model | Part Number | Low Profile | Product Description |
|---|---|---|---|
| PCIe-GPIB+ | 780936-01 | Yes | NI PCIe-GPIB+, Low-Profile, with NI-488.2 |
| PCIe-GPIB+ | 780935-01 | No | NI PCIe-GPIB+, with NI-488.2 |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Part Number | 780936-01 |
|---|---|
| Bus Connection | PCI Express |
| Low Profile | Yes |
| Onboard GPIB Analyzer | Yes |
| Supported Operating System | Windows#Linux |
| Front Connection Type | GPIB (IEEE 488)(1) |
| Operating Temperature Range | 0 °C to 55 °C |
| Maximum Baud Rate | 7980 kB/s |
| Product Description | NI PCIe-GPIB+, Low-Profile, with NI-488.2 |
