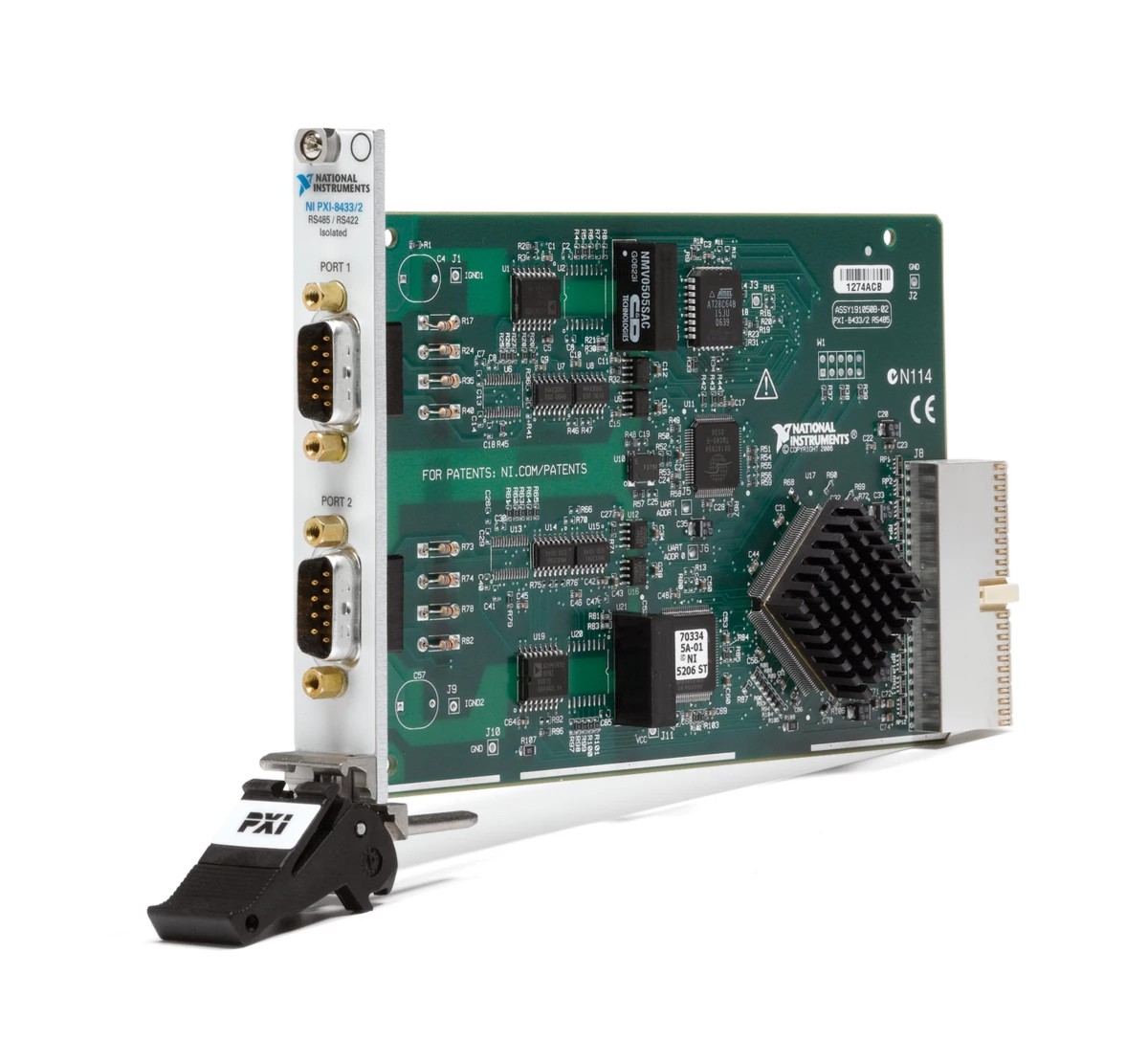

PXI-8433/2, 2000V Isolated RS422/485, 2 Port Serial Interface
2-Port, Isolated, RS485/RS422 PXI Serial Interface Module
The PXI-8433/2 is a high-performance industrial interface for high-speed, port-to-port isolated communication with RS485 and RS422 devices. It features high-performance DMA transfers, multithreading, and multiprocessor support. You can also select between 4- and 2-wire transceiver modes for full- and half-duplex communication. NI serial interfaces also appear as standard COM ports for compatibility with programs that use serial communications.
Spesifikasi
| Part Number | 779744-01 |
|---|---|
| Bus Connection | PXI Hybrid |
| Isolation Type | Port-Port Isolation#Port-PC Isolation |
| Number of Serial Channels | 2 |
| Supported Serial Protocols | RS485#RS422 |
| Operating Temperature Range | 0 °C to 55 °C |
| Maximum Baud Rate | 3 Mbits/s |
| Front Connection Type | D-SUB(2) |
| Number of Bidirectional Digital Channels | 2 |
| Product Description | PXI-8433/2, 2000V Isolated RS422/485, 2 Port Serial Interface |
