NI PXIe-8430/8, 8 Port, RS232 Serial Interface for PXI Express
8-Port, RS232 PXI Serial Interface Module

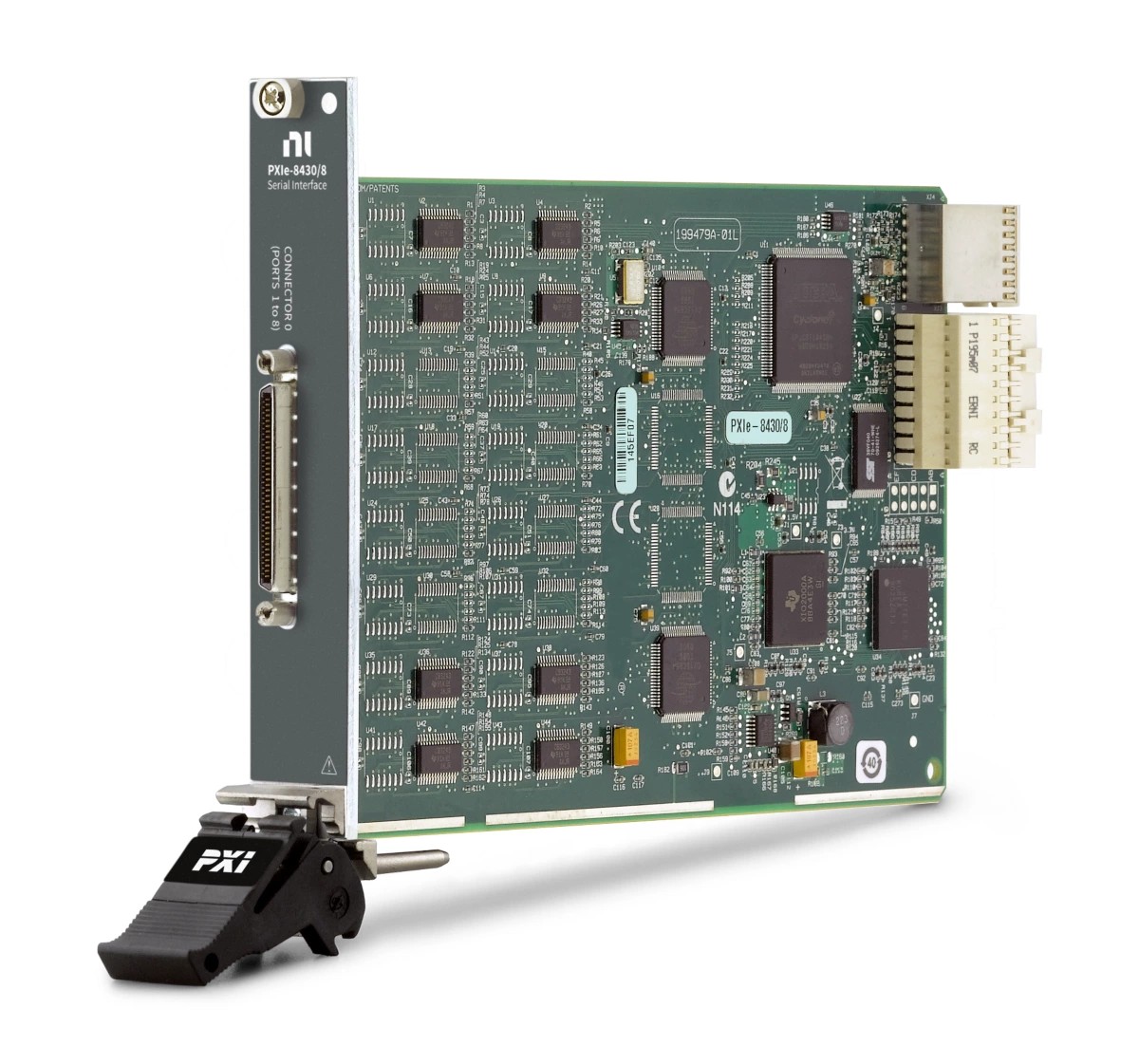

The PXIe-8430/8 is a high-performance interface for high-speed communication with RS232 devices. It features high-performance DMA transfers, multithreading, and multiprocessor support. NI serial interfaces also appear as standard COM ports for compatibility with programs that use serial communications. Additionally, the PXIe-8430/8 includes a one-meter, 68-Pin VHDCI to 8-Port 9-Pin D-SUB serial cable.
Spesifikasi
| Part Number | 781472-01 |
|---|---|
| Bus Connection | PXI Express |
| Isolation Type | None |
| Number of Serial Channels | 8 |
| Supported Serial Protocols | RS232 |
| Operating Temperature Range | 0 °C to 55 °C |
| Maximum Baud Rate | 1 Mbits/s |
| Front Connection Type | SCSI Type(1) |
| Number of Bidirectional Digital Channels | 8 |
| Product Description | NI PXIe-8430/8, 8 Port, RS232 Serial Interface for PXI Express |
