NI

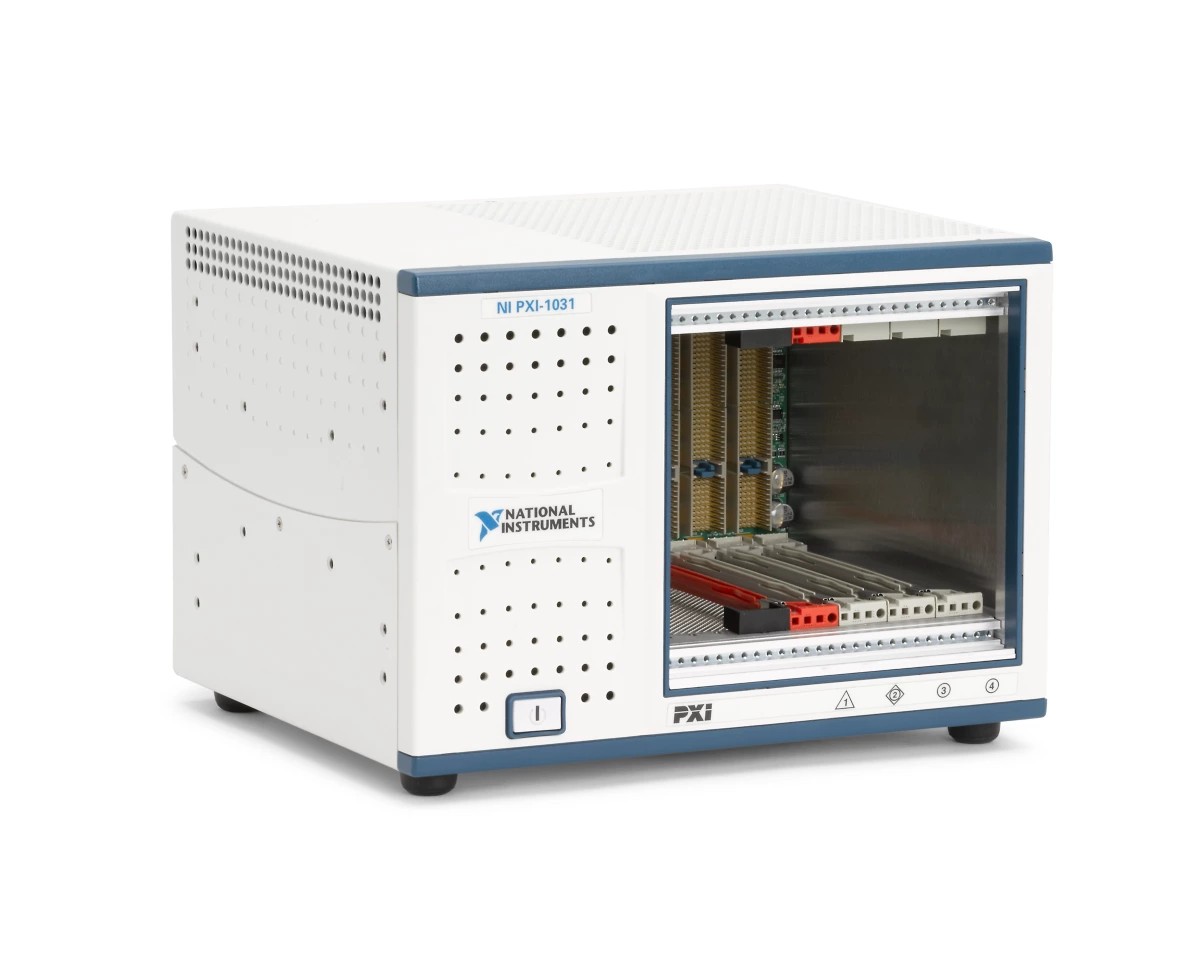

NI PXI-1031 4-Slot 3U Chassis with Universal AC Power Supply
The PXI-1031 is ideal for engineers and scientists who need a PXI chassis with reduced acoustic noise emissions for office, laboratory, and educational environments.
The PXI-1031 is ideal for engineers and scientists who need a PXI chassis with reduced acoustic noise emissions for office, laboratory, and educational environments. The PXI-1031 is compatible with both 3U PXI and CompactPCI modules. It also features an enhanced cooling capacity with an auto/high temperature-controlled fan speed.
Spesifikasi
| Part Number | 778932-01 |
|---|---|
| PXI Chassis Type | PXI |
| Slot Count | 4 |
| Number of Hybrid Slots | 0 |
| Number of PXI Express Slots | 0 |
| Chassis Power Supply Type | AC |
| Slot Cooling Capacity | 25 W |
| Maximum System Bandwidth | 132 MB/s |
| System Timing Slot | No |
| External Trigger Access | No |
| External Clocking | No |
| Onboard Clock Type | VCXO |
| Redundant HW Option | No |
| Number of PXI Slots | 3 |
| Operating Temperature Range | 0 °C to 50 °C |
| Product Description | NI PXI-1031 4-Slot 3U Chassis with Universal AC Power Supply |
