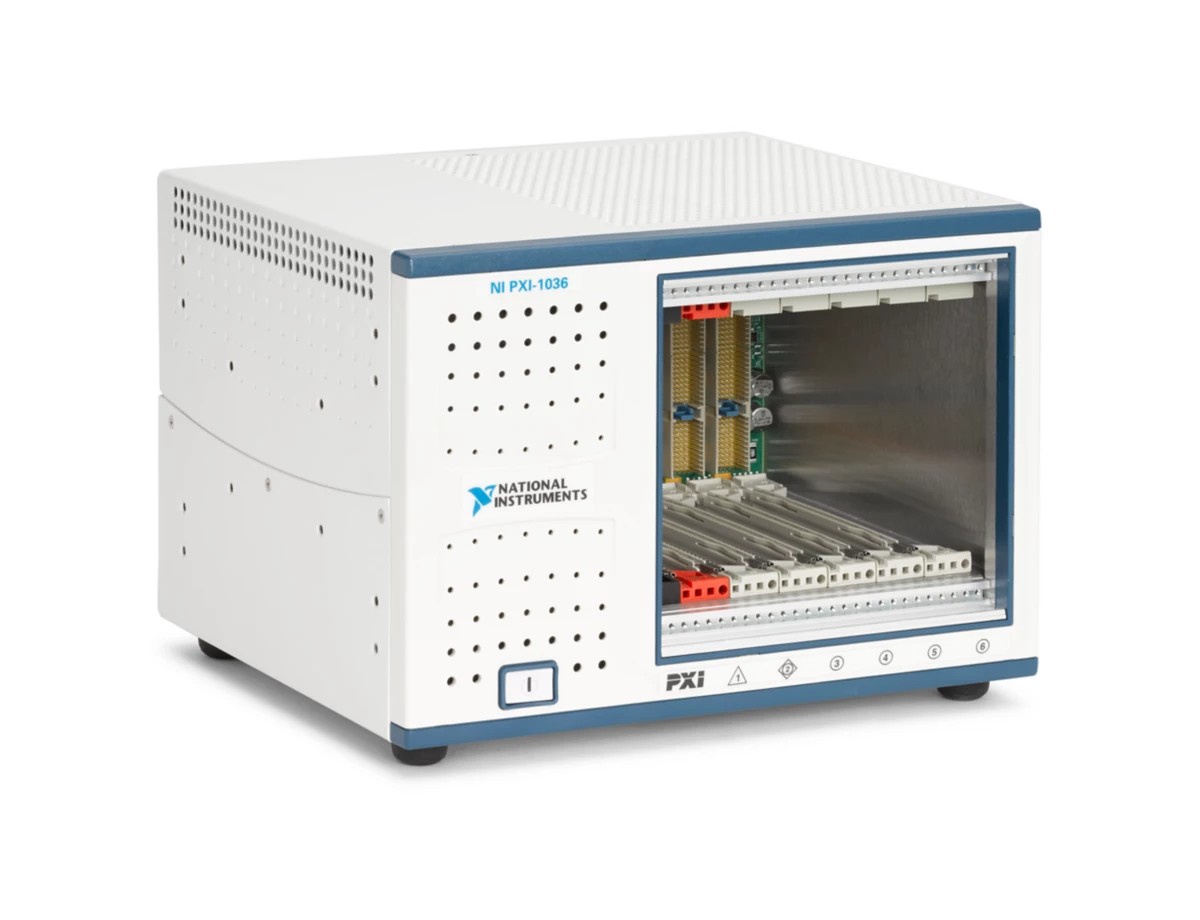

NI PXI-1036 6-Slot 3U Chassis with AC for 1 or 2-slot Controllers
The PXI-1036 meets the demanding cooling and power requirements of today's PXI applications.
The PXI-1036 meets the demanding cooling and power requirements of today’s PXI applications. This chassis is ideal for remote, real-time, and data acquisition applications. The PXI-1036 is compatible with either a remote controller or a two-slot embedded controller.
Spesifikasi
| Part Number | 779382-01 |
|---|---|
| PXI Chassis Type | PXI |
| Slot Count | 6 |
| Number of Hybrid Slots | 0 |
| Number of PXI Express Slots | 0 |
| Chassis Power Supply Type | AC |
| Slot Cooling Capacity | 25 W |
| Maximum System Bandwidth | 132 MB/s |
| System Timing Slot | No |
| External Trigger Access | No |
| External Clocking | No |
| Onboard Clock Type | VCXO |
| Redundant HW Option | No |
| Number of PXI Slots | 5 |
| Operating Temperature Range | 0 °C to 50 °C |
| Product Description | NI PXI-1036 6-Slot 3U Chassis with AC for 1 or 2-slot Controllers |
