NI

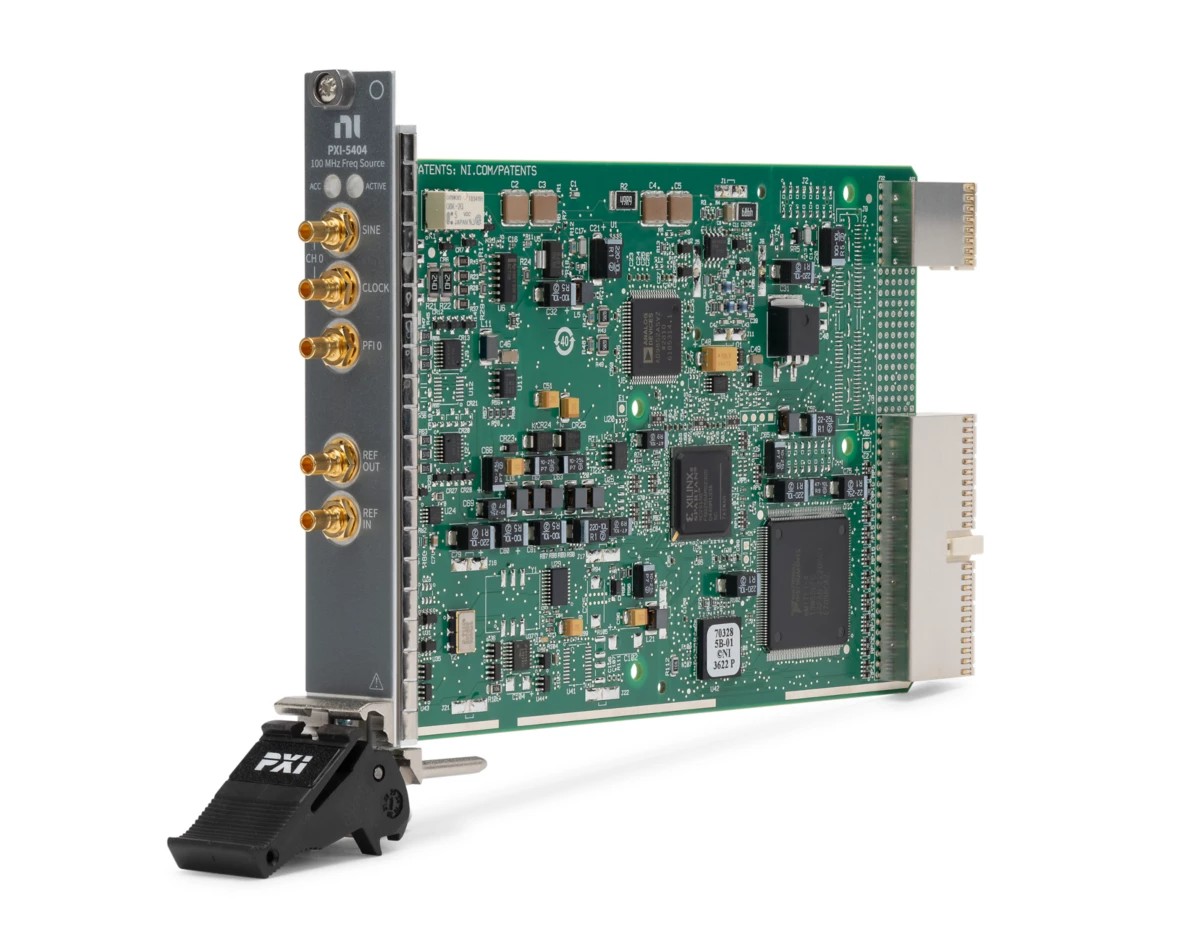

PXI-5404 PXI Waveform Generator, 105 MHz, 12 bits, 300 MS/s, 1 Channels, 8 MB
100 MHz Bandwidth, 1-Channel, 12-Bit PXI Waveform Generator
The PXI-5404 is a 100 MHz clock generator capable of generating clock and sine wave signals and some other standard functions. This clock generator can generate signals from -1 V to +1 V and uses direct digital synthesis (DDS) to precisely generate waveforms.
Spesifikasi
| Part Number | 778577-02 |
|---|---|
| Supports Arbitrary Waveforms | Yes |
| Maximum Bandwidth | 105 MHz |
| Number of Output Channels | 1 |
| Supports Digital Upconversion | No |
| Analog Output Voltage Range | -1 V to 1 V |
| Analog Output Onboard Memory Size | 8 MB |
| Analog Output Resolution | 12 bits |
| RF Signal Generation | Yes |
| Supports Scripting | Yes |
| Bus Connection | PXI Hybrid |
| Supported Hardware Platform | PXI |
| Reconfigurable | No |
| Maximum Sample Rate | 300 MS/s |
| Product Description | PXI-5404 PXI Waveform Generator, 105 MHz, 12 bits, 300 MS/s, 1 Channels, 8 MB |
