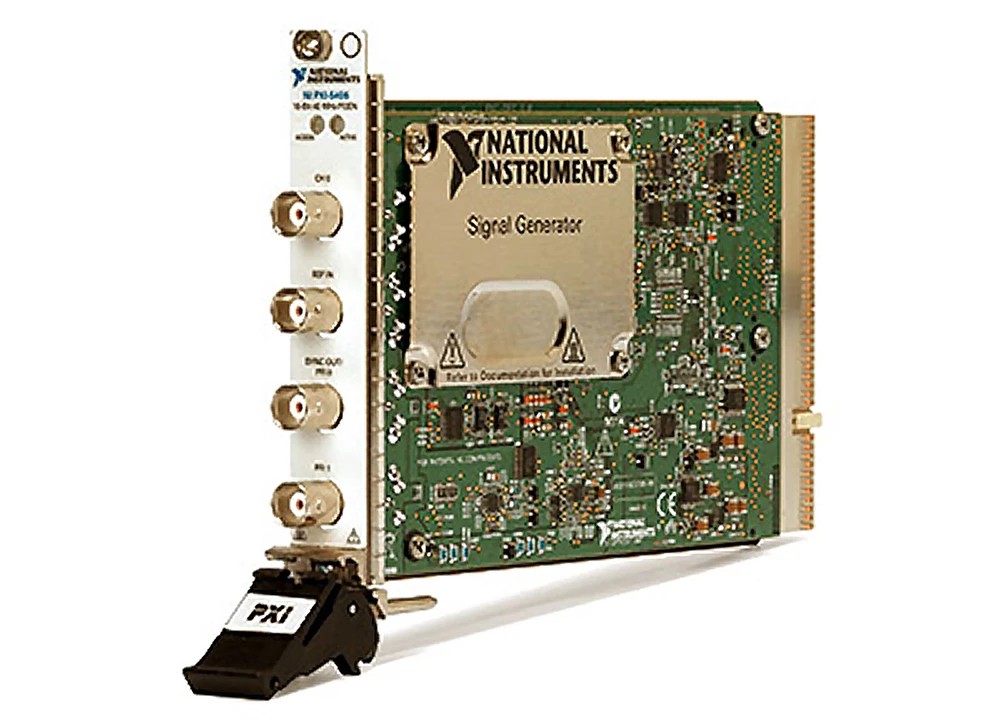

PXI-5406 PXI Waveform Generator, 40 MHz, 16 bits, 100 MS/s, 1 Channels, 32 kB
40 MHz Bandwidth, 1-Channel, 16-Bit PXI Waveform Generator
The PXI-5406 is a 40 MHz function generator capable of generating standard functions including sine, square, triangle, and ramp as well as other signals like psuedorandom noise and DC signals. This function generator can generate signals from -5 V to +5 V and uses direct digital synthesis (DDS) to precisely generate waveforms.
Spesifikasi
| Part Number | 779657-01 |
|---|---|
| Supports Arbitrary Waveforms | No |
| Maximum Bandwidth | 40 MHz |
| Number of Output Channels | 1 |
| Supports Digital Upconversion | No |
| Analog Output Voltage Range | -5 V to 5 V |
| Analog Output Onboard Memory Size | 32 kB |
| Analog Output Resolution | 16 bits |
| RF Signal Generation | No |
| Maximum Analog Update Rate | 100 MS/s |
| Supports Scripting | No |
| Bus Connection | PXI Hybrid |
| Supported Hardware Platform | PXI |
| Reconfigurable | Yes |
| Product Description | PXI-5406 PXI Waveform Generator, 40 MHz, 16 bits, 100 MS/s, 1 Channels, 32 kB |
