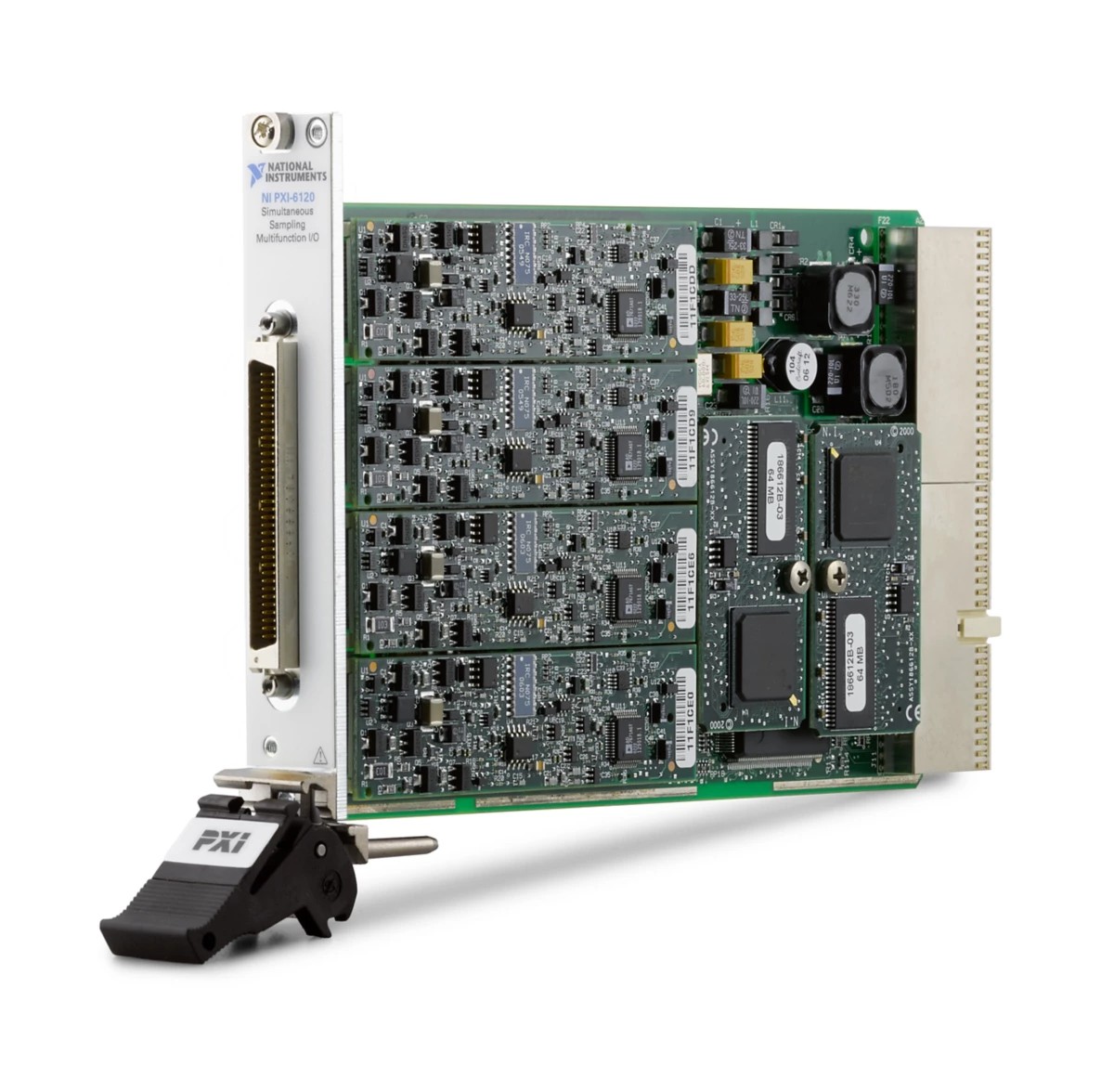

NI PXI-6120 S Series Multifunction DAQ Module
4 AI (16-Bit, 800 kS/s/ch), 8 DIO, PXI Multifunction I/O Module
The PXI-6120 is a simultaneous-sampling, multifunction data acquisition device. It offers analog input, digital I/O, two 24-bit counters, and digital triggering. It is ideal for a variety of applications, such as stimulus/response applications for whih synchronization among analog input, analog output, and digital I/O is required; 42 V automotive applications; radar; sonar; and ultrasound. The included NI-DAQmx driver and configuration utility simplify configuration and measurements.
Spesifikasi
| Part Number | 778396-01 |
|---|---|
| Maximum Number of Single-Ended Analog Input Channels | 0 |
| Analog Input Resolution | 16 bits |
| Simultaneous Sampling | Yes |
| Maximum Sample Rate | 800 kS/s/ch |
| Analog Input Absolute Accuracy | 76 mV |
| Number of Counters/Timers | 2 |
| Number of Analog Output Channels | 2 |
| Maximum Analog Update Rate | 4 MS/s |
| Bus Connector | PXI Hybrid |
| Number of Bidirectional Digital Channels | 8 |
| Electrical Signal Measured | Voltage |
| Analog Input FIFO Buffer Size | 32 MS |
| Maximum Number of Differential Analog Input Channels | 4 |
| Reconfigurable | Yes |
| Bus Connection | PXI Hybrid |
| Front Connection Type | SCSI Type(1) |
| Analog Input Voltage Range | -42 V to 42 V; -20 V to 20 V; -10 V to 10 V; -5 V to 5 V; -2 V to 2 V; -1 V to 1 V; -0.5 V to 0.5 V; -0.2 V to 0.2 V |
| Analog Output Resolution | 16 bits |
| Product Description | NI PXI-6120 S Series Multifunction DAQ Module |
