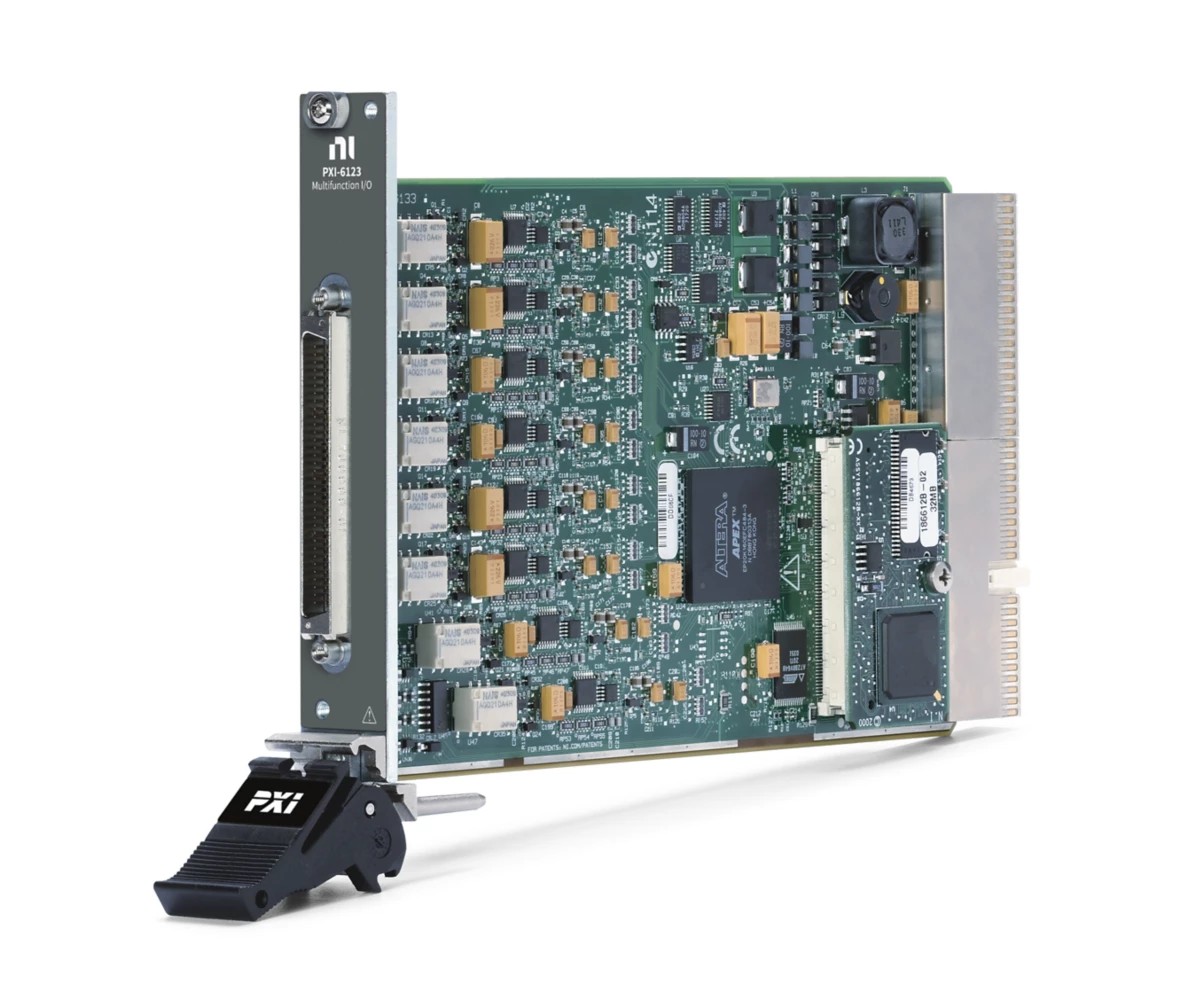

NI PXI-6123 (16 MSamples) S Series Multifunction DAQ Device
8 AI (16-Bit, 500 kS/s/ch), 8 DIO, PXI Multifunction I/O Module
The PXI-6123 is a simultaneous-sampling, multifunction data acquisition device. It offers analog input, digital I/O, two 24-bit counters, and digital triggering. The PXI-6123 is ideal for a variety of applications, such as IF digitization; transient recording; ISDN, ADSL, and POTS manufacturing test in the telecom industry; ultrasound and sonar testing; and high-energy physics. The included NI-DAQmx driver and configuration utility simplify configuration and measurements.
Spesifikasi
| Part Number | 779181-01 |
|---|---|
| Maximum Number of Single-Ended Analog Input Channels | 0 |
| Analog Input Resolution | 16 bits |
| Simultaneous Sampling | Yes |
| Maximum Sample Rate | 500 kS/s/ch |
| Analog Input Absolute Accuracy | 4960 μV |
| Number of Counters/Timers | 2 |
| Number of Analog Output Channels | 0 |
| Bus Connector | PXI Hybrid |
| Number of Bidirectional Digital Channels | 8 |
| Electrical Signal Measured | Voltage |
| Analog Input FIFO Buffer Size | 16 MS |
| Maximum Number of Differential Analog Input Channels | 8 |
| Reconfigurable | Yes |
| Bus Connection | PXI Hybrid |
| Front Connection Type | SCSI Type(1) |
| Analog Input Voltage Range | -10 V to 10 V; -5 V to 5 V; -2.5 V to 2.5 V; -1.25 V to 1.25 V |
| Product Description | NI PXI-6123 (16 MSamples) S Series Multifunction DAQ Device |
