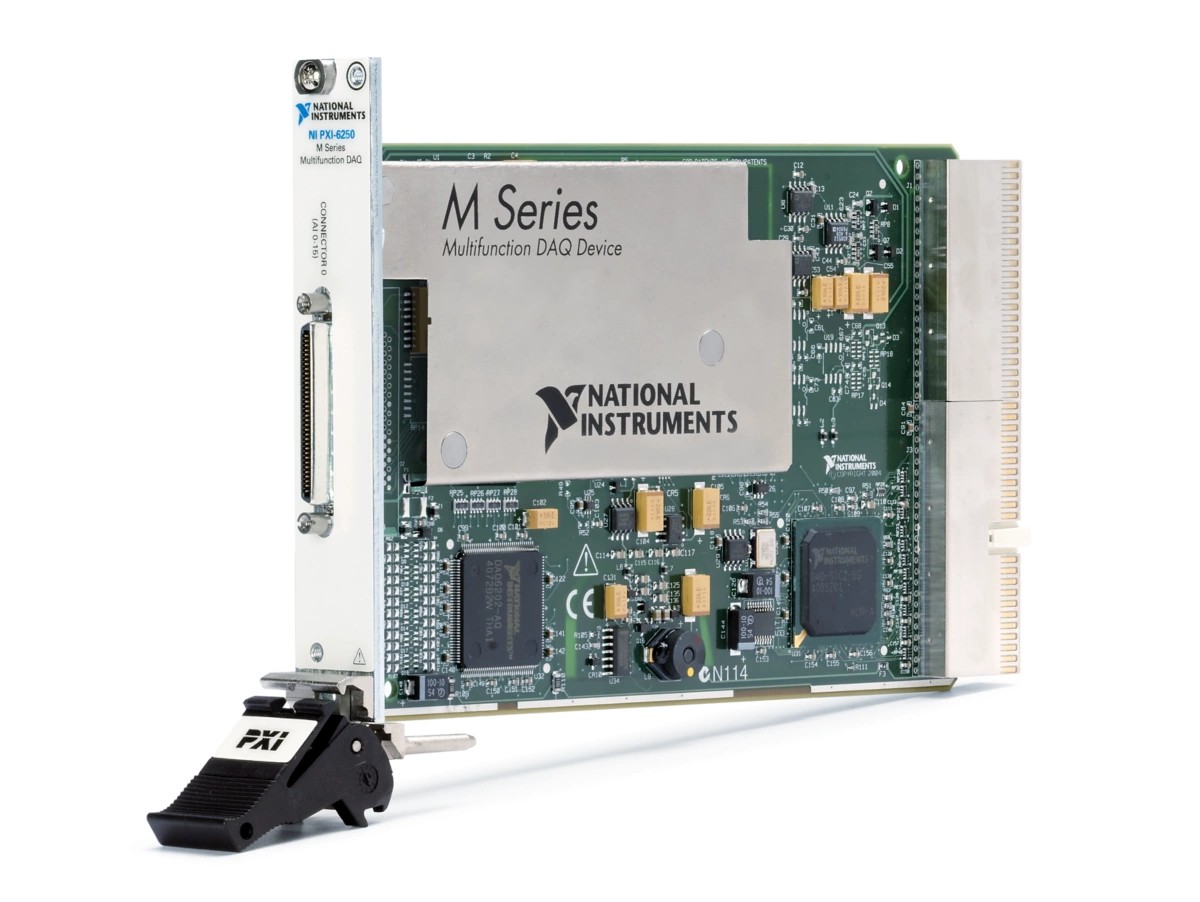

NI PXI-6250 (16 Analog Inputs, 24 Digital I/O)
16 AI (16-Bit, 1.25 MS/s), 24 DIO, PXI Multifunction I/O Module
The PXI-6250 offers analog input, correlated digital I/O, two 32-bit counters/timers, and analog and digital triggering. The device delivers low-cost, reliable DAQ capabilities in a wide range of applications from simple applications in laboratory automation, research, design verification/test, and manufacturing test. You can add sensor and high-voltage measurement capability to your device with SCC or SCXI signal conditioning modules. The included NI-DAQmx driver and configuration utility simplify configuration and measurements.
Spesifikasi
| Part Number | 779116-01 |
|---|---|
| Maximum Number of Single-Ended Analog Input Channels | 16 |
| Analog Input Resolution | 16 bits |
| Simultaneous Sampling | No |
| Maximum Sample Rate | 1.25 MS/s |
| Number of Counters/Timers | 2 |
| Number of Analog Output Channels | 0 |
| Maximum Analog Update Rate | 25 kS/s |
| Bus Connector | PXI |
| Number of Bidirectional Digital Channels | 24 |
| Electrical Signal Measured | Voltage |
| Maximum Number of Differential Analog Input Channels | 8 |
| Reconfigurable | Yes |
| Bus Connection | PXI |
| Front Connection Type | VHDCI(1) |
| Analog Input Voltage Range | -0.1 V to 0.1 V; -0.2 V to 0.2 V; -0.5 V to 0.5 V; -1 V to 1 V; -2 V to 2 V; -5 V to 5 V; -10 V to 10 V |
| Product Description | NI PXI-6250 (16 Analog Inputs, 24 Digital I/O) |
