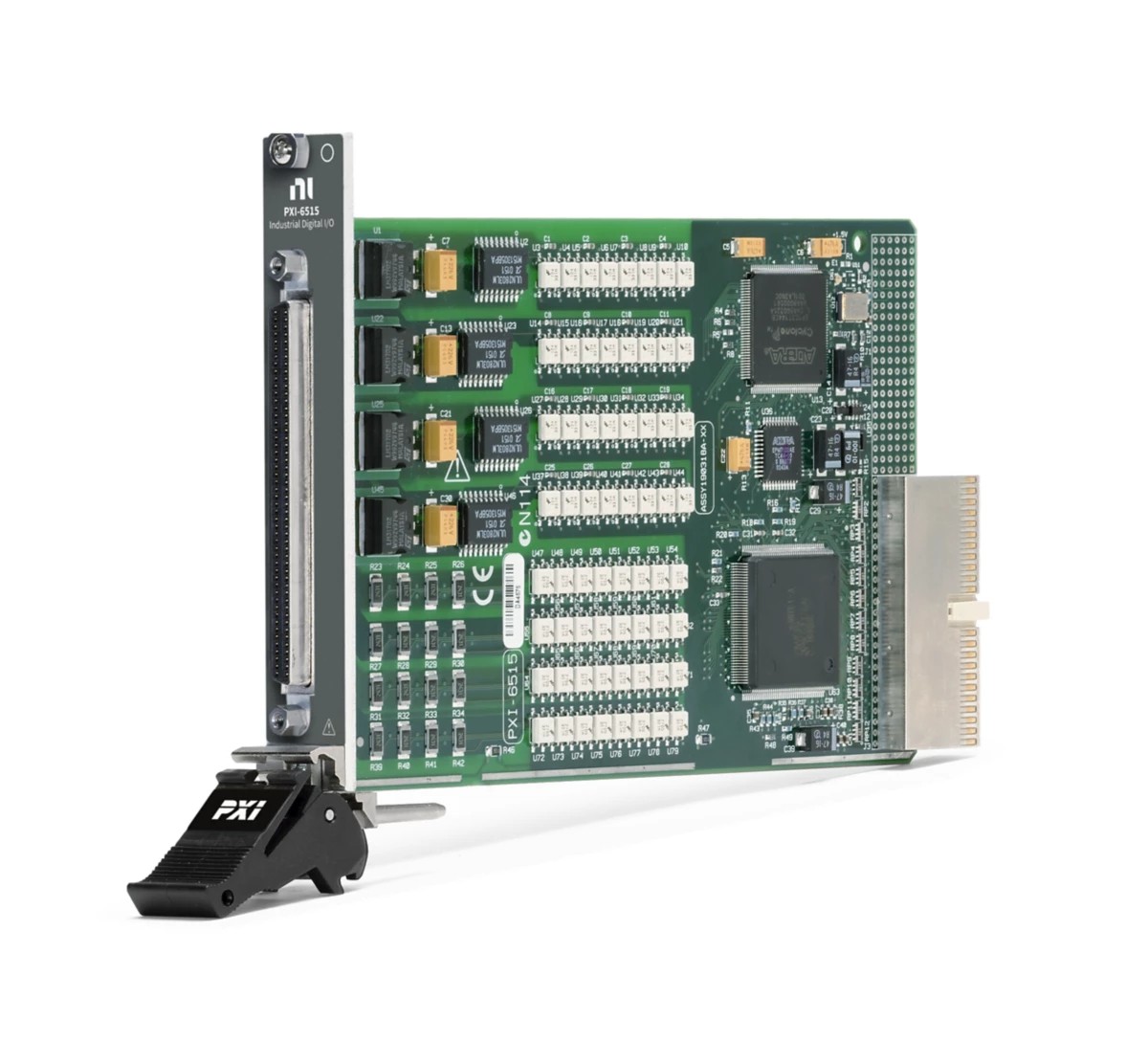

NI PXI-6515 Industrial 32 DI, 32 Sink DO Bank Isol. DIO & NI-DAQ
64-Channel, ±30 VDC, 32 Sink/Source Inputs, 32 Sink Outputs, Bank-Isolated PXI Digital I/O Module
The PXI-6515 is an industrial digital I/O interface with eight banks of isolated channels. You can wire each input bank in a source or sink configuration. With programmable power-up states, you can configure the initial output states in software to ensure safe operation when connected to industrial actuators. If a computer or application fault occurs, the PXI-6515 can use digital I/O watchdogs to switch to a configurable safe output state to ensure detection and safe recovery from fault conditions. Programmable input filters eliminate glitches/spikes and provide debouncing for digital switches/relays through a software-selectable digital filter.
Spesifikasi
| Part Number | 778964-01 |
|---|---|
| Bus Connector | PXI Hybrid |
| Single-Ended Digital I/O Channel Current Drive | 500 mA |
| Digital I/O Logic Levels | 24 V |
| Number of Digital Input Only Channels | 32 |
| Number of Digital Output Only Channels | 32 |
| Digital Input Voltage Range | -30 V to 30 V |
| Output Voltage Range | -30 V to 30 V |
| Signaling Type | Single-Ended |
| Bus Connection | PXI Hybrid |
| Front Connection Type | SCSI Type(1) |
| Supported Hardware Platform | PXI |
| Module Width | 1 |
| Product Description | NI PXI-6515 Industrial 32 DI, 32 Sink DO Bank Isol. DIO & NI-DAQ |
