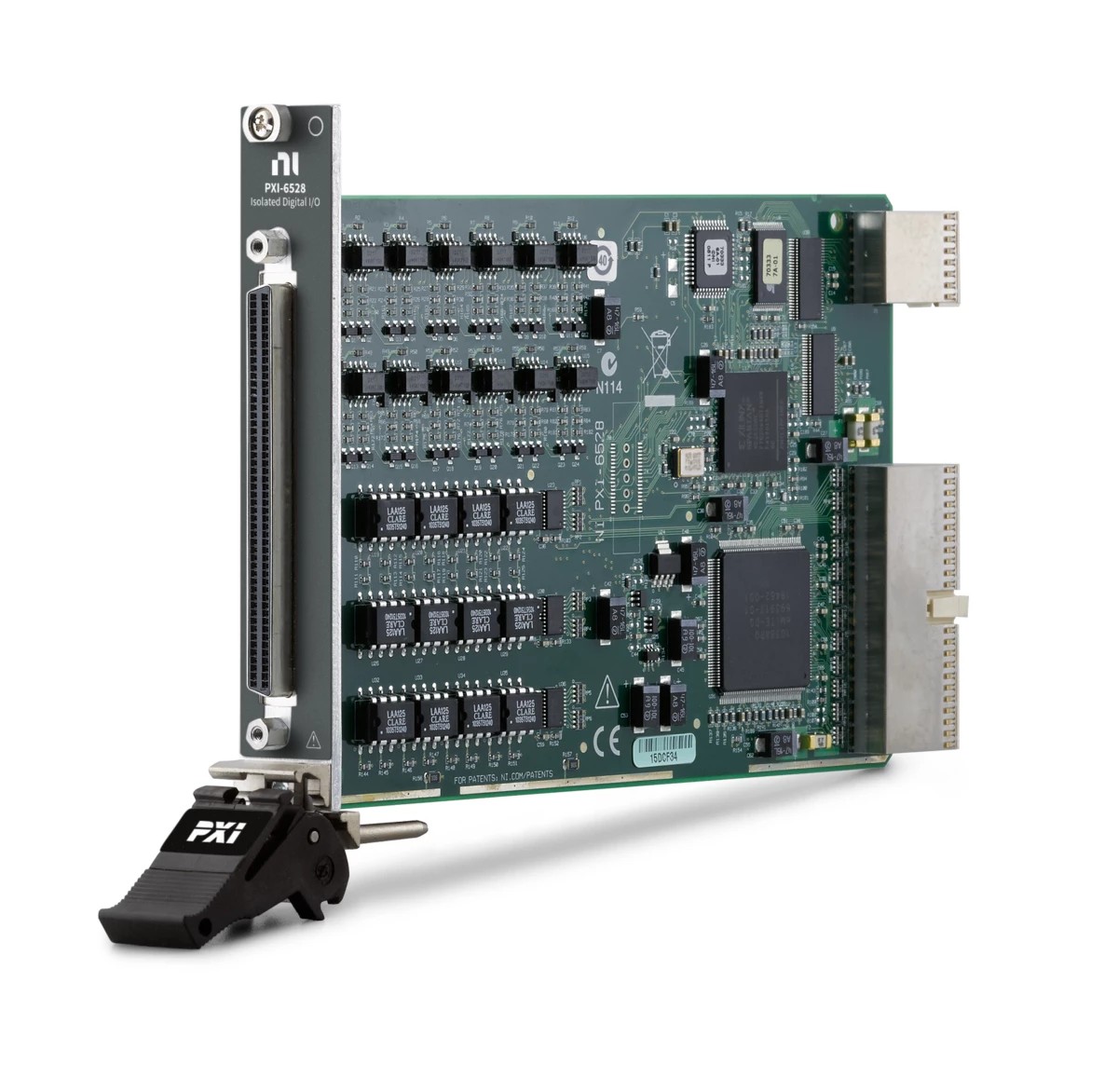

NI PXI-6528 Industrial, 24 DI, 24 DO, Ch-Ch Isolated DIO; NI-DAQ
48-Channel, 24 Sink/Source Inputs, 24 Sink/Source Outputs, Channel-Channel Isolated, PXI Digital I/O Module
The PXI-6528 is an industrial, parallel digital I/O interface. With programmable power-up states, you can configure the initial output states in software to ensure safe operation when connected to industrial actuators. If a computer or application fault occurs, the PXI-6528 can use digital I/O watchdogs to switch to a configurable safe output state to ensure detection and safe recovery from fault conditions. Programmable input filters eliminate glitches/spikes and provide debouncing for digital switches/relays through a software-selectable digital filter.
Spesifikasi
| Part Number | 778543-01 |
|---|---|
| Bus Connector | PXI Hybrid |
| Single-Ended Digital I/O Channel Current Drive | 150 mA |
| Digital I/O Logic Levels | 60 V |
| Number of Digital Input Only Channels | 24 |
| Number of Digital Output Only Channels | 24 |
| Digital Input Voltage Range | -60 V to 60 V |
| Output Voltage Range | -60 V to 60 V |
| Signaling Type | Differential |
| Bus Connection | PXI Hybrid |
| Front Connection Type | SCSI Type(1) |
| Supported Hardware Platform | PXI |
| Module Width | 1 |
| Product Description | NI PXI-6528 Industrial, 24 DI, 24 DO, Ch-Ch Isolated DIO; NI-DAQ |
