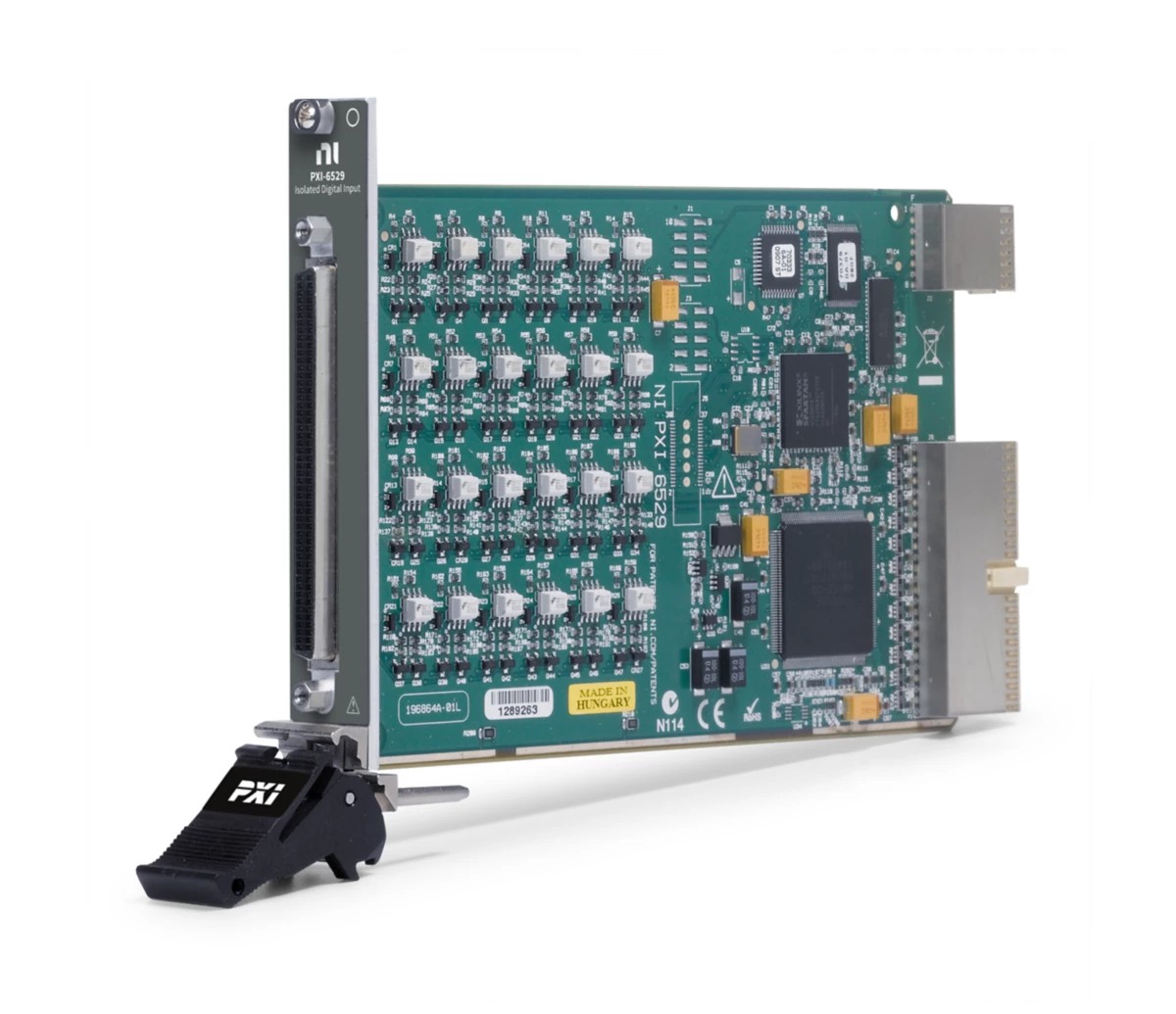

NI PXI-6529 Industrial 48 DI, Ch/Ch Isolated DIO & NI-DAQ
48-Channel, Sink/Source Inputs, Channel-Channel Isolated PXI Digital I/O Module
The PXI-6529 is an industrial, parallel digital input interface. PXI-6529 devices are ideal for a variety of applications from automotive design, industrial factory automation, and machine control to aerospace, laboratory research, and biomedical applications. With programmable power-up states, you can configure the initial output states in software to ensure safe operation when connected to industrial actuators. If a computer or application fault occurs, the PXI-6529 can use digital I/O watchdogs to switch to a configurable safe output state to ensure detection and safe recovery from fault conditions. Programmable input filters eliminate glitches/spikes and provide debouncing for digital switches/relays through a software-selectable digital filter.
Spesifikasi
| Part Number | 779949-01 |
|---|---|
| Bus Connector | PXI Hybrid |
| Single-Ended Digital I/O Channel Current Drive | 150 mA |
| Digital I/O Logic Levels | 60 V |
| Number of Digital Input Only Channels | 48 |
| Digital Input Voltage Range | -60 V to 60 V |
| Signaling Type | Differential |
| Bus Connection | PXI Hybrid |
| Front Connection Type | SCSI Type(1) |
| Supported Hardware Platform | PXI |
| Module Width | 1 |
| Product Description | NI PXI-6529 Industrial 48 DI, Ch/Ch Isolated DIO & NI-DAQ |
