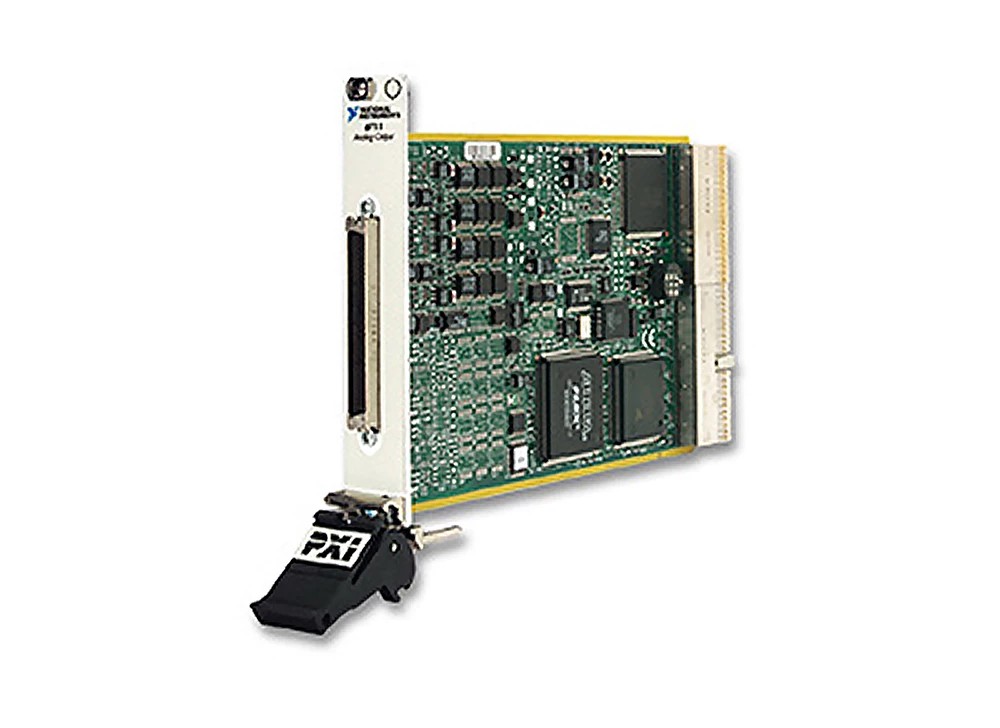

PXI-6711 Analog Output Device for PXI and NI-DAQ forWindows
12-Bit, 4-Channel, 1 MS/s PXI Analog Output Module
The PXI-6711 is a high-speed analog output device designed to deliver simultaneous, multichannel updates for control and waveform output applications, such as stimulus-response, power supply control, high-speed, deterministic control, and sensor/signal simulation. In addition, the device provides eight 5 V TTL/CMOS digital I/O lines; two 24-bit, 20 MHz counter/timers; and digital triggering and external clocking capabilities.
The PXI-6711 can replace several kinds of instruments, including stand-alone proportional integral derivative (PID) controllers, low-speed arbitrary waveform generators, and function generators. You can control each data point for each channel to define common waveforms, such as square, sine, or sawtooth, as well as complex waveforms.
Spesifikasi
| Part Number | 777794-01 |
|---|---|
| Number of Analog Output Channels | 4 |
| Analog Output Resolution | 12 bits |
| Maximum Analog Update Rate | 1 MS/s |
| Analog Output Voltage Range | -10 V to 10 V |
| Bus Connector | PXI Hybrid |
| Bus Connection | PXI Hybrid |
| Analog Output Isolation | None |
| Front Connection Type | SCSI Type(1) |
| Maximum Current Drive | 5 mA |
| Product Description | PXI-6711 Analog Output Device for PXI and NI-DAQ forWindows |
