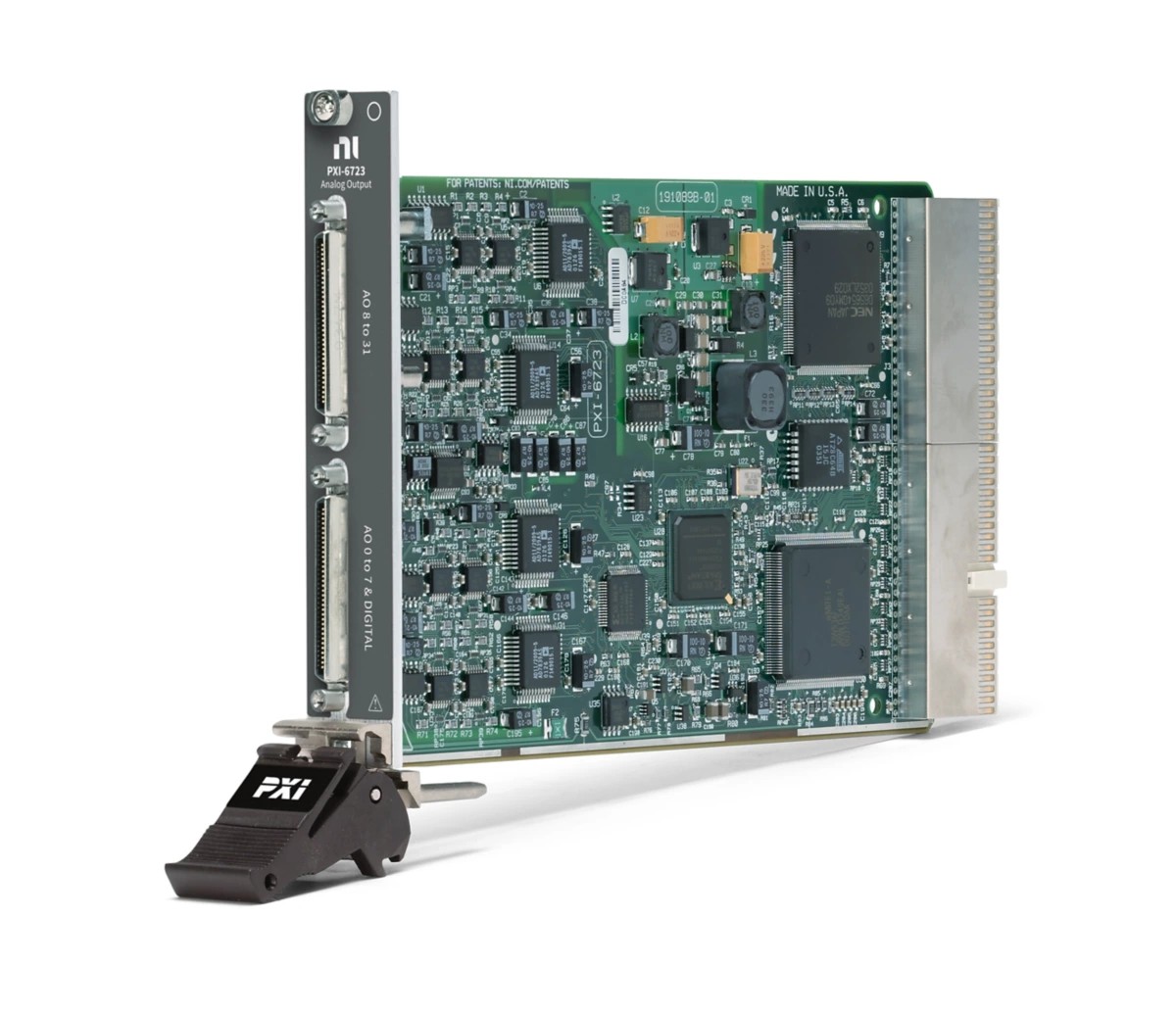

NI PXI-6723 32 ch Analog Output Module
13-Bit, 32-Channel, 800 kS/s PXI Analog Output Module
The PXI-6723 delivers low-cost, high-density analog outputs to meet a wide range of applications, such as stimulus-response, signal simulation, waveform generation, and actuator stimulation. In addition, the device provides eight 5 V TTL/CMOS digital I/O lines; two 24-bit, 20 MHz counter/timers; and digital triggering and external clocking capabilities.
The PXI-6723 can replace several kinds of instruments, including stand-alone proportional integral derivative (PID) controllers, low-speed arbitrary waveform generators, and function generators. You can control each data point for each channel to define common waveforms, such as square, sine, or sawtooth, as well as complex waveforms.
Spesifikasi
| Part Number | 778998-01 |
|---|---|
| Number of Analog Output Channels | 32 |
| Analog Output Resolution | 13 bits |
| Maximum Analog Update Rate | 800 kS/s |
| Analog Output Voltage Range | -10 V to 10 V |
| Bus Connector | PXI Hybrid |
| Bus Connection | PXI Hybrid |
| Maximum Number of Differential Analog Input Channels | 0 |
| Number of Current Output Channels | 0 |
| Analog Output Isolation | None |
| Number of Bidirectional Digital Channels | 8 |
| Digital I/O Logic Levels | 5 V TTL |
| Operating Temperature Range | 0 °C to 55 °C |
| Number of Counters/Timers | 2 |
| Front Connection Type | VHDCI(2) |
| Maximum Current Drive | 5 mA |
| Product Description | NI PXI-6723 32 ch Analog Output Module |
