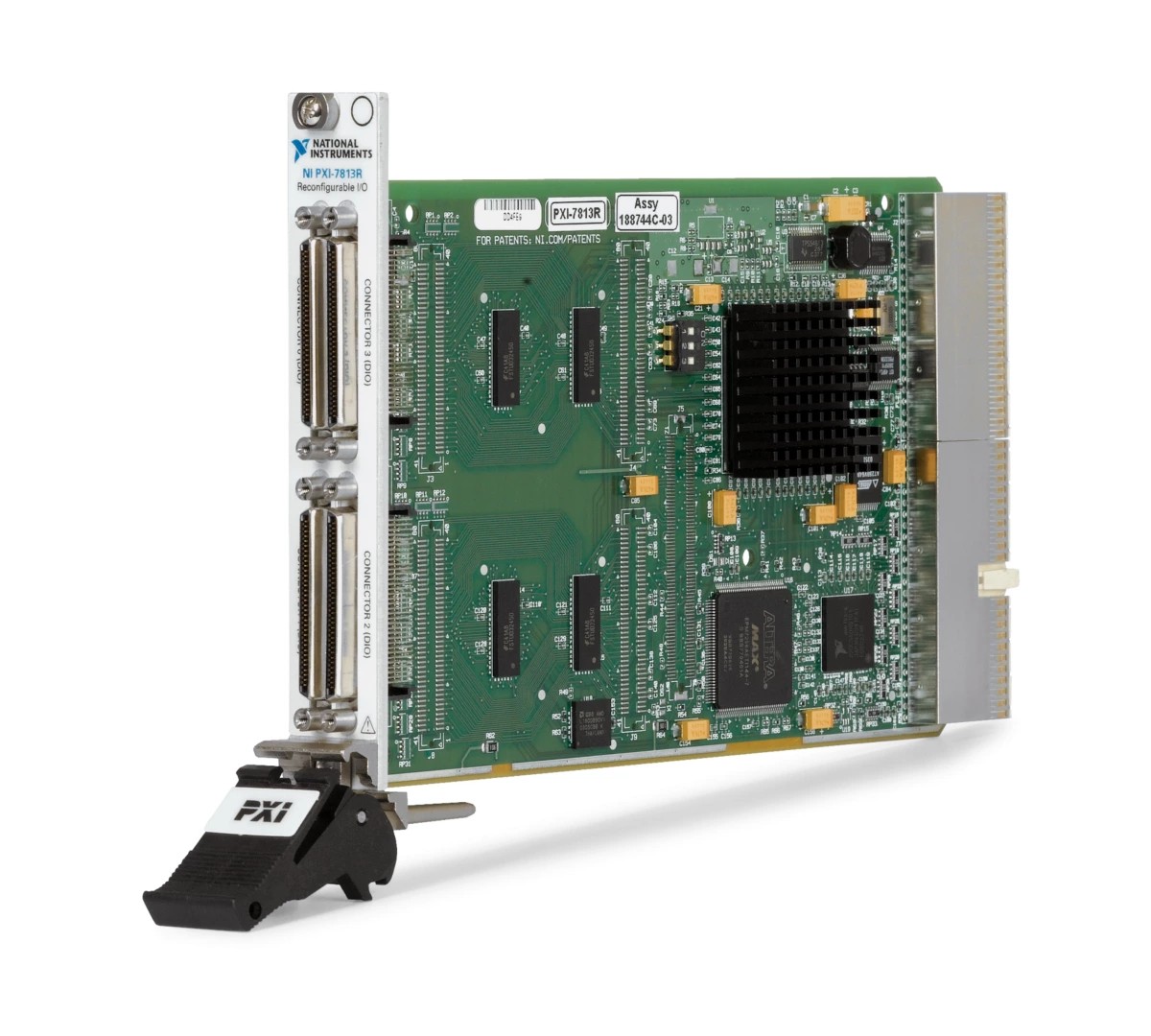

NI PXI-7813R 3M Gate Digital RIO (160 DIO)
Virtex-II 3M Gate FPGA, 160 DIO, PXI Digital Reconfigurable I/O Module
The PXI-7813 is a reconfigurable I/O (RIO) device that features a user-programmable FPGA for onboard processing and flexible I/O operation. With LabVIEW FPGA, you can individually configure the digital lines as inputs, outputs, counter/timers, PWM, encoder inputs, or specialized communication protocols. You can also program custom onboard decision making that executes with hardware-timed speed and reliability.
The PXI-7813 is well-suited for a wide variety of applications, such as high-speed waveform generation, sensor simulation, hardware-in-the-loop (HIL) test, custom communications protocols, bit error rate test, and other applications that require precise timing and control.
Spesifikasi
| Part Number | 779362-01 |
|---|---|
| Bus Connector | PXI |
| Maximum Clock Rate | 40 MHz |
| Number of Bidirectional Digital Channels | 160 |
| Digital I/O Logic Levels | 3.3 V#5 V |
| Dynamic RAM (DRAM) | 0 MB |
| Number of External Clock Inputs | 0 |
| FPGA | Virtex-II 3M |
| Supports Peer To Peer Streaming | No |
| Reconfigurable | Yes |
| Bus Connection | PXI |
| Front Connection Type | VHDCI(4) |
| Signaling Type | Single-Ended |
| Supported Hardware Platform | PXI |
| Digital I/O Termination | 0 Ohm |
| Output Voltage Range | 0 V to 3.3 V |
| Maximum Acquisition Rate | 40 MHz |
| Maximum Generation Rate | 40 MHz |
| Maximum Active Load | 40 |
| Maximum Data Rate | 40 MHz |
| Module Width | 1 |
| Onboard Memory | 0 MB |
| Supports Hardware Compare | No |
| Product Description | NI PXI-7813R 3M Gate Digital RIO (160 DIO) |
