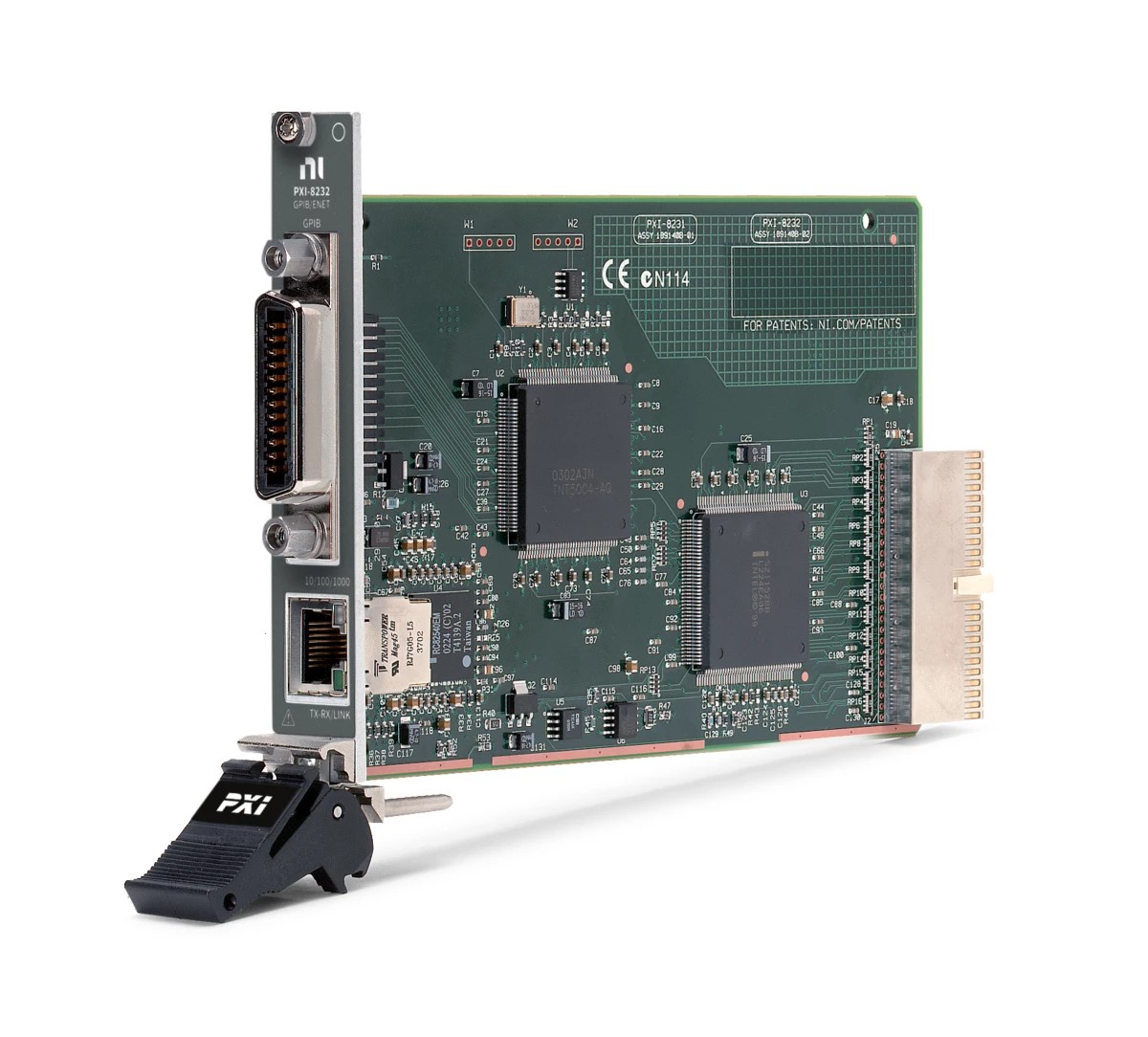

NI PXI-8232, GIGE and GPIB Controller for Windows and LabVIEW RT
Gigabit Ethernet, IEEE 488 PXI GPIB Instrument Control Module
The PXI-8232 combines a high-performance GPIB controller and a Gigabit Ethernet port into a single-slot module. You can use this module to integrate non-PXI instruments into a PXI system.
The PXI-8232 takes advantage of the Intel 82540EM Gigabit Ethernet controller. The 1,000 Mbit/s Gigabit Ethernet transfer rate provides a substantial performance increase over the Fast Ethernet transfer rate while remaining compatible with 10BASE-T and 100BASE-TX Fast Ethernet networks. You also can use the Ethernet port on the PXI-8232 as an EtherCAT master, which is programmed with the NI-Industrial Communications for EtherCAT software in LabVIEW.
This module includes a license for the NI-488.2 driver software, providing maximum reliability for connecting to third-party instruments with GPIB.
Spesifikasi
| Part Number | 781753-01 |
|---|---|
| Driver Development kit | No |
| Supported Operating System | Windows#Real-Time OS |
| Has Ethernet Port | Yes |
| Bus Connection | PXI Hybrid |
| Operating Temperature Range | 0 °C to 55 °C |
| Maximum Baud Rate | 7885 kB/s |
| Front Connection Type | GPIB (IEEE 488)(1)#RJ45(1) |
| Supported Power Input | Bus Powered |
| Product Description | NI PXI-8232, GIGE and GPIB Controller for Windows and LabVIEW RT |
