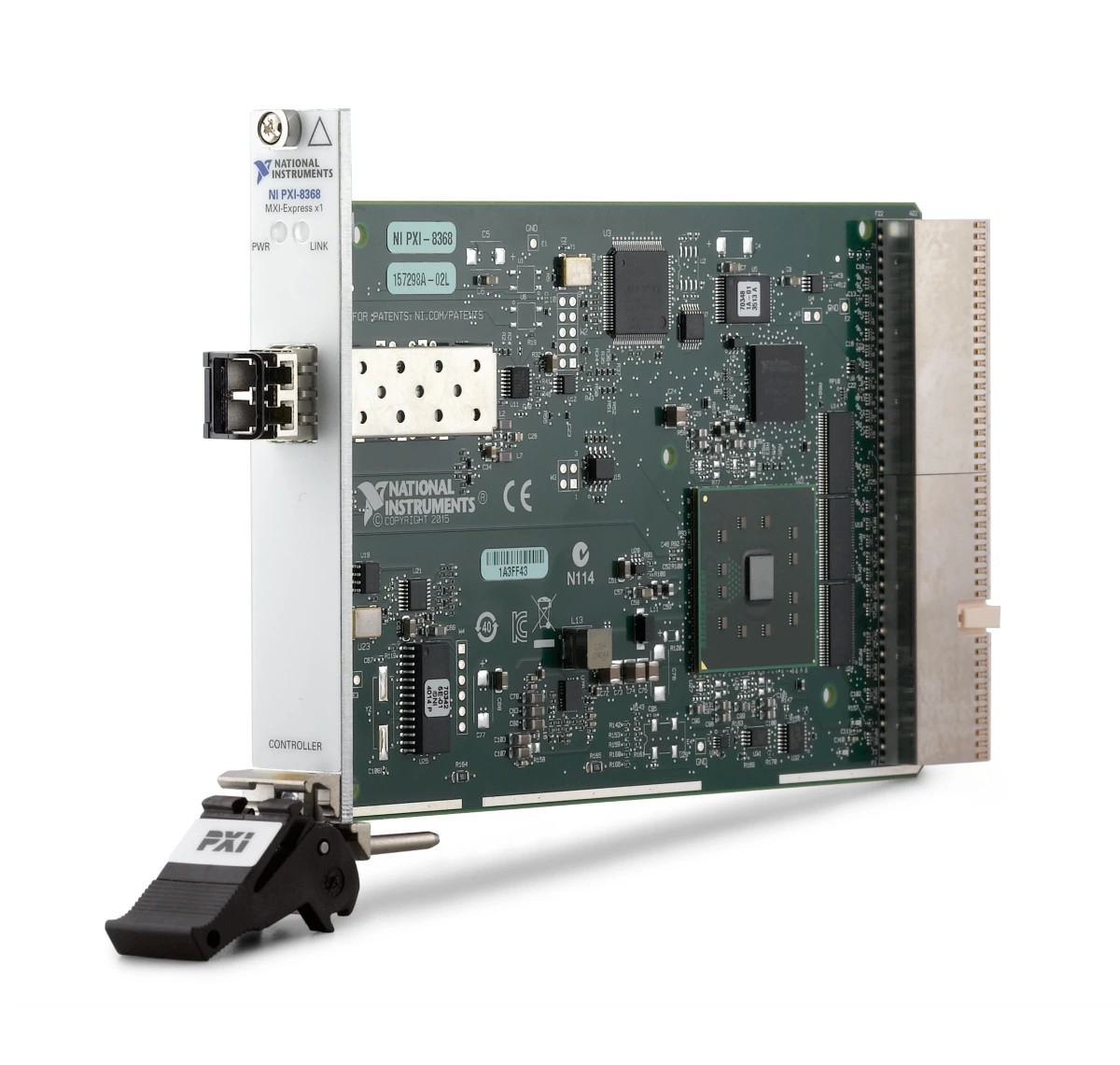

NI PXI-8368 MXI-Express Interface with Connector for Fiber Cable
MXI-Express Interface with Connector for Fiber Cable, PXI Remote Control Module
The PXI-8368 allows you to control PXI and CompactPCI systems from your PC using a fully transparent MXI-Express link. It is installed in a PXI chassis and uses a PCI Express-to-PCI bridge to interface with an installed PCI-8366 through a copper, x1 MXI-Express cable. The fiber-optic cabling of the PXI-8368 provides electrical isolation between the PC and PXI chassis, as well as cabling up to 200 m per link.
Spesifikasi
| Part Number | 783934-01 |
|---|---|
| Supported Cable Type | Fiber Optic |
| Supports Daisy Chaining | No |
| Bus Connection | PXI Controller |
| MXI Communication Level | MXI-Express x1 |
| MXI Bandwidth | 132 MB/s |
| Number of MXI Ports | 1 |
| Operating Temperature Range | 0 °C to 55 °C |
| Product Description | NI PXI-8368 MXI-Express Interface with Connector for Fiber Cable |
