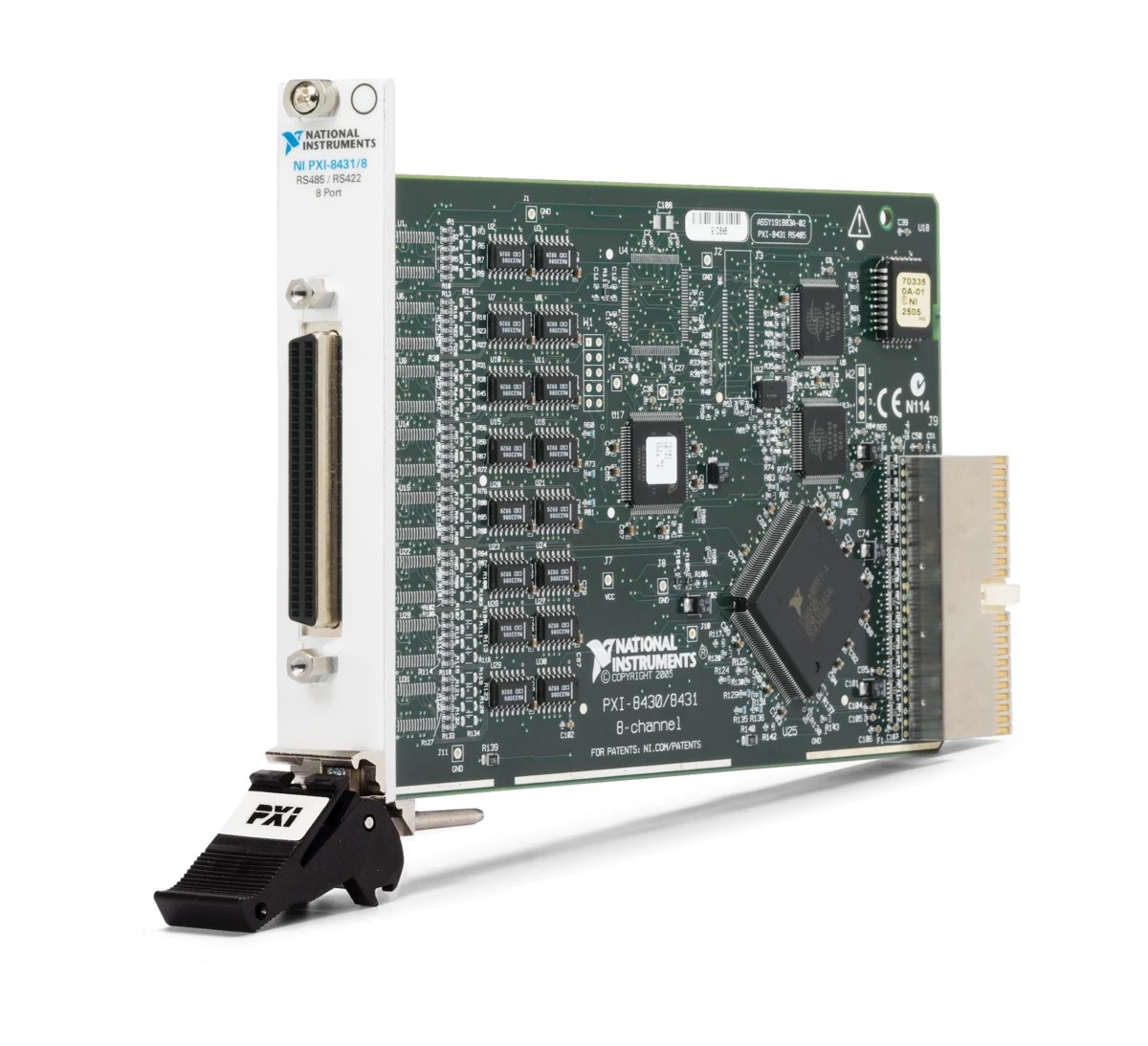

PXI-8431/8, RS422/485, 8 Port Serial Interface
8-Port, RS485/RS422 PXI Serial Interface Module
The PXI-8431/8 is a high-performance interface for high-speed communication with RS485 and RS422 devices. It features high-performance DMA transfers, multithreading, and multiprocessor support. You can also select between 4- and 2-wire transceiver modes for full- and half-duplex communication. NI serial interfaces also appear as standard COM ports for compatibility with programs that use serial communications.
Spesifikasi
| Part Number | 779537-01 |
|---|---|
| Bus Connection | PXI Hybrid |
| Isolation Type | None |
| Number of Serial Channels | 8 |
| Supported Serial Protocols | RS485#RS422 |
| Operating Temperature Range | 0 °C to 55 °C |
| Maximum Baud Rate | 3 Mbits/s |
| Front Connection Type | SCSI Type(1) |
| Number of Bidirectional Digital Channels | 8 |
| Product Description | PXI-8431/8, RS422/485, 8 Port Serial Interface |
