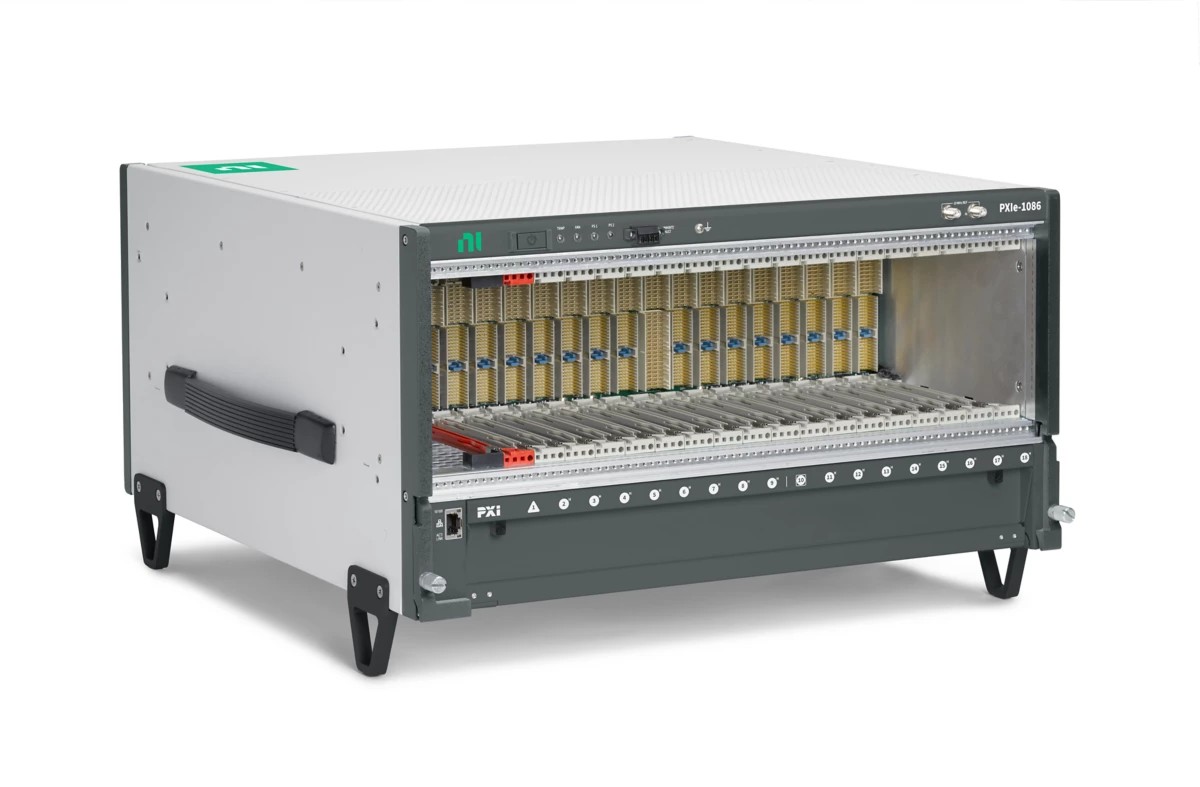

NI PXIe-1086, 18-Slot 3U PXI Express Redundant Chassis
PXIe, 18-Slot (16 Hybrid Slots, 1 PXI Express Slot), Up to 12 GB/s PXI Chassis
The PXIe-1086 incorporates hot-swappable, redundant AC power supplies as well as hot-swappable, front-accessible, redundant cooling fans. These high-availability features improve the mean time between failure (MTBF) and mean time to repair (MTTR) of the PXI system. The PXIe-1086 monitors power supply health/voltages, air intake temperature, and fan health/speed; it provides any failure feedback with the status LEDs located on the chassis. This chassis is ideal for test, measurement, and control applications with demanding system uptime requirements.
Spesifikasi
| Part Number | 781720-01 |
|---|---|
| PXI Chassis Type | PXI Express |
| Slot Count | 18 |
| Number of Hybrid Slots | 16 |
| Number of PXI Express Slots | 1 |
| Chassis Power Supply Type | AC |
| Slot Cooling Capacity | 38 W |
| Maximum System Bandwidth | 12 GB/s |
| System Timing Slot | Yes |
| External Trigger Access | No |
| External Clocking | Yes |
| Onboard Clock Type | VCXO |
| Redundant HW Option | Yes |
| Number of PXI Slots | 0 |
| Operating Temperature Range | 0 °C to 50 °C |
| Product Description | NI PXIe-1086, 18-Slot 3U PXI Express Redundant Chassis |
