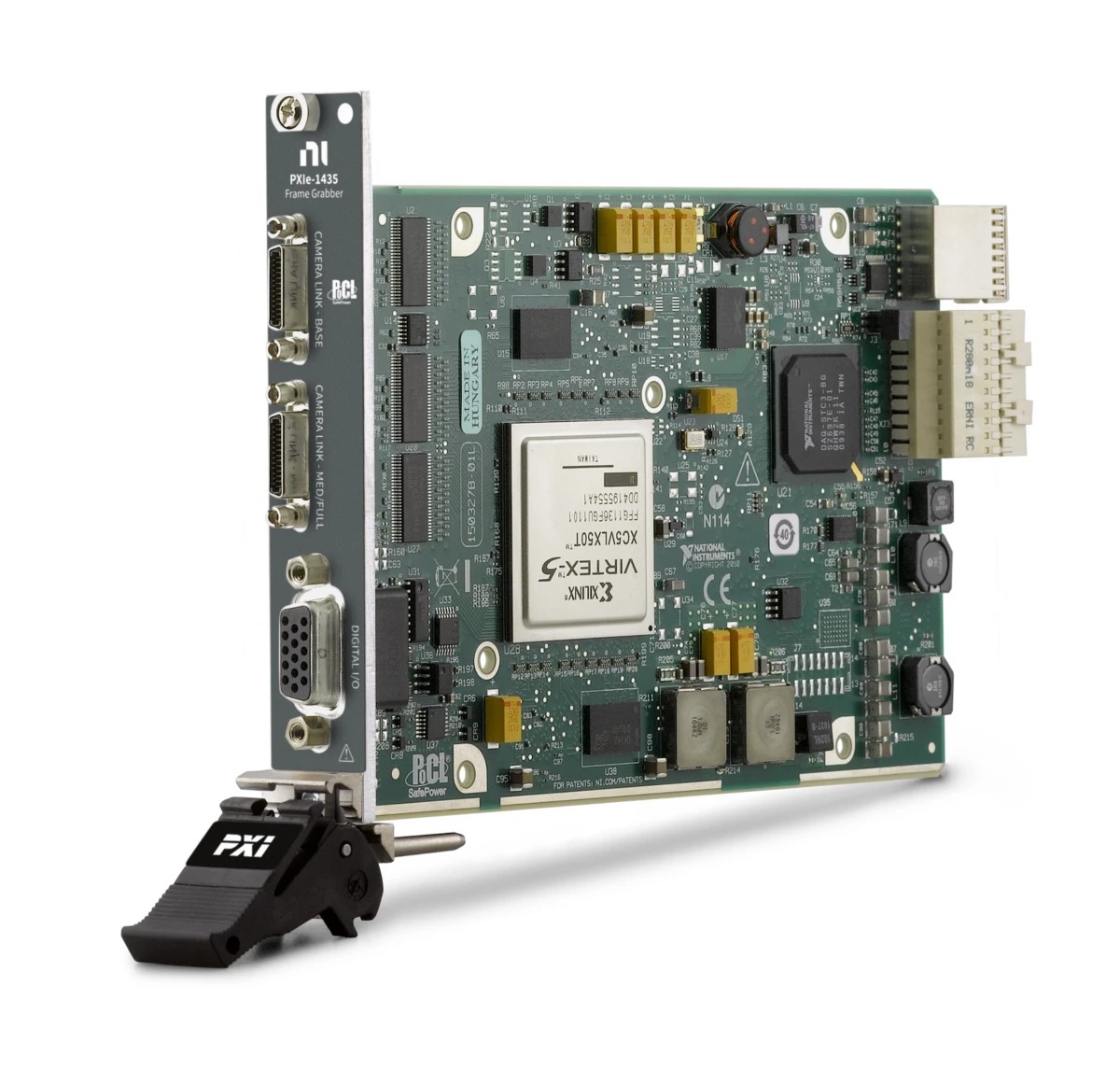

NI PXIe-1435 Camera Link Frame Grabber(Base/Medium/Full/Extended)
Base-, Medium-, Full-Configuration Camera Link PXI Frame Grabber Module
The PXIe-1435 is a Camera Link image acquisition device designed for machine vision and scientific imaging applications that require high data throughput. The PXIe-1435 works with any base-, medium-, and full-configuration Camera Link camera, and it is ideal for many industrial, life science, and biomedical imaging applications.
The PXIe-1435 also supports Power over Camera Link (PoCL) and can power cameras through PoCL-enabled cables. The onboard digital I/O includes four TTL, two optoisolated inputs, and one quadrature encoder.
Spesifikasi
| Part Number | 781699-01 |
|---|---|
| Camera Interface Type | Camera Link |
| Number of Camera Input Ports | 1 |
| Reconfigurable | No |
| Number of TTL Inputs | 4 |
| Number of Quadrature Encoder Inputs | 1 |
| Number of Isolated Digital Inputs | 2 |
| Supported Hardware Platform | PXI |
| Bus Connection | PXI Express |
| Number of Cameras Supported | 1 |
| Camera Powered Over Interface | Yes |
| Product Description | NI PXIe-1435 Camera Link Frame Grabber(Base/Medium/Full/Extended) |
