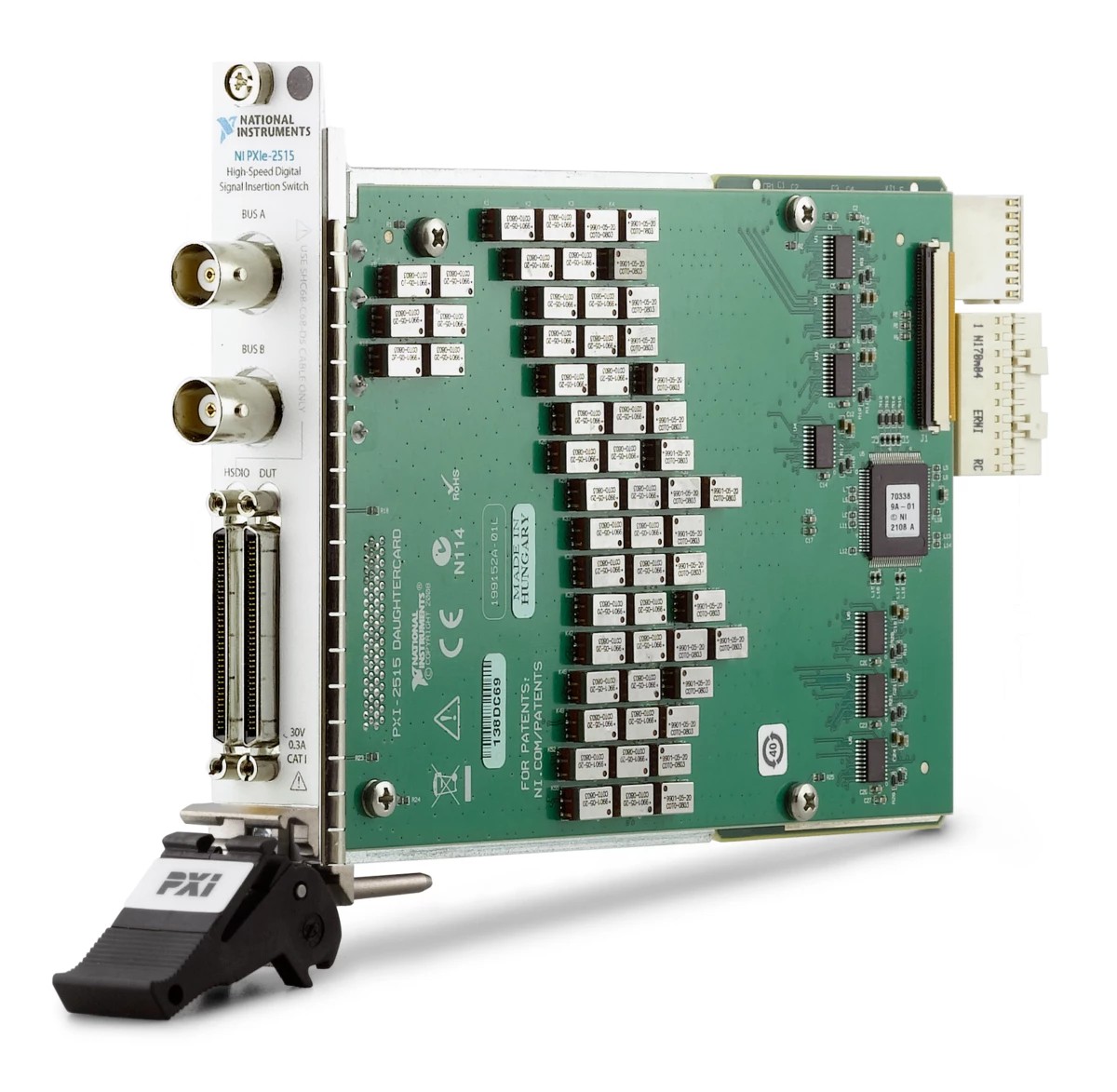

NI PXIe-2515 32-Ch High-Speed Digital I/O Signal Insertion Switch
PXIe, 35-Channel, 0.25 A PXI Signal Insertion Switch Module
The PXIe-2515 is a multiplexer switch module that enables connectivity by routing high-speed digital I/O (DIO) signals between a device under test (DUT) and an NI high-speed DIO device or a parametric measurement device. You can use modules such as PXI Source Measure Units (SMUs) and PXI Digital Multimeters (DMMs) with high-speed digital devices. With the PXIe-2515, you can perform parametric tests on digital pins without external connectivity or impedance mismatch challenges.
Spesifikasi
| Part Number | 780587-15 |
|---|---|
| Bus Connection | PXI Express |
| Maximum Switching Current DC | 0.25 A |
| Maximum Switching Voltage DC | 30 V |
| Relay Type | Reed |
| Number of Channels | 32 |
| Switch Bandwidth | 50 MHz |
| Supported Hardware Platform | PXI |
| Maximum Carry Current AC | 0.3 A |
| Maximum Switching Voltage AC | 30 V |
| Number of Columns | 1 |
| Number of Rows | 35 |
| Row Access | Yes |
| Product Description | NI PXIe-2515 32-Ch High-Speed Digital I/O Signal Insertion Switch |
