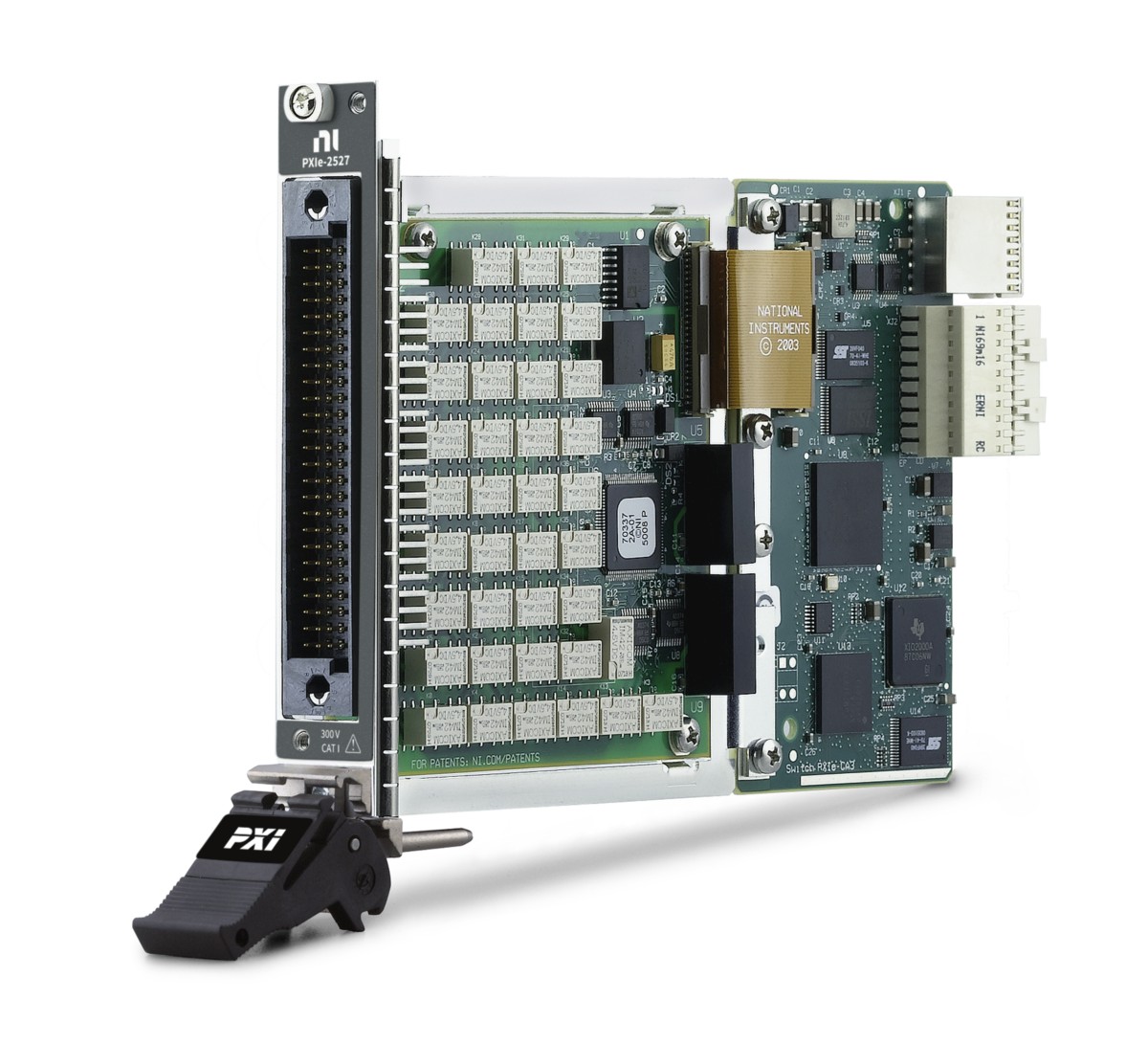

NI PXIe-2527 64-Channel 300V CAT I Multiplexer
32‐Channel, 300 V, 2‐Wire PXI Multiplexer Switch Module
The PXIe-2527 is a high‐voltage PXI multiplexer switch module that is ideal for medium- to high-density automated test applications. Featuring high-power electromechanical relays, the PXIe-2527 is the perfect front end for the PXI DMM modules, offering simple channel expansion for a variety of measurements. The PXIe-2527 supports multiple channel configurations including 64×1 1-wire, 32×1 2-wire, and 16×1 4-wire. It also features onboard relay counting for relay monitoring and deterministic operation with hardware triggers to improve test throughput.
Spesifikasi
| Part Number | 780587-27 |
|---|---|
| Scan Rate | 140 cycles/s |
| Mode (n-wire) | 1-wire#2-wire#4-wire |
| Bus Connector | PXI Express |
| Maximum Switching Current DC | 2 A |
| Maximum Switching Voltage DC | 300 V |
| Relay Type | Electromechanical |
| Switch Bandwidth | 30 MHz |
| Number of Channels | 16#32#64 |
| Number of Banks | 1#2 |
| Supported Hardware Platform | PXI |
| Bus Connection | PXI Express |
| Crosspoints | 64 |
| Maximum Carry Current AC | 2 A |
| Maximum Switching Voltage AC | 300 V |
| Number of Columns | 1 |
| Number of Rows | 64 |
| Row Access | Yes |
| Termination | Yes |
| Product Description | NI PXIe-2527 64-Channel 300V CAT I Multiplexer |
