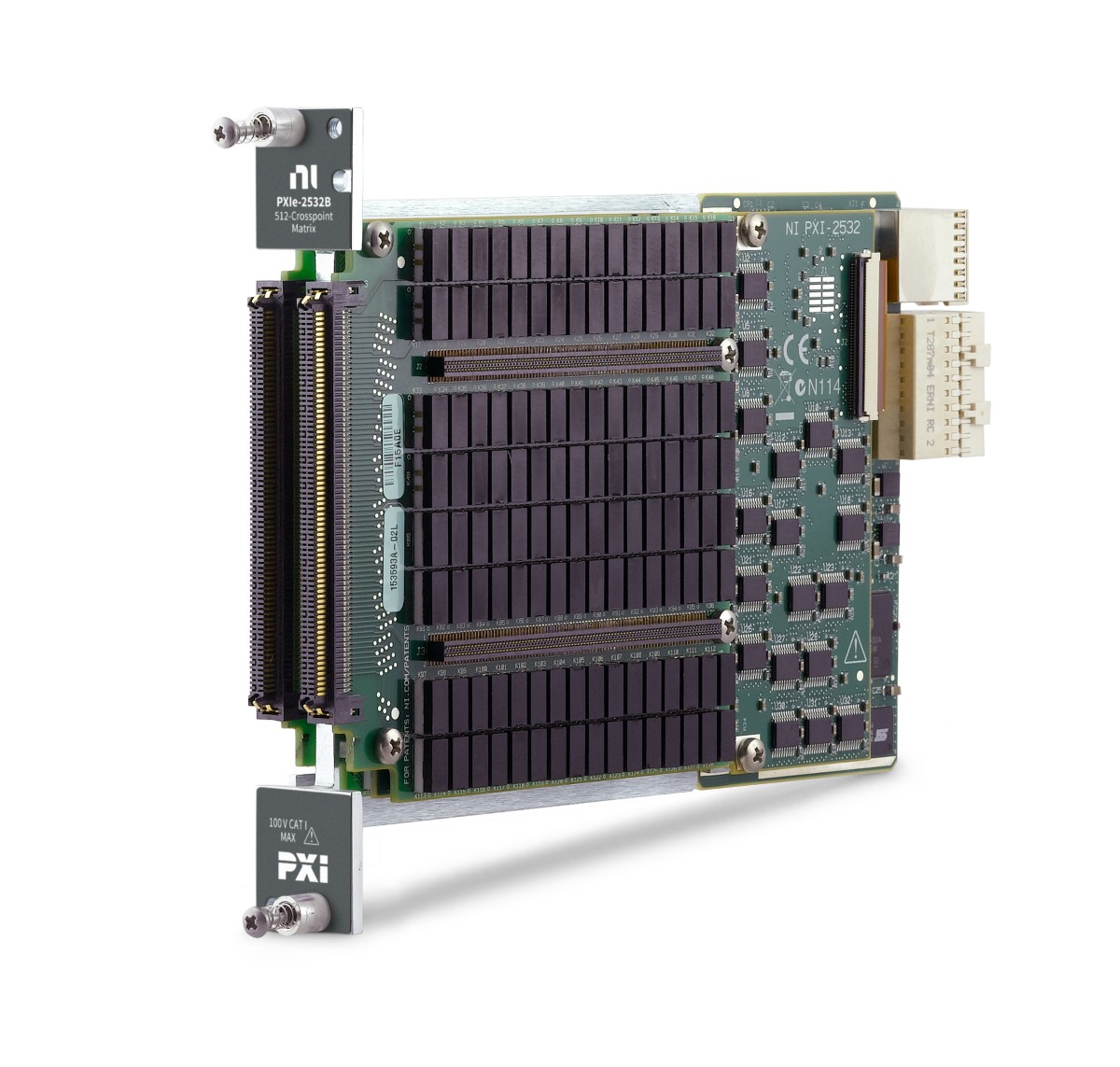

PXIe-2532B PXI Matrix Switch Module, 512-Crosspoint, Reed Relay, .5 A, 100 V
The PXIe-2532B is a high-density PXI matrix switch module built to serve high-channel-count automated test systems.
The PXIe-2532B is a high-density PXI matrix switch module built to serve high-channel-count automated test systems. Featuring compact reed relays with switching speeds up to 2,000 cycles/s, the PXIe-2532B can be configured in more than 10 matrix topologies by using different terminal block accessories. It also features onboard relay counting for relay monitoring and deterministic operation with hardware triggers to improve test throughput.
Spesifikasi
| Part Number | 782384-01 |
|---|---|
| Number of Columns | 16#32#64#128 |
| Crosspoints | 512 |
| Scan Rate | 2000 cycles/s |
| Bus Connector | PXI Express |
| Maximum Switching Current DC | 0.5 A |
| Maximum Switching Voltage DC | 100 V |
| Number of Rows | 2#4#8#16 |
| Relay Type | Reed |
| Switch Bandwidth | 30 MHz |
| Mode (n-wire) | 1-wire#2-wire |
| Number of Banks | 1#2#4#16 |
| Supported Hardware Platform | PXI |
| Bus Connection | PXI Express |
| Maximum Carry Current AC | 0.5 A |
| Maximum Switching Voltage AC | 100 V |
| Number of Channels | 512 |
| Number of Relays | 512 |
| Row Access | Yes |
| Termination | Yes |
| Product Description | PXIe-2532B PXI Matrix Switch Module, 512-Crosspoint, Reed Relay, .5 A, 100 V |
