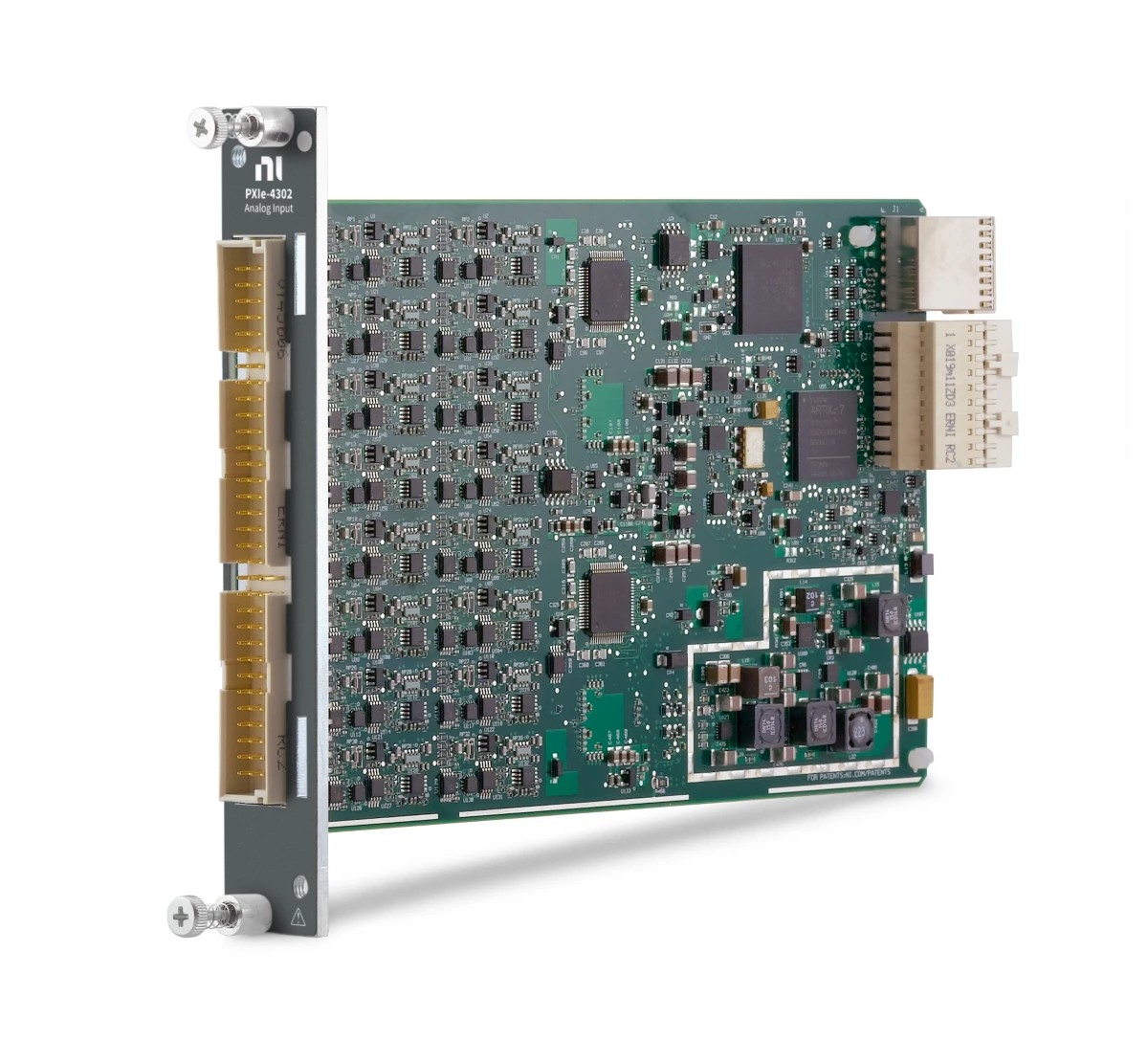

NI PXIe-4302 +/-10V, 32-Ch, 24-bit, 5kS/s/ Voltage Input Module
24-Bit, 32-Channel, 5 kS/s, ±10 V PXI Analog Input Module
The PXIe-4302 is a filtered input module for voltage, thermocouple, and current measurements. The module has an A/D converter per channel to enable a simultaneous sample rate of 5 kS/s. The PXIe-4302 offers you the ability to select a digital filter per channel to provide extra filtering performance. You also can operate up to four different sample rates and triggering configurations concurrently to ensure you measure every sensor as needed. The included NI-DAQmx driver simplifies hardware configuration and measurement.
Spesifikasi
| Part Number | 783865-01 |
|---|---|
| Maximum Sample Rate | 5 kS/s/ch |
| Analog Input Voltage Range | -0.1 V to 0.1 V; -10 V to 10 V |
| Maximum Number of Differential Analog Input Channels | 32 |
| Analog Input Resolution | 24 bits |
| Discrete Low-Pass Filter | 2 Hz#20 Hz#200 Hz#1 kHz#2 kHz |
| Filtering | Anti-Alias |
| Bus Connection | PXI Express |
| Simultaneous Sampling | Yes |
| Analog Input Absolute Accuracy | 4362 μV |
| Front Connection Type | DIN(1) |
| Operating Temperature Range | 0 °C to 55 °C |
| Product Description | NI PXIe-4302 +/-10V, 32-Ch, 24-bit, 5kS/s/ Voltage Input Module |
