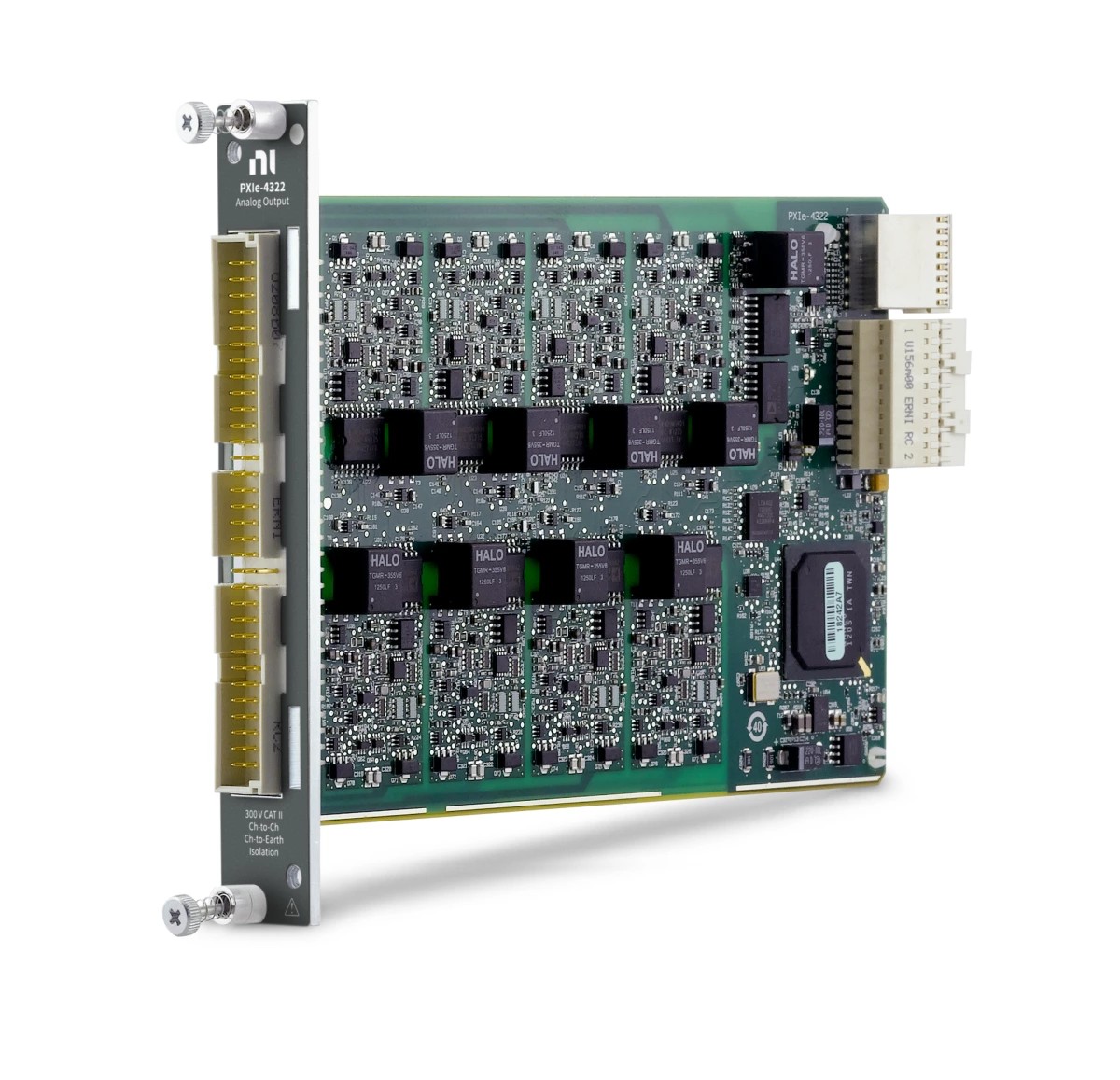

NI PXIe-4322 Isolated Analog Output Module
16-Bit, 8-Channel, 250 kS/s Ch-Ch Isolated PXI Analog Output Module
The PXIe-4322 is a channel-to-channel isolated analog output module with integrated signal conditioning. The device provides accurate, simultaneous dynamic voltage and current outputs. By combining signal conditioning and D/A converters on the same device, the PXIe-4322 isolated analog output module delivers a smaller footprint and higher measurement performance. In current mode, the module operates in all four quadrants, so you can both sink and source current. Isolation and higher voltage and current outputs make this module ideal for automotive applications.
Spesifikasi
| Part Number | 782878-01 |
|---|---|
| Number of Analog Output Channels | 8 |
| Analog Output Resolution | 16 bits |
| Maximum Analog Update Rate | 250 kS/s |
| Analog Output Voltage Range | -16 V to 16 V |
| Bus Connector | PXI Express |
| Output Current Range | -20 mA to 20 mA |
| Bus Connection | PXI Express |
| Maximum Number of Single-Ended Analog Input Channels | 0 |
| Number of Current Output Channels | 8 |
| Analog Output Isolation | 300 Vrms Ch-Ch Isolation |
| Number of Bidirectional Digital Channels | 0 |
| Operating Temperature Range | 0 °C to 55 °C |
| Number of Counters/Timers | 0 |
| Front Connection Type | DIN(1) |
| Maximum Current Drive | 20 mA |
| Product Description | NI PXIe-4322 Isolated Analog Output Module |
