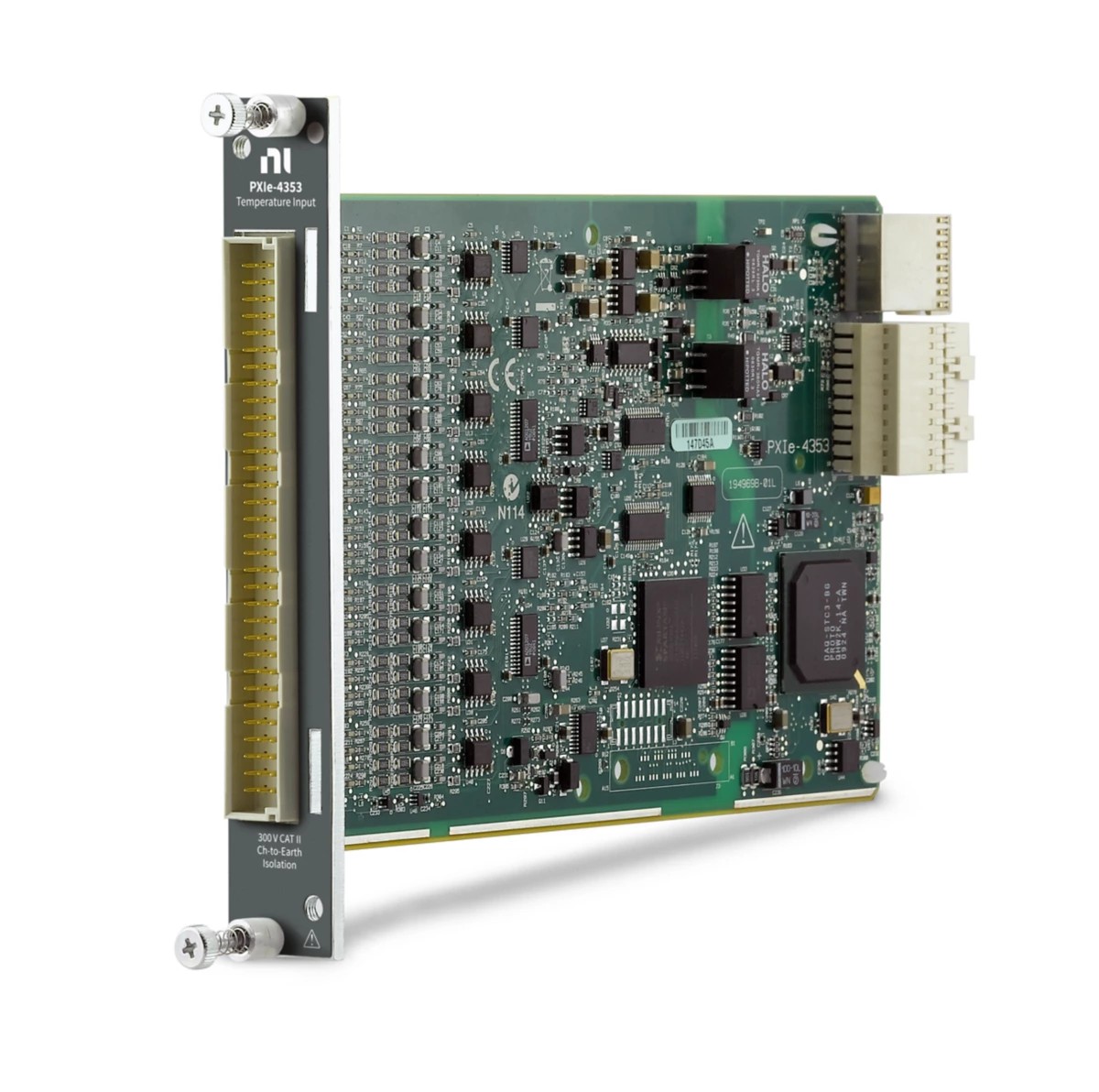

PXIe-4353 32-Ch Thermocouple Input
32-Channel, 24-Bit PXI Temperature Input Module
The PXIe-4353 is a thermocouple input module that provides integrated data acquisition and signal conditioning for temperature measurements. The PXIe-4353 includes increased accuracy and synchronization features for scalable measurement systems from low- to high-channel counts. The high accuracy is attributed to the NI TB-4353 isothermal terminal block that optimizes thermal conductivity between the thermocouple terminals and the cold-junction compensation (CJC) channels. The PXIe-4353 has two auto zero channels for offset compensation as well as open thermocouple detection to identify disconnected thermocouples.
Spesifikasi
| Part Number | 781348-01 |
|---|---|
| Maximum Number of Differential Analog Input Channels | 32 |
| Supported Sensor Type | Thermocouple |
| Analog Input Isolation | 300 V Bank Isolation |
| Number of Analog Input Channels | 32 |
| Analog Input Voltage Range | -80 mV to 80 mV |
| Simultaneous Sampling | No |
| Operating Temperature Range | 0 °C to 55 °C |
| Bus Connection | PXI Express |
| Front Connection Type | DIN(1) |
| Product Description | PXIe-4353 32-Ch Thermocouple Input |
