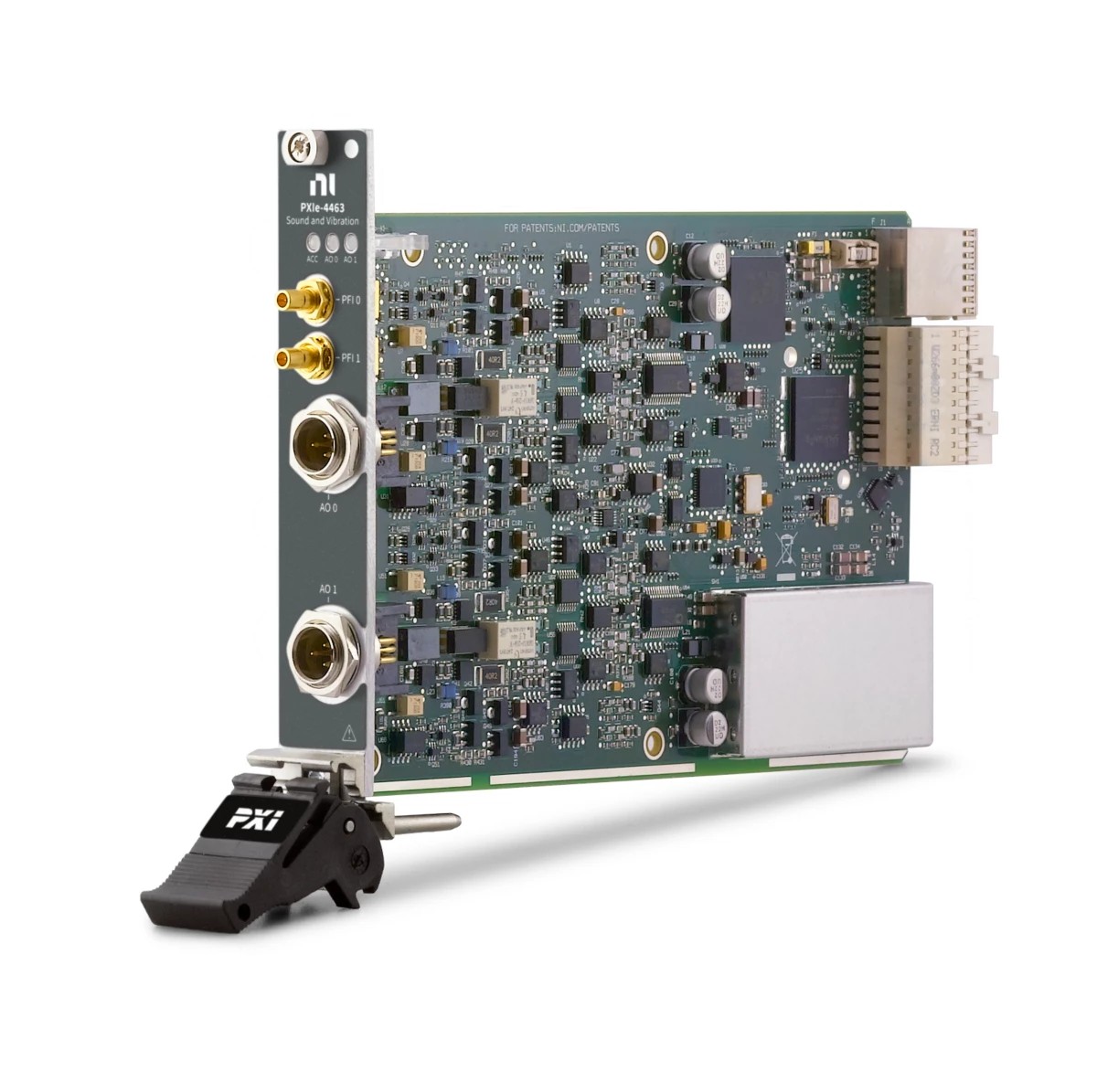

PXIe 4463,24-bit Analog Output Dynamic Signal Generator mXLR Conn
51.2 kS/s, 2-Output PXI Sound and Vibration Module
The PXIe-4463 offers high dynamic range and THD+N for audio, acoustic, and vibration applications. It provides the high precision and dynamic range necessary for the most stringent audio generation requirements in a modular form factor.
The PXIe-4463 contains two 24-bit digital-to-analog converters to allow for fully differential simultaneous generation. Complete with three gain ranges, the PXIe-4463 can generate current with programmable, per channel output configurations. The two timing engines allow you to perform multisample-rate applications on a single module and independently start and stop channels on a single module.
Model & Varian
| Model | Part Number | Front Connection Type | Product Description |
|---|---|---|---|
| PXIe-4463 | 783086-02 | Mini-XLR(2)#SMB(2) | PXIe 4463,24-bit Analog Output Dynamic Signal Generator mXLR Conn |
| PXIe-4463 | 783086-01 | BNC(2)#SMB(2) | PXIe 4463,24-Bit Analog Output Dynamic Signal Generator BNC Conn |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Part Number | 783086-02 |
|---|---|
| Number of Analog Output Channels | 2 |
| Bus Connection | PXI Express |
| Number of Gain Settings | 3 |
| Highpass Filter Cut-Off Frequency | 3.4 Hz |
| Front Connection Type | Mini-XLR(2)#SMB(2) |
| Maximum Sample Rate | 51.2 kS/s |
| DSA Dynamic Range | 116 dB |
| Maximum Analog Update Rate | 51.2 kS/s |
| Number of Analog Input Channels | 0 |
| Analog Output Voltage Range | -10 V to 10 V |
| Simultaneous Sampling | Yes |
| Operating Temperature Range | 0 °C to 55 °C |
| Analog Input Isolation | None |
| Product Description | PXIe 4463,24-bit Analog Output Dynamic Signal Generator mXLR Conn |
