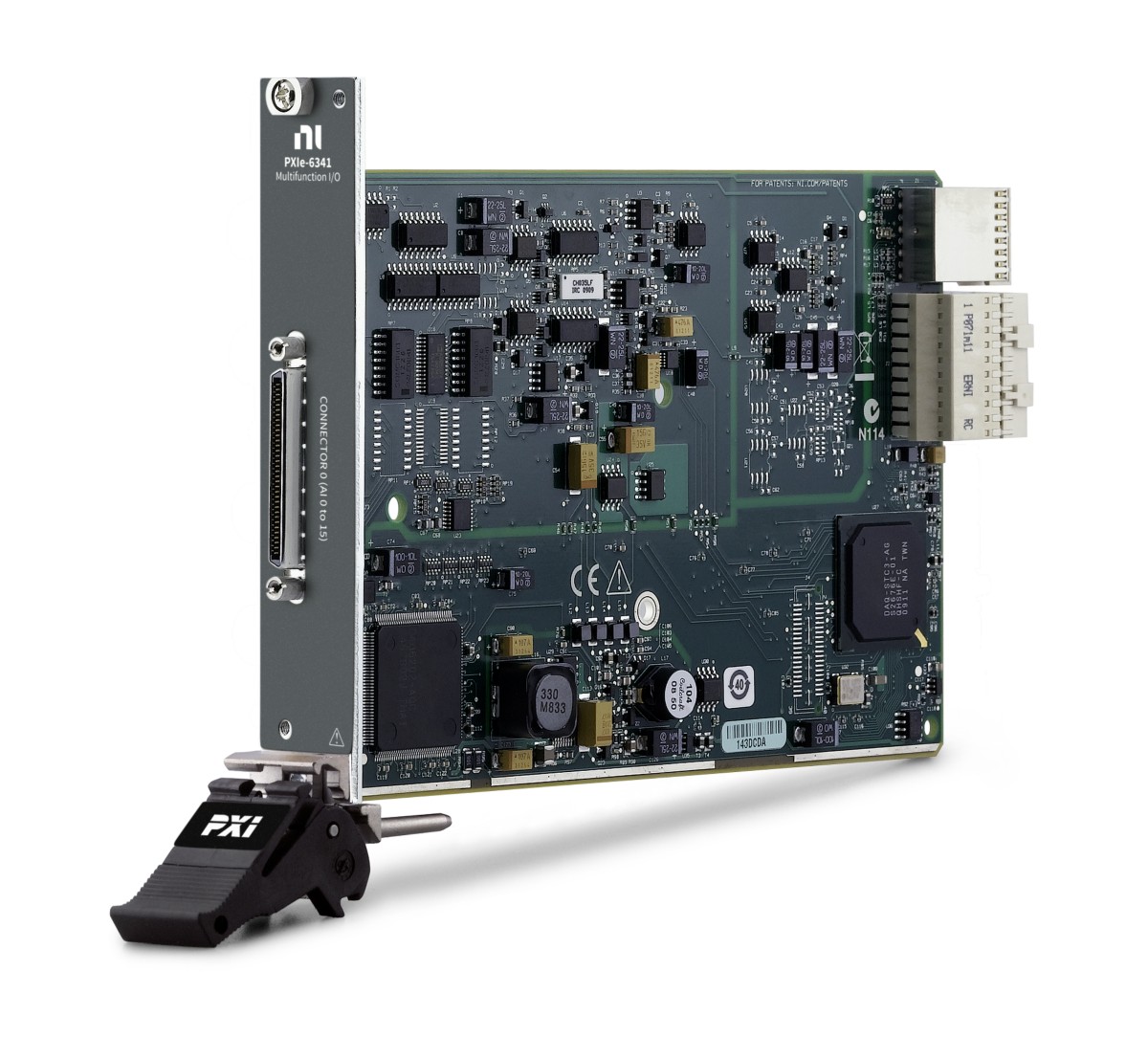

PXIe-6341, X Series DAQ (16 AI, 24 DIO, 2 AO)
PXIe, 16 AI (16-Bit, 500 kS/s), 2 AO, 24 DIO, PXI Multifunction I/O Module
The PXIe-6341 offers analog I/O, digital I/O, and four 32-bit counter/timers for PWM, encoder, frequency, event counting, and more. The device delivers high-performance functionality leveraging the high-throughput PCI Express bus and multicore-optimized driver and application software. Onboard NI-STC3 timing and synchronization technology delivers advanced timing functionality, including independent analog and digital timing engines and retriggerable measurement tasks. The PXIe-6341 is well-suited for a broad range of applications, from basic data logging to control and test automation. The included NI-DAQmx driver and configuration utility simplify configuration and measurements.
Spesifikasi
| Part Number | 781052-01 |
|---|---|
| Maximum Number of Single-Ended Analog Input Channels | 16 |
| Analog Input Resolution | 16 bits |
| Simultaneous Sampling | No |
| Maximum Sample Rate | 500 kS/s |
| Analog Input Absolute Accuracy | 60 μV |
| Number of Counters/Timers | 4 |
| Number of Analog Output Channels | 2 |
| Maximum Analog Update Rate | 900 kS/s |
| Bus Connector | PXI Express |
| Number of Bidirectional Digital Channels | 24 |
| Electrical Signal Measured | Voltage |
| Analog Input FIFO Buffer Size | 2047 samples |
| Maximum Number of Differential Analog Input Channels | 8 |
| Reconfigurable | No |
| Number of Analog Input Channels | 16 |
| Maximum Digital Update Rate | 1 µs |
| Operating Temperature Range | 0 °C to 55 °C |
| Bus Connection | PXI Express |
| Digital I/O Logic Levels | 5 V |
| Front Connection Type | VHDCI(1) |
| Maximum Clock Rate | 10 MHz |
| Number of External Clock Inputs | 8 |
| Signaling Type | Single-Ended |
| Analog Input Voltage Range | -0.2 V to 0.2 V; -1 V to 1 V; -5 V to 5 V; -10 V to 10 V |
| Number of Voltage Output Channels | 2 |
| Analog Output Voltage Range | -10 V to 10 V |
| Analog Output Resolution | 16 bits |
| Product Description | PXIe-6341, X Series DAQ (16 AI, 24 DIO, 2 AO) |
