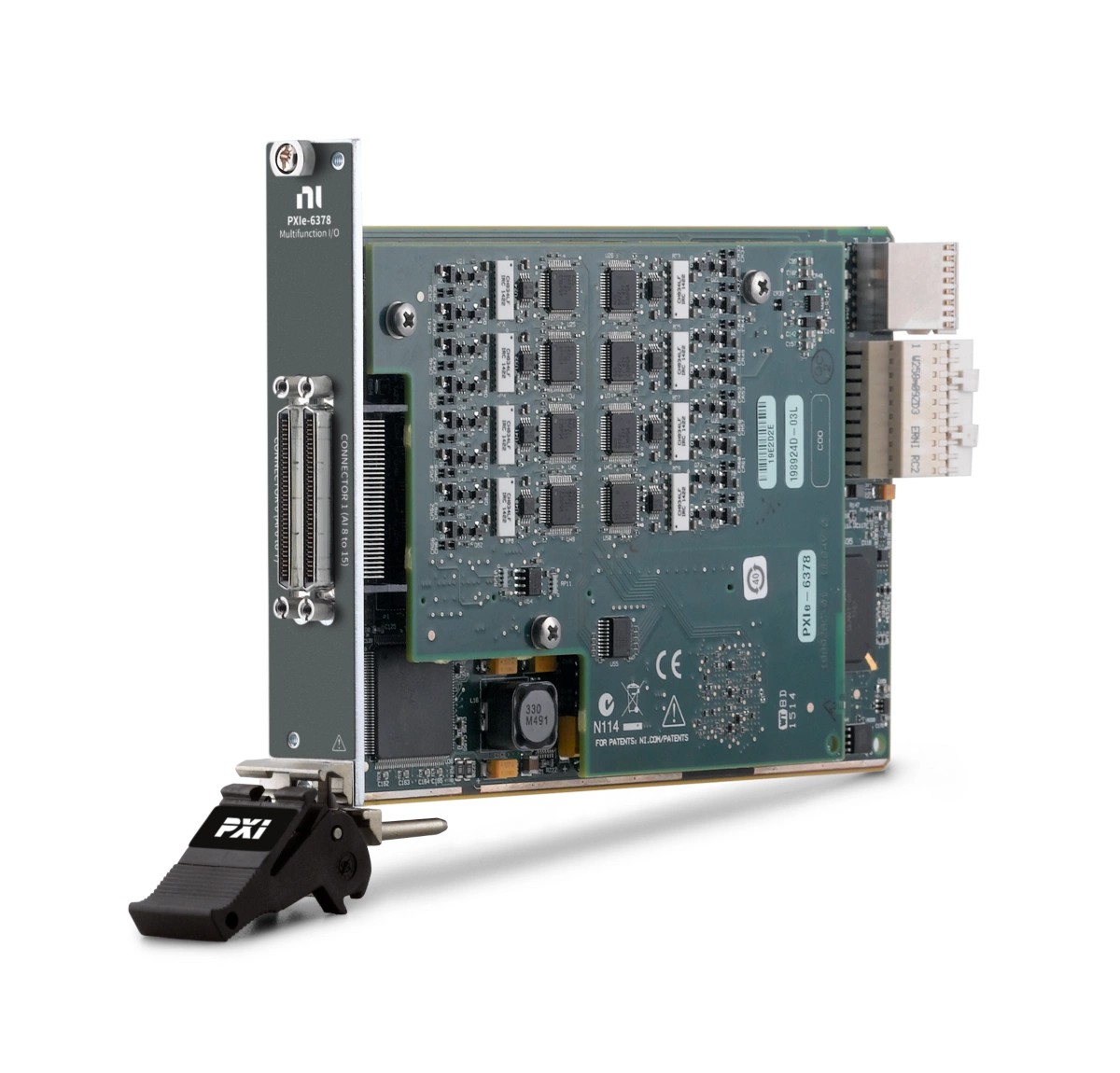

PXIe-6378, 3.5 MS/s/ch Multifunction I/O Module (16 Simultaneous AI, 48 DIO, 4 AO)
PXIe, 16 AI (16-Bit, 3.5 MS/s/ch), 4 AO, 48 DIO, PXI Multifunction I/O Module
The PXIe-6378 is a simultaneous sampling, multifunction DAQ device. It offers analog I/O, digital I/O, four 32-bit counters, and analog and digital triggering. Onboard NI-STC3 timing and synchronization technology delivers advanced timing functionality, including independent analog and digital timing engines and retriggerable measurement tasks. The PXIe-6378 is ideal for a variety of applications, such as IF digitization; transient recording; ISDN, ADSL, and POTS manufacturing test in the telecom industry; ultrasound and sonar testing; and high-energy physics. The included NI-DAQmx driver and configuration utility simplify configuration and measurements.
Spesifikasi
| Part Number | 781476-01 |
|---|---|
| Maximum Number of Single-Ended Analog Input Channels | 0 |
| Analog Input Resolution | 16 bits |
| Simultaneous Sampling | Yes |
| Maximum Sample Rate | 3.57 MS/s/ch |
| Analog Input Absolute Accuracy | 313 μV |
| Number of Counters/Timers | 4 |
| Number of Analog Output Channels | 4 |
| Maximum Analog Update Rate | 3.3 MS/s/ch |
| Bus Connector | PXI Express |
| Number of Bidirectional Digital Channels | 48 |
| Electrical Signal Measured | Voltage |
| Analog Input FIFO Buffer Size | 12268 samples |
| Maximum Number of Differential Analog Input Channels | 16 |
| Reconfigurable | No |
| Number of Analog Input Channels | 16 |
| Maximum Digital Update Rate | 100 ns |
| Operating Temperature Range | 0 °C to 55 °C |
| Bus Connection | PXI Express |
| Digital I/O Logic Levels | 5 V |
| Front Connection Type | VHDCI(2) |
| Maximum Clock Rate | 10 MHz |
| Number of Digital Input Only Channels | 0 |
| Number of Digital Output Only Channels | 0 |
| Number of External Clock Inputs | 8 |
| Signaling Type | Single-Ended |
| Analog Input Voltage Range | -10 V to 10 V; -5 V to 5 V; -2 V to 2 V; -1 V to 1 V |
| Number of Voltage Output Channels | 4 |
| Analog Output Voltage Range | -10 V to 10 V |
| Analog Output Resolution | 16 bits |
| Product Description | PXIe-6378, 3.5 MS/s/ch Multifunction I/O Module (16 Simultaneous AI, 48 DIO, 4 AO) |
