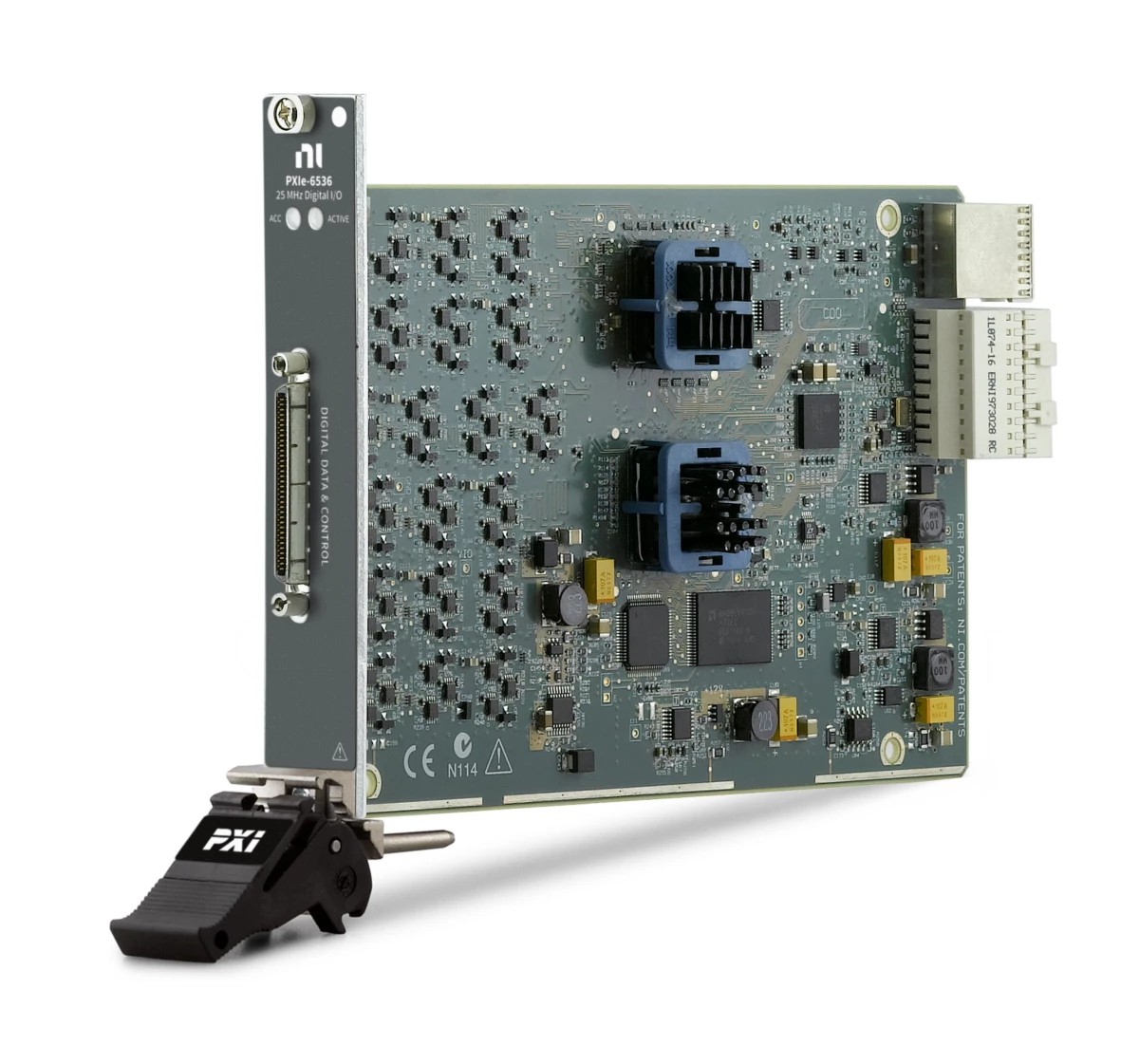

NI PXIe-6536 Digital I/O (25 MHz, 2.5/3.3/5 V, PXI Express)
32-Channel, 25 MHz, 100 MB/s PXI Digital I/O Module
The PXIe-6536 can continuously stream data over the PXI Express bus. It’s an ideal solution for interfacing and testing image sensors or display panels. The module is also well-suited for other common digital applications such as pattern I/O, change detection, protocol emulation, or other custom digital interfacing. It features selectable voltage levels and per-channel directional control of the digital lines.
Spesifikasi
| Part Number | 779988-01 |
|---|---|
| Bus Connector | PXI Express |
| Single-Ended Digital I/O Channel Current Drive | 32 mA |
| Digital I/O Logic Levels | 2.5 V#3.3 V#5 V TTL |
| Number of Bidirectional Digital Channels | 32 |
| Digital Input Voltage Range | -1 V to 6 V |
| Output Voltage Range | 0 V to 5 V |
| Maximum Clock Rate | 25 MHz |
| Signaling Type | Single-Ended |
| Reconfigurable | Yes |
| Bus Connection | PXI Express |
| Front Connection Type | VHDCI(1) |
| Number of External Clock Inputs | 2 |
| Supported Hardware Platform | PXI |
| Digital I/O Termination | 50 kOhm |
| Maximum Acquisition Rate | 25 MB/s |
| Maximum Generation Rate | 25 MB/s |
| Maximum Data Rate | 25 MB/s |
| Module Width | 1 |
| Product Description | NI PXIe-6536 Digital I/O (25 MHz, 2.5/3.3/5 V, PXI Express) |
