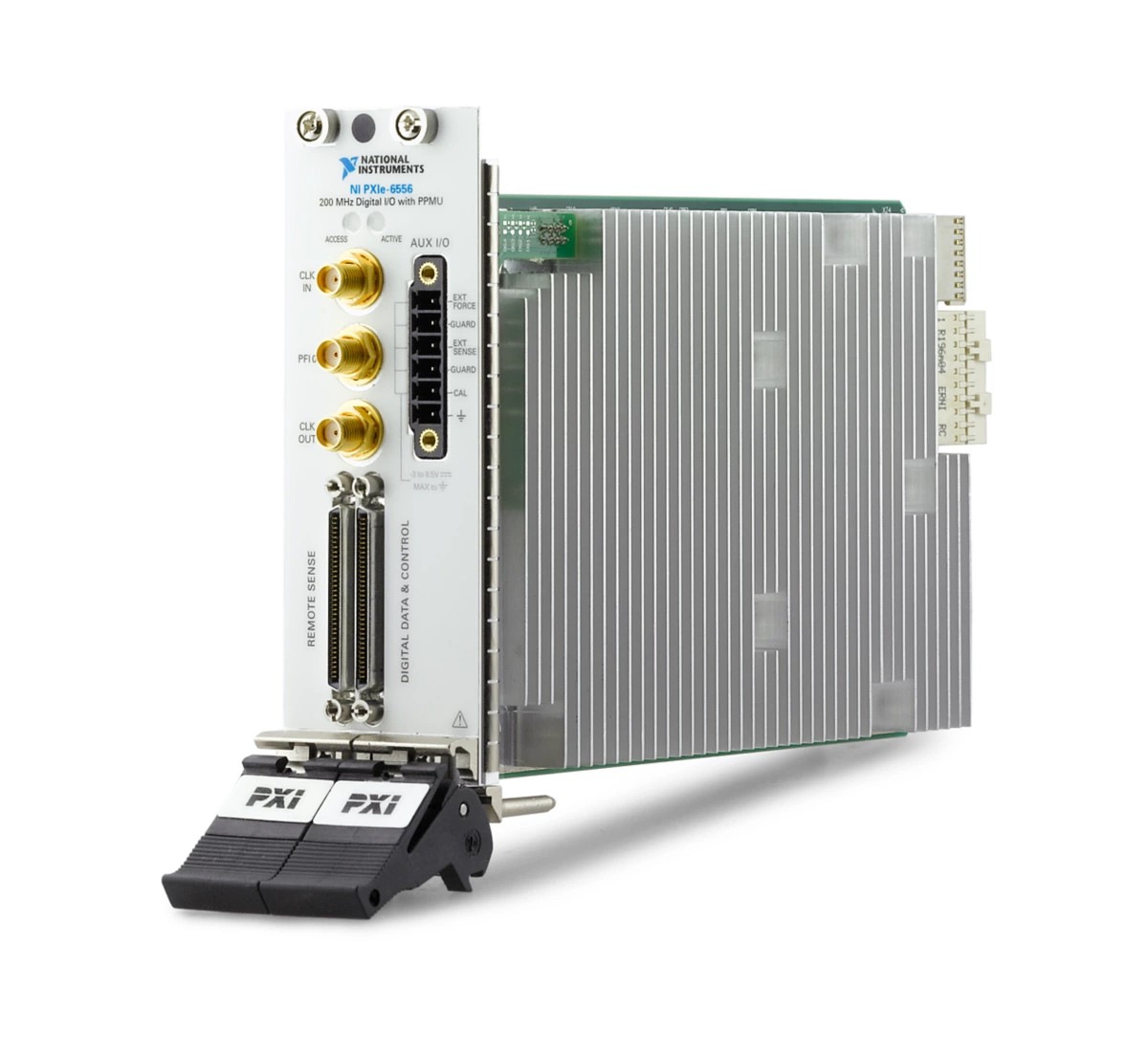

NI PXIe-6556 200 MHz, 8 Mb/ch Dig Wfm; with Enhanced PPMU
200 MHz, 24-Channel, Onboard PPMU, Active Load PXI Digital Waveform Instrument
The PXIe-6556 is a digital waveform generator and analyzer for interfacing, characterization, and DC parametric testing with 24 single-ended digital pins. The device is capable of sampling digital waveforms at up to 200 MHz and interfacing with user-programmable voltage levels. The PXIe-6556 also features hardware comparison for bit-error testing, DC voltage and current parametric measurements, and per-pin advanced digital timing features. Additionally, the PXIe-6556 can be configured as an active load and has external SMU connectivity for high-precision DC measurements.
Model & Varian
| Model | Part Number | Onboard Memory | Product Description |
|---|---|---|---|
| PXIe-6556 | 781949-01 | 8 Mbit/ch | NI PXIe-6556 200 MHz, 8 Mb/ch Dig Wfm; with Enhanced PPMU |
| PXIe-6556 | 781949-02 | 64 Mbit/ch | NI PXIe-6556 200 MHz, 64 Mb/ch Dig Wfm; with Enhanced PPMU |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Part Number | 781949-01 |
|---|---|
| Active Load | Yes |
| Number of Bidirectional Digital Channels | 24 |
| Logic Levels And Range | Programmable#-2.0V - 7.0V#-2.0V - 7.0V |
| Supports Hardware Compare | Yes |
| Onboard Memory | 8 Mbit/ch |
| Supports PMU | Yes |
| Signaling Type | Single-Ended |
| Supported Hardware Platform | PXI |
| Bus Connection | PXI Express |
| Digital I/O Termination | 50 kOhm |
| Digital I/O Logic Levels | Programmable |
| Output Voltage Range | -2 V to 7 V |
| Maximum Clock Rate | 200 MHz |
| Module Width | 2 |
| Product Description | NI PXIe-6556 200 MHz, 8 Mb/ch Dig Wfm; with Enhanced PPMU |
