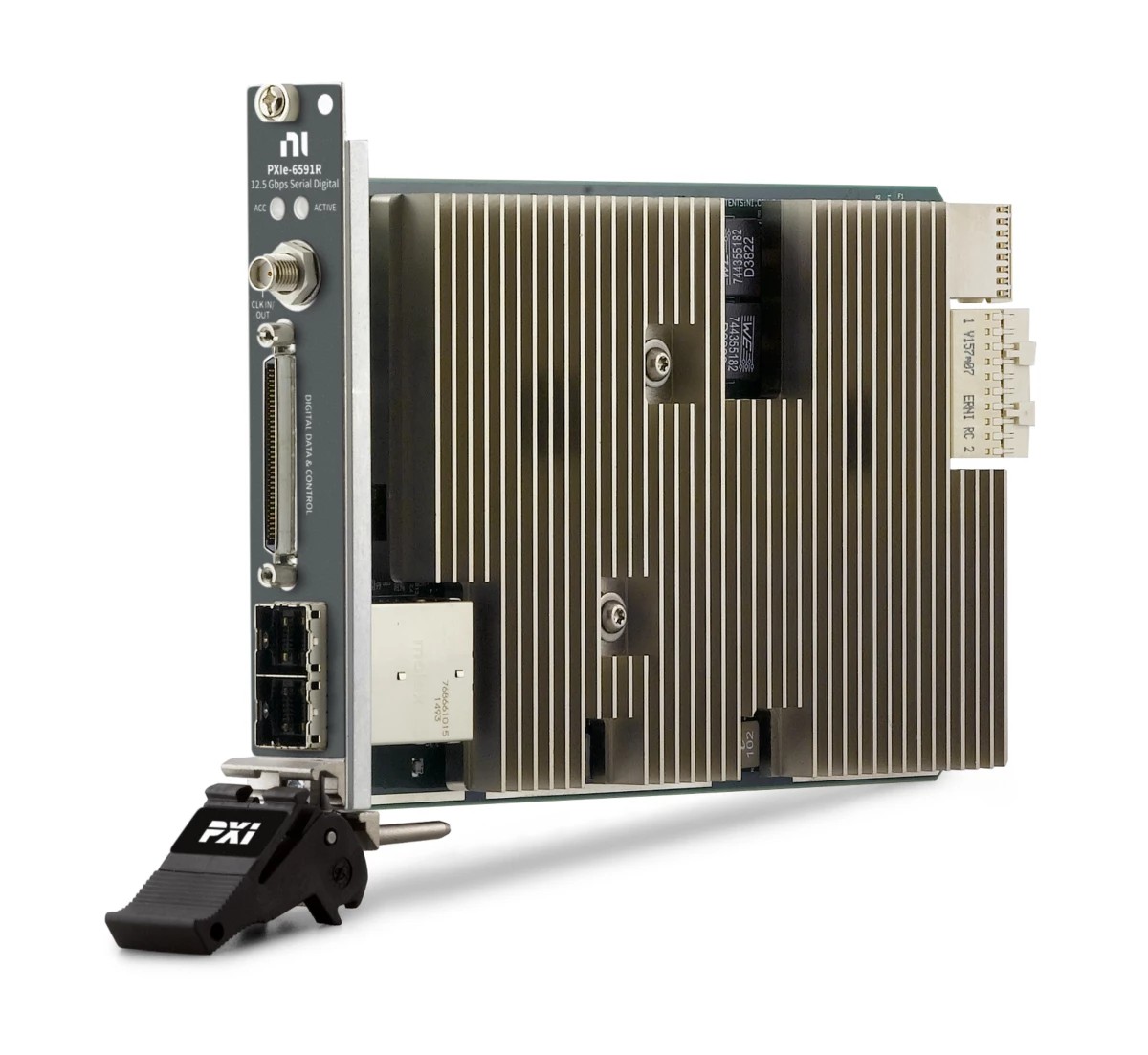

NI PXIe-6591R High-speed Serial Instrument (12.5 Gbps)
PXIe, 12.5 Gbps, 8-Channel PXI High-Speed Serial Instrument
The PXIe-6591 is designed for engineers who need to validate, interface through, and test serial protocols. It includes a Xilinx Kintex-7 FPGA to implement various high-speed serial protocols, and it is programmable with the LabVIEW FPGA Module for maximum application-specific customization and reuse.
The PXIe-6591 takes advantage of FPGA multigigabit transceivers and up to eight TX and RX lanes. In addition to high-speed serial lanes, the PXIe-6591 features digital I/O signals that support multiple logic families with per line, per cycle direction control.
Spesifikasi
| Part Number | 783638-01 |
|---|---|
| Number of Bidirectional Digital Channels | 8 |
| Maximum Data Rate | 12.5 Gbits/s |
| Dynamic RAM (DRAM) | 2 GB |
| PXI Backplane Link | PCI-Express Gen2 x 8 |
| FPGA | Kintex-7 410T |
| Operating Temperature Range | 0 °C to 45 °C |
| Front Connection Type | VHDCI(1)#SMA(1)#Mini-SAS HD(2) |
| Isolation Type | None |
| Number of Serial Channels | 8 |
| Supported Hardware Platform | PXI |
| Reconfigurable | Yes |
| Supports Peer To Peer Streaming | Yes |
| Bus Connection | PXI Express |
| Digital I/O Termination | 50 kOhm |
| Digital I/O Logic Levels | 1.2 V#1.5 V#1.8 V#2.5 V#3.3 V |
| Output Voltage Range | 0 V to 3.3 V |
| Maximum Clock Rate | 500 MHz |
| Module Width | 1 |
| Number of External Clock Inputs | 1 |
| Signaling Type | Single-Ended |
| Auxiliary I/O | 4 HSS#20 GPIO |
| Block RAM (BRAM) | 28.6 Mbit |
| DSP Slices | 1540 |
| Product Description | NI PXIe-6591R High-speed Serial Instrument (12.5 Gbps) |
