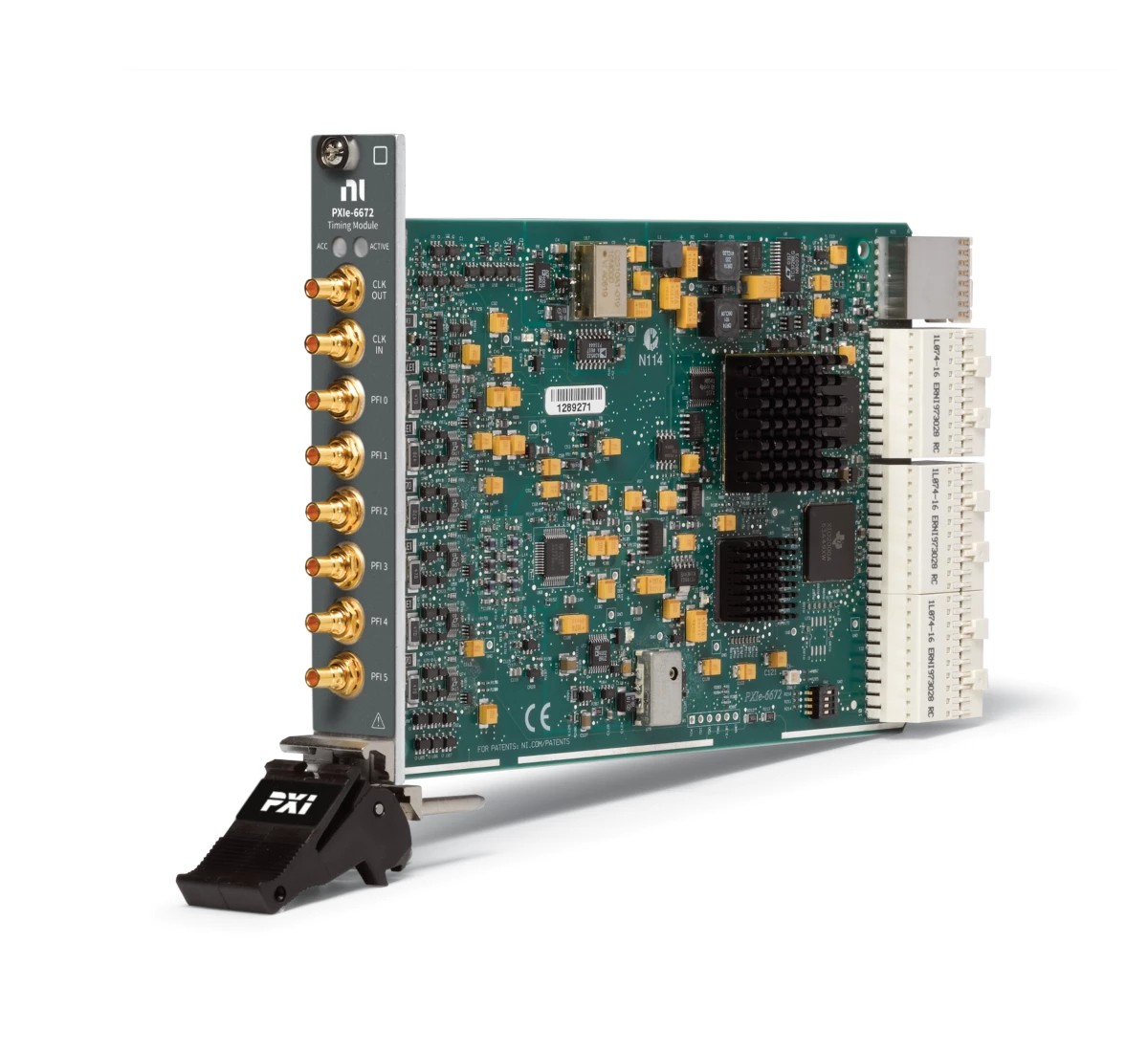

NI PXIe-6672 Timing and Synchronization Module with TCXO
The PXIe-6672 is a system timing controller module.
The PXIe-6672 is a system timing controller module. It can drive the PXI star trigger lines, import and export PXI backplane clocks and triggers, generate a high-resolution direct digital synthesis (DDS) clock, and generate a high-stability temperature-compensated crystal oscillator (TCXO) 10 MHz Reference Clock for instrumentation. The PXIe-6672 allows you to synchronize multiple PXI Express systems, synchronize a PXI Express system with external instruments and equipment, and increase the accuracy of instruments within a PXI Express system.
Spesifikasi
| Part Number | 780063-01 |
|---|---|
| Bus Connector | PXI Express System Timing |
| Onboard Clock Type | TCXO |
| Onboard Clock Accuracy | 3.5 ppm |
| Backplane Clock Override | Yes |
| Clock Import | Yes |
| Clock Export | Yes |
| Trigger Access | PXI_STAR#PXI_TRIG |
| Product Description | NI PXIe-6672 Timing and Synchronization Module with TCXO |
