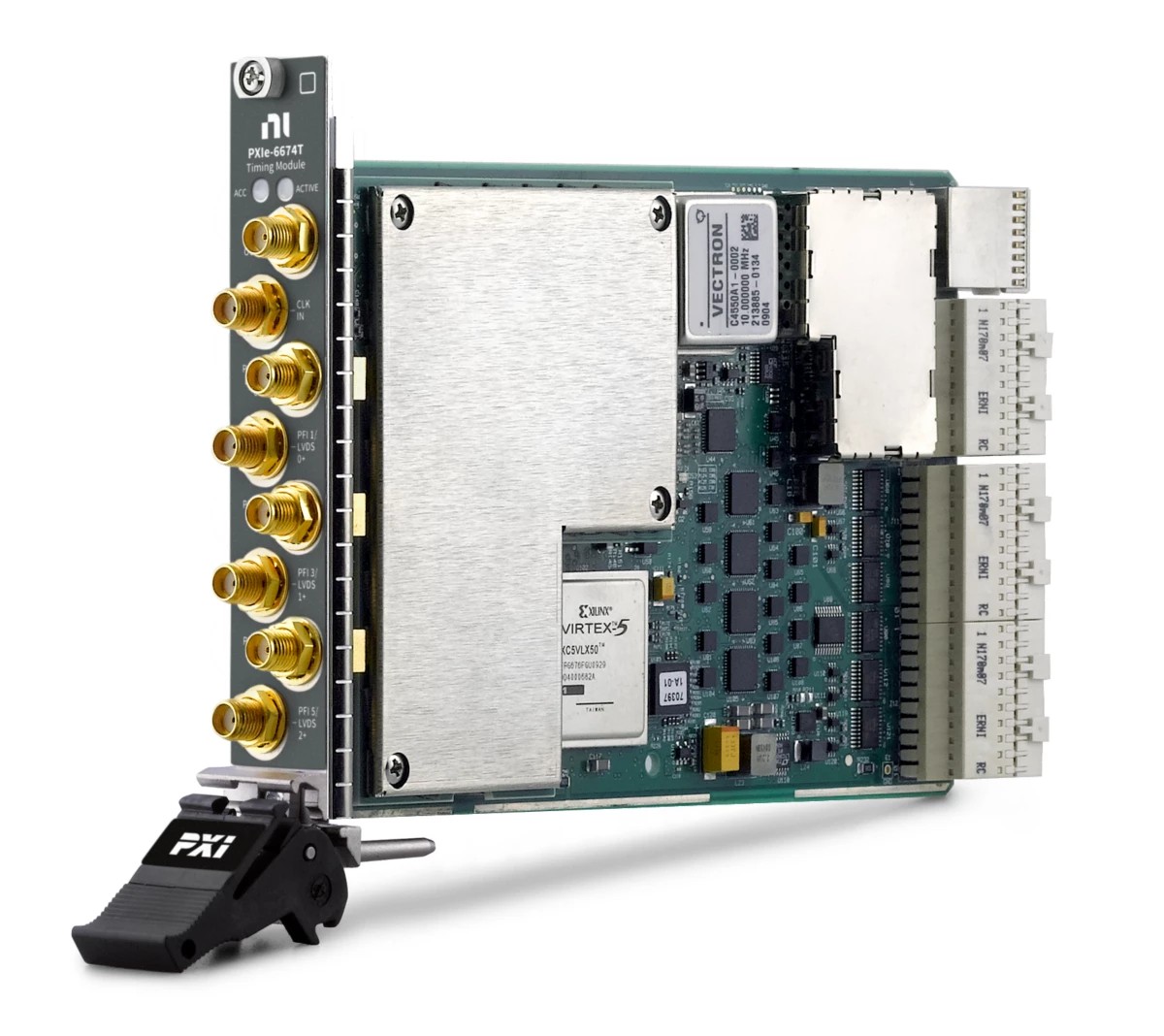

NI PXIe-6674T Timing and Synchronization Module with OCXO
The PXIe-6674T generates and routes clocks and triggers between devices in a PXI Express chassis as well as to other PXI and PXI Express chassis or third-party instrumentation.
The PXIe-6674T generates and routes clocks and triggers between devices in a PXI Express chassis as well as to other PXI and PXI Express chassis or third-party instrumentation. The PXIe-6674T unlocks the advanced low-voltage differential signaling (LVDS) trigger signals PXIe-DStarA, PXIe-DStarB, and PXIe-DStarC, on PXI Express while fully supporting the PXI trigger lines. The PXIe-6674T can generate two types of clock signals: a highly stable 10 MHz clock based on an onboard precision oven-controlled crystal oscillator (OCXO) reference and a second clock from the direct digital synthesis (DDS) clock generation circuit.
Spesifikasi
| Part Number | 781037-01 |
|---|---|
| Bus Connector | PXI Express System Timing |
| Onboard Clock Type | OCXO |
| Onboard Clock Accuracy | 80 ppb |
| Backplane Clock Override | Yes |
| Clock Import | Yes |
| Clock Export | Yes |
| Trigger Access | PXI_DSTAR#PXI_STAR#PXI_TRIG |
| Product Description | NI PXIe-6674T Timing and Synchronization Module with OCXO |
