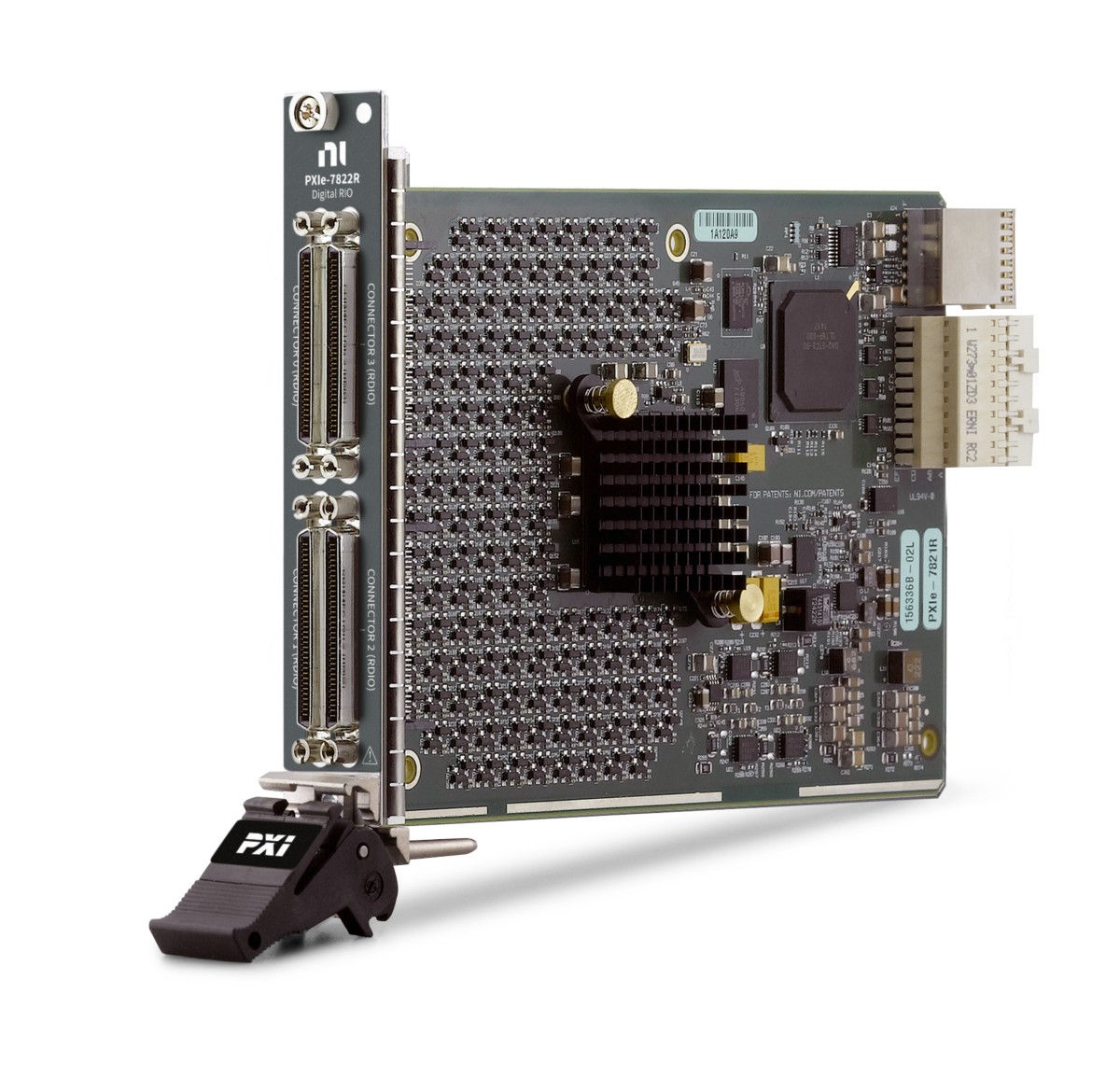

PXIe-7822R R Series Digital I/O Kintex-7 325T with DRAM
Kintex 7 325T FPGA, 128 DIO, 512 MB DRAM, PXI Digital Reconfigurable I/O Module
The PXIe-7822 is a reconfigurable I/O (RIO) device that features a user-programmable FPGA for onboard processing and flexible I/O operation. With LabVIEW FPGA, you can individually configure the digital lines as inputs, outputs, counter/timers, PWM, encoder inputs, or specialized communication protocols. You can also program custom onboard decision making that executes with hardware-timed speed and reliability. Each line offers software-selectable logic levels. The PXIe-7822 supports peer-to-peer streaming for direct data transfer between PXI Express modules.
The PXIe-7822 is well-suited for a wide variety of applications, such as high-speed waveform generation, sensor simulation, hardware-in-the-loop (HIL) test, bit error rate test, and other applications that require precise timing and control.
Spesifikasi
| Part Number | 783486-01 |
|---|---|
| Bus Connector | PXI Express |
| Maximum Clock Rate | 80 MHz |
| Number of Bidirectional Digital Channels | 128 |
| Digital I/O Logic Levels | 1.2 V#1.5 V#1.8 V#2.5 V#3.3 V |
| Dynamic RAM (DRAM) | 512 MB |
| Number of External Clock Inputs | 4 |
| FPGA | Kintex-7 325T |
| Supports Peer To Peer Streaming | Yes |
| Reconfigurable | Yes |
| Bus Connection | PXI Express |
| Front Connection Type | VHDCI(4) |
| Signaling Type | Single-Ended |
| Supported Hardware Platform | PXI |
| Digital I/O Termination | 52 Ohm |
| Output Voltage Range | 0 V to 3.3 V |
| Maximum Acquisition Rate | 80 MHz |
| Maximum Generation Rate | 80 MHz |
| Maximum Data Rate | 80 MHz |
| Module Width | 1 |
| Onboard Memory | 512 MB |
| Supports Hardware Compare | No |
| Product Description | PXIe-7822R R Series Digital I/O Kintex-7 325T with DRAM |
