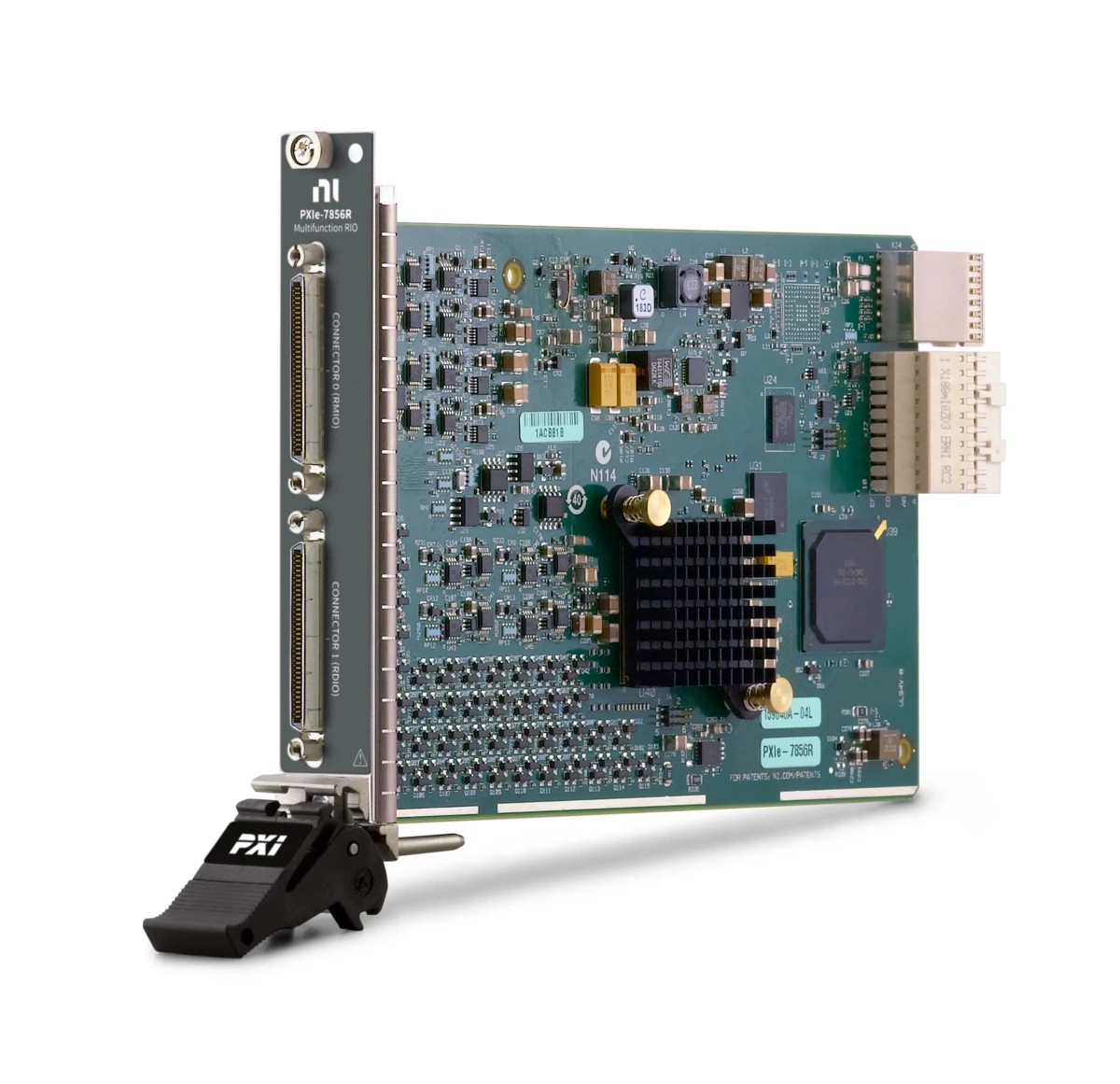

PXIe-7856R R Series Multifunction I/O Kintex-7 160T
PXIe, Kintex-7 160T FPGA, 1 MS/s, PXI Multifunction Reconfigurable I/O Module
The PXIe-7856 features a user-programmable FPGA for high-performance onboard processing and direct control over I/O signals to ensure complete flexibility of system timing and synchronization. You can customize these devices with the LabVIEW FPGA Module to develop applications requiring precise timing and control such as hardware-in-the-loop testing, custom protocol communication, sensor simulation, and high-speed control.
The PXIe-7856 features a dedicated A/D converter (ADC) per channel for independent timing and triggering. This design offers specialized functionality such as multirate sampling and individual channel triggering, which are outside the capabilities of typical data acquisition hardware. The PXIe-7856 also includes peer-to-peer streaming for direct data transfer to other PXI Express modules.
Spesifikasi
| Part Number | 784145-01 |
|---|---|
| Maximum Sample Rate | 1 MS/s |
| Bus Connector | PXI Express |
| Maximum Clock Rate | 80 MHz |
| Number of Bidirectional Digital Channels | 48 |
| Digital I/O Logic Levels | 1.2 V#1.5 V#1.8 V#2.5 V#3.3 V |
| Dynamic RAM (DRAM) | 0 MB |
| FPGA | Kintex-7 160T |
| Analog Input Voltage Range | -1 V to 1 V; -2 V to 2 V; -5 V to 5 V; -10 V to 10 V |
| Supports Peer To Peer Streaming | Yes |
| Number of Analog Input Channels | 8 |
| Number of Analog Output Channels | 8 |
| Supported Hardware Platform | PXI |
| Reconfigurable | Yes |
| Maximum Digital Update Rate | 12.5 ns |
| Maximum Analog Update Rate | 1 MS/s |
| Analog Output Voltage Range | -10 V to 10 V |
| Simultaneous Sampling | Yes |
| Analog Input Absolute Accuracy | 2.28 mV |
| Conformal Coated | No |
| Output Voltage Range | 0 V to 3.3 V |
| Enclosed | Yes |
| Front Connection Type | VHDCI(2) |
| Number of External Clock Inputs | 1 |
| Signaling Type | Single-Ended |
| Maximum Number of Single-Ended Analog Input Channels | 8 |
| Maximum Number of Differential Analog Input Channels | 8 |
| Analog Input Resolution | 16 bits |
| Number of Voltage Output Channels | 8 |
| Analog Output Resolution | 16 bits |
| Operating Temperature Range | 0 °C to 55 °C |
| Electrical Signal Measured | Voltage |
| Supported Power Input | Bus Powered |
| Product Description | PXIe-7856R R Series Multifunction I/O Kintex-7 160T |
