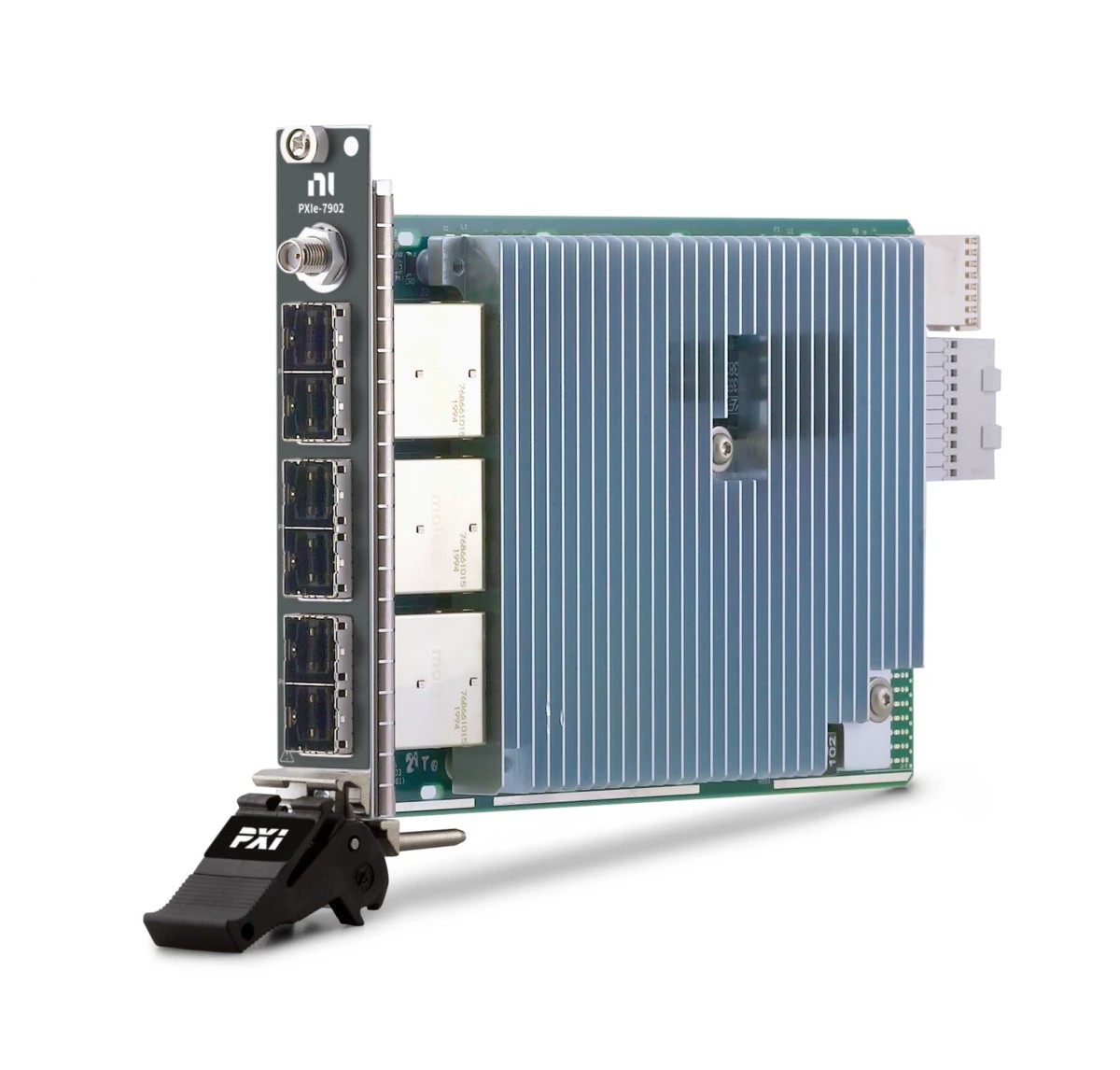

PXIe-7902 High-speed Serial Instrument (12.5 Gbps)
PXIe, 12.5 Gbps, 24-Channel PXI High-Speed Serial Instrument
The PXIe-7902 is designed for engineers who need high-performance FPGA co-processing capabilities or who need to validate, interface through, and test serial protocols. It includes a Xilinx Virtex-7 FPGA to implement various high-speed serial protocols, and it is programmable with the LabVIEW FPGA Module for maximum application-specific customization and reuse. The PXIe-7902 takes advantage of FPGA multigigabit transceivers to deliver 24 TX and RX serial lanes.
Spesifikasi
| Part Number | 784232-01 |
|---|---|
| Number of Bidirectional Digital Channels | 24 |
| Maximum Data Rate | 12.5 Gbits/s |
| Dynamic RAM (DRAM) | 2 GB |
| PXI Backplane Link | PCI-Express Gen2 x 8 |
| FPGA | Virtex-7 485T |
| Operating Temperature Range | 0 °C to 55 °C |
| Front Connection Type | SMA(1)#Mini-SAS HD(6) |
| Isolation Type | None |
| Number of Serial Channels | 24 |
| Supported Hardware Platform | PXI |
| Reconfigurable | Yes |
| Supports Peer To Peer Streaming | Yes |
| Bus Connection | PXI Express |
| Maximum Clock Rate | 300 MHz |
| Module Width | 1 |
| Number of Digital Input Only Channels | 0 |
| Number of Digital Output Only Channels | 0 |
| Number of External Clock Inputs | 1 |
| Block RAM (BRAM) | 37.1 Mbit |
| DSP Slices | 2800 |
| Product Description | PXIe-7902 High-speed Serial Instrument (12.5 Gbps) |
