NI

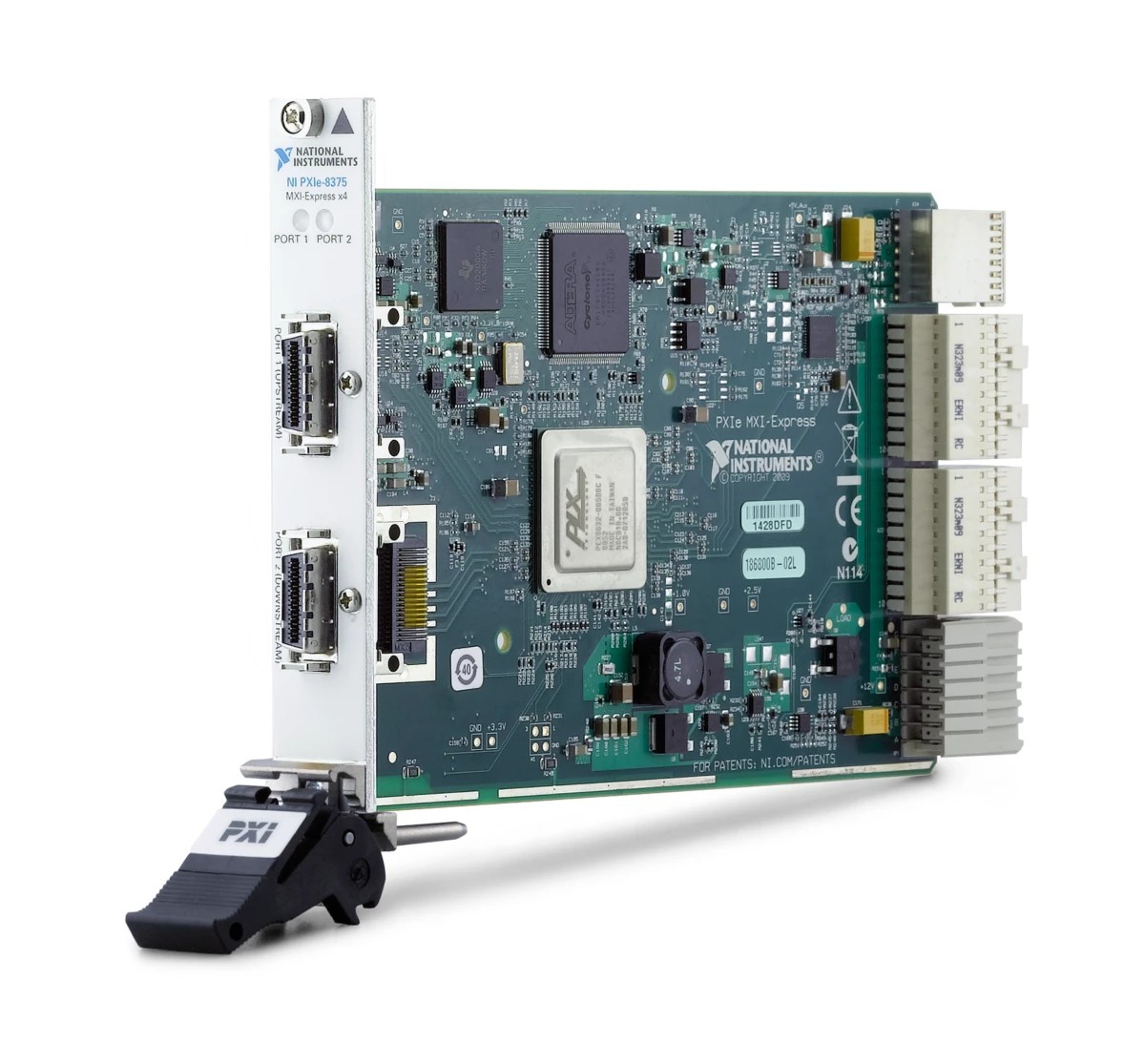

NI PXIe-8375 x4 MXI-ExpressInterface w/Conn for Fiber Optic Cable
PXIe, x4, MXI-Express Interface with Connector for Fiber Cable, PXI Remote Control Module
The PXIe-8375 allows you to control PXI and CompactPCI systems from your PC using a fully transparent MXI-Express link. The PXI-8366 is installed in a PXI chassis and uses a PCI Express-to-PCI bridge to interface with an installed PCIe-8375 through a copper, x1 MXI-Express cable. The fiber-optic cabling of the PXIe-8375 provides electrical isolation between the PC and PXI chassis, as well as cabling up to 200 m per link.
Spesifikasi
| Part Number | 781040-01 |
|---|---|
| Supported Cable Type | Fiber Optic |
| Supports Daisy Chaining | Yes |
| Bus Connection | PXI Express Controller |
| MXI Communication Level | MXI-Express x4 |
| MXI Bandwidth | 1 GB/s |
| Number of MXI Ports | 2 |
| Operating Temperature Range | 0 °C to 55 °C |
| Product Description | NI PXIe-8375 x4 MXI-ExpressInterface w/Conn for Fiber Optic Cable |
