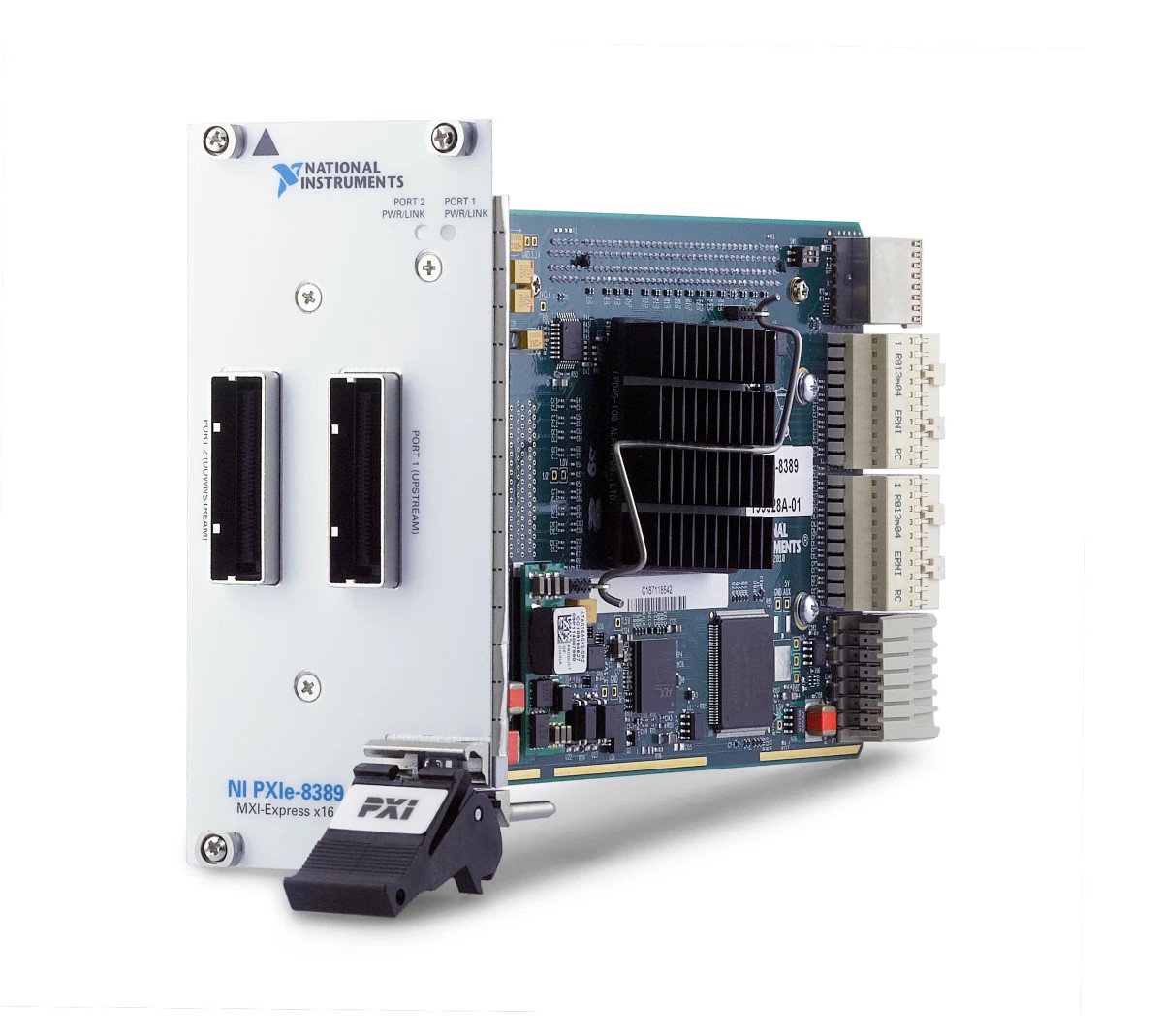

NI PXIe-8389, x16 ,2 Port, MXI-Express for PXI Express Interface
PXIe, x16, MXI-Express Daisy-Chain Interface, PXI Remote Control Module
The PXIe-8389 allows you to control PXI and CompactPCI systems from your PC using a fully transparent MXI-Express link. It is installed in a PXI chassis and uses a PCI Express-to-PCI bridge to interface with an installed PCIe-8389 through a copper, x1 MXI-Express cable. The PXIe-8389 also supports multichassis configurations for PXI Express systems.
Spesifikasi
| Part Number | 781761-01 |
|---|---|
| Supported Cable Type | Copper |
| Supports Daisy Chaining | Yes |
| Bus Connection | PXI Express Controller |
| MXI Communication Level | MXI-Express Gen2 x16 |
| MXI Bandwidth | 8 GB/s |
| Number of MXI Ports | 2 |
| Operating Temperature Range | 0 °C to 55 °C |
| Product Description | NI PXIe-8389, x16 ,2 Port, MXI-Express for PXI Express Interface |
