Siglent CP/CPL/SCP Series Current Probe DC to 100 MHz | Probe Arus

SIGLENT’s current probe has excellent performance, its bandwidth covers DC ~ 100MHz, and it can accurately capture all kinds of signals.

Available models include SCP5500, SCP5150, SCP5030A, SCP5030, CPL5100, CP6500, CP6150, CP6030A, CP6030, CP4070A, CP4070, CP4050, CP4020.

Konsultasi via WhatsApp via Email

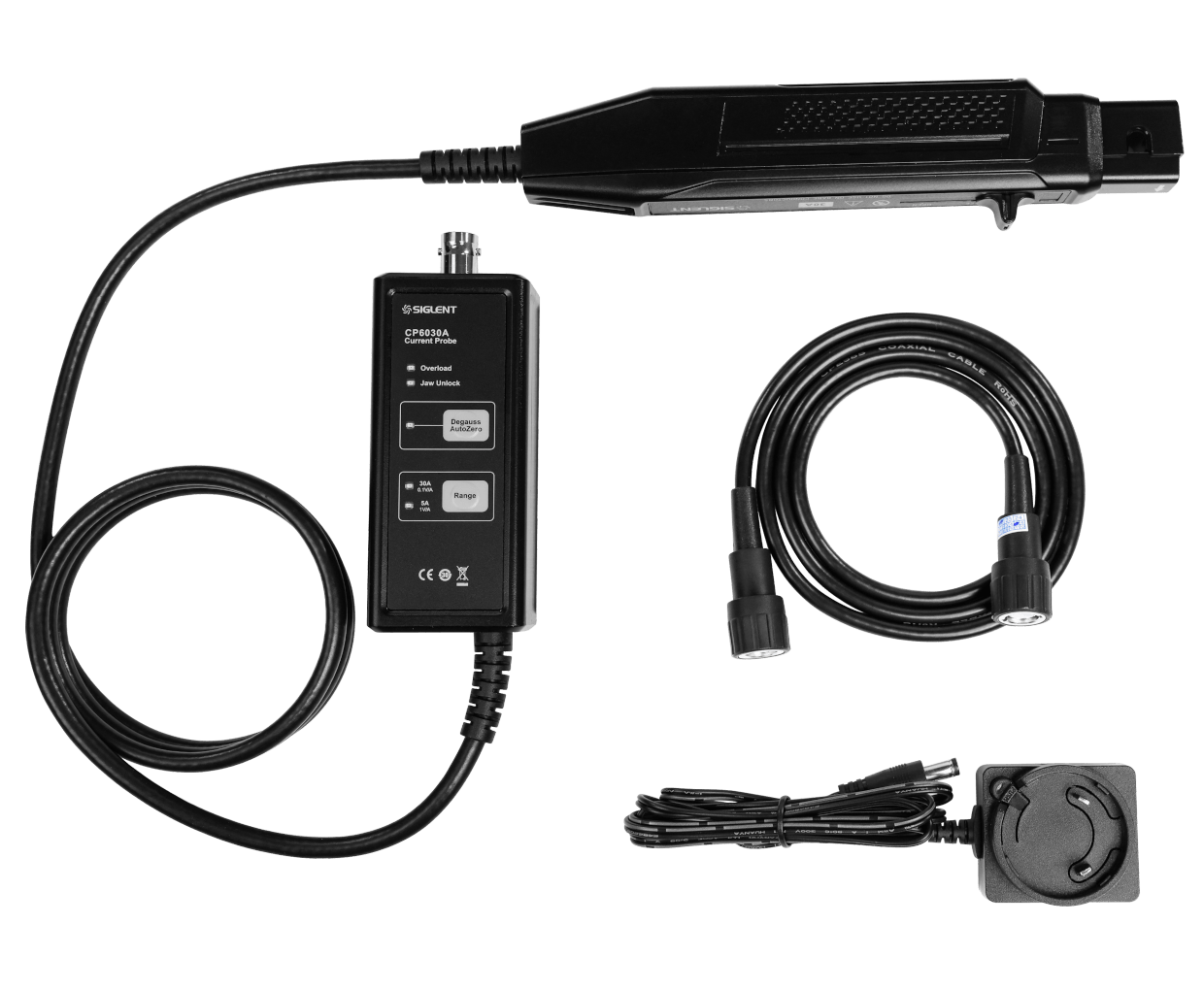

Siglent Current Probe Osiloskop — featured product image

SIGLENT’s current probe has excellent performance, its bandwidth covers DC ~ 100MHz, and it can accurately capture all kinds of signals. The probe comes standard with BNC or SAPBus interface, which supports external power supply or direct power supply through oscilloscope, providing flexible connection and power supply options. In terms of safety and reliability, the probe provides a variety of range options to meet different measurement requirements, while the minimum rise time does not exceed 3.5ns, and the best accuracy is 1%, which ensures the accurate and rapid response of the signal, and is equipped with a variety of jaw diameters to adapt to different test scenarios.

Wide range

With its wide bandwidth, SIGLENT’s current probe can accurately capture all kinds of signals from DC to high-frequency AC, showing excellent measurement ability. Its switchable range design is not only suitable for μA-level small current detection, but also can effectively deal with the impact protection of large current, ensuring the flexibility and accuracy of measurement. At the same time, it supports automatic degaussing, zero setting and acousto-optic over-current alarm function, and BNC or SAPBus interface is standard to ensure compatibility with various oscilloscopes, providing reliable solutions for current analysis in various fields.

Model & Varian

Perbandingan Model & Varian
Model	Bandwidth	Max effective Value of AC（RMS）	Peak Value	Range	Rise Time	Interface
SCP5500	DC~2 MHz	500 Arms	750 A	75 A (0.1 V/A) 500 A (0.01 V/A)	≤175 ns	SAPBus
SCP5150	DC~12 MHz	150 Arms	300 A	30 A (0.1 V/A) 150 A (0.01 V/A)	≤29 ns	SAPBus
SCP5030A	DC~100 MHz	30 Arms	50 A	5 A (1 V/A) 30 A (0.1 V/A)	≤3.5 ns	SAPBus
SCP5030	DC~50 MHz	30 Arms	50 A	5 A (1 V/A) 30 A (0.1 V/A)	≤7 ns	SAPBus
CPL5100	DC~600 kHz	/	100 A	10 A (0.1 V/A) 100 A (0.01 V/A)	≤583 ns	BNC
CP6500	DC~5 MHz	500 Arms	750 A	75 A (0.1 V/A) 500 A (0.01 V/A)	≤70 ns	BNC
CP6150	DC~12 MHz	150 Arms	300 A	30 A (0.1 V/A) 150 A (0.01 V/A)	≤29 ns	BNC
CP6030A	DC~100 MHz	30 Arms	50 A	5 A (1 V/A) 30 A (0.1 V/A)	≤3.5 ns	BNC
CP6030	DC~50 MHz	30 Arms	50 A	5 A (1 V/A) 30 A (0.1 V/A)	≤7 ns	BNC
CP4070A	DC~300 kHz	70 Arms	200 A	100 mV/A 10 mV/A	1.2 μs	BNC
CP4070	DC~300 kHz	70 Arms	200 A	50 mV/A 5 mV/A	1.2 μs	BNC
CP4050	DC~1 MHz	50 Arms	140 A	500 mV/A 50 mV/A	0.35 μs	BNC
CP4020	DC~200 kHz	20 Arms	60 A	50 mV/A 5 mV/A	1.75 μs	BNC

Geser tabel ke samping untuk melihat semua spesifikasi →

Spesifikasi

Model Variants	SCP5500, SCP5150, SCP5030A, SCP5030, CPL5100, CP6500, CP6150, CP6030A, CP6030, CP4070A, CP4070, CP4050, CP4020
Bandwidth	DC~2 MHz; DC~12 MHz; DC~100 MHz; DC~50 MHz; DC~600 kHz; DC~5 MHz; DC~300 kHz; DC~1 MHz
Max effective Value of AC（RMS）	500 Arms; 150 Arms; 30 Arms; /; 70 Arms; 50 Arms; 20 Arms
Peak Value	750 A; 300 A; 50 A; 100 A; 200 A; 140 A; 60 A
Range	75 A (0.1 V/A) 500 A (0.01 V/A); 30 A (0.1 V/A) 150 A (0.01 V/A); 5 A (1 V/A) 30 A (0.1 V/A); 10 A (0.1 V/A) 100 A (0.01 V/A); 100 mV/A 10 mV/A; 50 mV/A 5 mV/A; 500 mV/A 50 mV/A
Rise Time	≤175 ns; ≤29 ns; ≤3.5 ns; ≤7 ns; ≤583 ns; ≤70 ns; 1.2 μs; 0.35 μs
Interface	SAPBus; BNC
